Conveyor with Strip Brushes
Search for оther еxamples

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Dimensional Drawing

■Brush Body
Implanted Roll Brush Dimensional Drawing 1
Implanted Roll Brush Dimensional Drawing 2

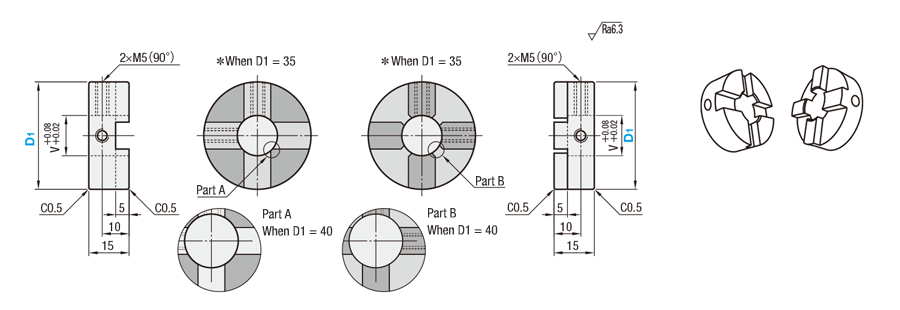

■Dedicated Shaft Collar
■Dedicated Shaft Collar Construction Diagram
Fixed by interlocking concave-convex surfaces.

[ ! ] Use the brush at less than 1,000 rpm (the maximum rotation for URBSMF is 400).
Note that maximum rotational speed varies depending on the mounting method, the brush length, the brush O.D. or the number of connected brush.

TypeType[M] MaterialCritical Temperature
(Reference Value)
Brush FilamentPipe
Brush BodyFixedURBSNNylon 6PP100°C
ConfigurableURBSNFNylon 66 (Filament Dia. No. 0.1)
Nylon 6 (Wire Dia. No. 0.2 to 0.5)
URBSMFConductive Nylon Mono-Eight
Dedicated Shaft CollarURBSSCEN 1.4301 Equiv.
[ ! ] Shaft collar is not included.
TypeFilament Dia.d
URBSNF0.10.1
0.20.21
0.30.295
0.50.535
URBSMF0.150.15
0.30.3

Specification Table

■Brush Fixed
Part Number—L—Filament Dia.
URBSN80—50—0.3



■Dedicated Shaft Collar
Part Number
URBSSC35



■Brush Configurable
Part Number—D—L—Filament Dia.
URBSNF40—105—50—0.5



■Brush Fixed
Part NumberL
Selection		Filament Dia.
Selection		dD1VHProper Motor Power
(Unit: kW) [ ! ] Reference Values
TypeDFilament Dia.d
URBSN8050

100		0.30.30.295351522.50.4
100402030.00.75
150402055.0



■Brush Configurable
Part NumberD
5 mm Increments		L
Selection		Filament Dia.
Selection		VH
(H = (D−D1)/2)		Proper Motor Power
(Unit: kW) [ ! ] Reference Values
TypeD1
URBSNF3560 to 80500.11512.5 to 22.50.4
0.2
4070 to 1501000.32010 to 550.75
0.5
URBSMF3560 to 80500.151512.5 to 22.50.4
4070 to 1501000.32010 to 550.75


■Dedicated Shaft Collar (Concave-Convex at Both Sides, 2 pcs.)　

Part NumberVAccessory
TypeD1
URBSSC3515Hex Socket Set Screw (Flat End) MSSFS5-8
(EN 1.4301 Equiv.)
4020

[ ! ] Select the same size as the brush body D1 .



Product code
Mass (g)
(Reference Value)
URBSN80-50-0.3
48
URBSN100-50-0.3
58
URBSN150-50-0.3
72
URBSN80-100-0.3
101
URBSN100-100-0.3
124
URBSN150-100-0.3
157
■Brush Configurable
Part NumberDLFilament Dia.
TypeD10.10.20.30.5
URBSNF3560 to 805011,29011,18011,03011,130
4070 to 15012,02011,92011,76011,870
3560 to 8010012,90012,80012,64012,750
4070 to 15013,93013,83013,67013,780



Part NumberDLFilament Dia.
TypeD10.150.3
URBSMF3560 to 805014,49014,810
4070 to 15014,78015,100
3560 to 8010016,28016,590
4070 to 15017,71018,030

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...

Plug-in is required for 3D Preview

CAD Download

Data to be displayed
30
45
60
  1. 1
Part Number
URBSMF35-[60-80/5]-[50,​100]-[0.15,​0.3]
URBSMF40-[70-150/5]-[50,​100]-[0.15,​0.3]
URBSN80-50-0.3
URBSN80-100-0.3
URBSN100-50-0.3
URBSN100-100-0.3
URBSN150-50-0.3
URBSN150-100-0.3
URBSNF35-[60-80/5]-[50,​100]-[0.1,​0.2,​0.3,​0.5]
URBSNF40-[70-150/5]-[50,​100]-[0.1,​0.2,​0.3,​0.5]
URBSSC35
URBSSC40
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSType Brush Filament Material Shaft Dia. D1
(Ø) 		Brush Dia. D
(mm) 		Overall Length L
(mm) 		Wire Dia. No. (d dimension) No. Selection

-

1 12 Days 10-Conductive Nylon Mono-Eight3560 ～ 8050 ～ 501000.15(0.15),0.3(0.3)0.15 ～ 0.3

-

1 12 Days 10-Conductive Nylon Mono-Eight4070 ～ 15050 ～ 501000.15(0.15),0.3(0.3)0.15 ～ 0.3

82.94 €

1 Available 5 Days 10-6 Nylon3580500.3(0.295)-

99.53 €

1 Available 5 Days 10-Filament Diameter No. 1 is Nylon 6/6, The others are Nylon 635801000.3(0.295)-

86.54 €

1 Available 5 Days 10-6 Nylon40100500.3(0.295)-

103.85 €

1 Available 5 Days 10-Conductive Nylon Mono-Eight401001000.3(0.295)-

93.75 €

1 Available 5 Days 10-Filament Diameter No. 1 is Nylon 6/6, The others are Nylon 640150500.3(0.295)-

108.18 €

1 Available Same day

Stock

10-Conductive Nylon Mono-Eight401501000.3(0.295)-

-

1 12 Days 10-Filament Diameter No. 1 is Nylon 6/6, The others are Nylon 63560 ～ 8050 ～ 501000.1(0.1),0.2(0.21),0.3(0.295),0.5(0.535)0.1 ～ 0.5

-

1 12 Days 10-Filament Diameter No. 1 is Nylon 6/6, The others are Nylon 64070 ～ 15050 ～ 501000.1(0.1),0.2(0.21),0.3(0.295),0.5(0.535)0.1 ～ 0.5

69.10 €

1 Available 5 Days 10Dedicated Shaft Collar (Concave-Convex at Both Sides, 2 pcs.)-35----

71.51 €

1 Available 5 Days 10Dedicated Shaft Collar (Concave-Convex at Both Sides, 2 pcs.)-40----
