Roll Brush / Channel Roll Brush / Pitch Configurable
Click on this image to zoom in.
Click on this image to zoom in.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
BRUSNP20-[50,60,80,100]-[100,150,250,350]-[20-320/5]-[20,40]
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
| L | V |
| 100 | H9 |
| 150 | |
| 250 | |
| 350 | +0.1/0 |
| Type | [M]Brush Filament | [M]Pipe, Bushing Connecting Part |
| BRUSNP | Nylon 6 | EN 1.4301 Equiv. |
Specification Table
| Part Number | — | D | — | L | — | L1 | — | P |
| BRUSNP20 | — | 60 | — | 250 | — | 200 | — | 20 |
| Part Number | D Selection | L Selection | L1 5 mm Increments | P Selection | V | h | d | H | M | Proper Motor Power (Unit: kW) [ ! ] Reference Values | |
| Type | D1 | ||||||||||
| BRUSNP | 20 | 50 | 100 150 250 350 | 20 to 320 [ ! ]L1 ≤ L−30 | 20 40 | 12 | 5.5 | 0.3 | 13.5 | 4 | 0.4 |
| 60 | 14.5 | ||||||||||
| 80 | 23.5 | 0.75 | |||||||||
| 100 | 32.5 | ||||||||||
Alterations
| Alterations Code | Brush Trimming | Applicable conditions | Ordering example | ||||
| DC | Changes brush O.D. [Ordering Code]: DC85 5 mm Increments
| [ ! ]DC < D | BRUSNR20-80-150-100-DC75 |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| BRUSNP20-[50,60,80,100]-[100,150,250,350]-[20-320/5]-[20,40] |
| Part Number | Minimum order quantity | Volume Discount | RoHS | Overall Length L (mm) | Brush Length L1 (mm) | Brush O.D. D (mm) | Brush Pitch P (mm) | |
|---|---|---|---|---|---|---|---|---|
| 1 | 9 Days | 10 | 100 ～ 350 | 20 ～ 320 | 50 ～ 100 | 20 ～ 40 |
Loading...
Specifications / Overview
Brush's service life will vary depending on usage conditions and frequency. The filaments may break or fall out depending on usage condition. Do not unduly tug the filaments or disassemble the brush.
Maximum temp. limit for the filaments is 100°C. The filaments will melt and fall off at the temperature over 100°C.
Nylon 6 dissolves in strong hydrochloric acid, sulfuric acid, formic acid, and phenolic acid.
Brush press contact length should be 2 mm or less. Do not press further than necessary.
Use the brush at less than 1000 rpm.
Motor power values shown are experimental ones for reference only. Actual motor power needed may be larger depending on the way of brushing and the use environment.
■Precaution for Use and Storage
Beware of the deformation of the filaments in storage. If the brush is left in contact with workpiece while in storage, the filaments may be deformed permanently. Also avoid filament tips from contacts when storing brushes by themselves.
Dry before storage.
Remove any foreign objects from the brush.
Do not store in high temp. environment or near fire.

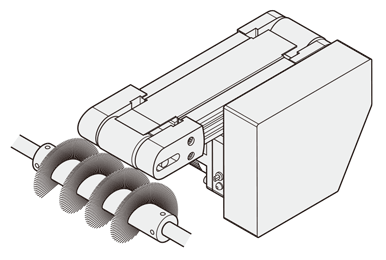

App. Example
Basic information
| Type | Roll Brush, Pitch Configurable Type | Brush Filament Material | 6 Nylon | Shaft Dia. D1(Ø) | 20 |
|---|
Configure
Basic Attributes
-
Overall Length L(mm)
-
Brush Length L1(mm)
-
Brush O.D. D(mm)
-
Brush Pitch P(mm)
-
Type
- BRUSNP
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 9 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
