Compact Trims / Plastic Cover Plates
Click on this image to zoom in.
Click on this image to zoom in.
- Promotional pricing
- Volume Discount
- Stock
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

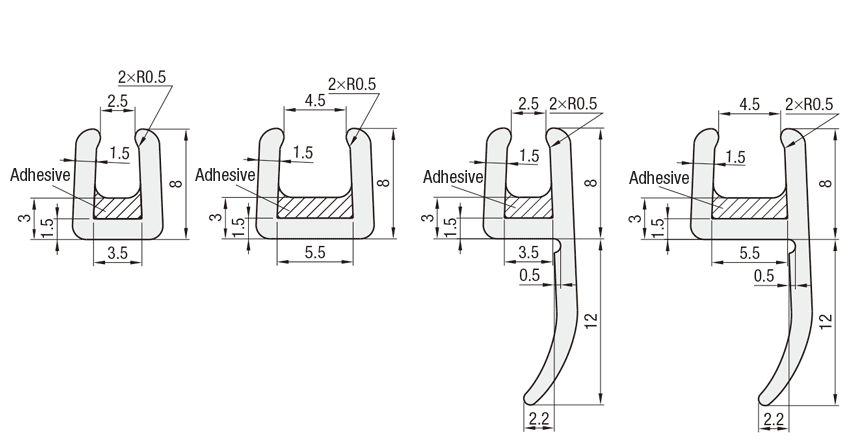

- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
CTRTT
CTRTTR
| Type | [M] Material | |
| Main Body | Adhesive | |
| CTRTT CTRTTR | Thermoplastic Elastomer (TPE) | Sealant |
| Item | TPE | Adhesive |
| Specific Gravity | 0.95 | — |
| Heat Resistance | +135°C | +88°C |
| Low Temp. Resistance | －60°C | －15°C |
| Compression Set | 15 to 25% | — |
Specification Table
| Part Number | — | Color | — | L |
| CTRTT3.0 | — | G | — | L1 |
| CTRTTR5.0 | — | Y | — | L3 |
| Part Number | Color | L Dimension Selection (m) | Applicable Plate Thickness | |
| Type | T | |||
| CTRTT | 3.0 | G (Gray) Y (Yellow) | L1 L3 L5 | 2.5 to 3.5 |
| 5.0 | 4.5 to 5.5 | |||
| CTRTTR | 3.0 | 2.5 to 3.5 | ||
| 5.0 | 4.5 to 5.5 | |||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Type | Color | Thickness T (mm) | Overall Length L (m) | |
|---|---|---|---|---|---|---|---|---|---|
5.65 € 2.37 € | 1 | Available |
Same day
Stock | 10 | For Resin Cover | G (Gray) | 3.0 | 1 | |
16.38 € | 1 | Available | 5 Days | 10 | For Resin Cover | G (Gray) | 3.0 | 3 | |
27.07 € 8.12 € | 1 | Available |
Same day
Stock | 10 | For Resin Cover | G (Gray) | 3.0 | 5 | |
5.65 € | 1 | Available | 5 Days | 10 | For Resin Cover | Y (Yellow) | 3.0 | 1 | |
16.38 € | 1 | Available | 5 Days | 10 | For Resin Cover | Y (Yellow) | 3.0 | 3 | |
27.07 € | 1 | Available | 5 Days | 10 | For Resin Cover | Y (Yellow) | 3.0 | 5 | |
6.30 € | 1 | Available | 5 Days | 10 | For Resin Cover | G (Gray) | 5.0 | 1 | |
18.26 € | 1 | Available | 5 Days | 10 | For Resin Cover | G (Gray) | 5.0 | 3 | |
30.23 € | 1 | Available | 5 Days | 10 | For Resin Cover | G (Gray) | 5.0 | 5 | |
6.30 € | 1 | Available |
Same day
Stock | 10 | For Resin Cover | Y (Yellow) | 5.0 | 1 | |
18.26 € | 1 | Available | 5 Days | 10 | For Resin Cover | Y (Yellow) | 5.0 | 3 | |
30.23 € | 1 | Available | 5 Days | 10 | For Resin Cover | Y (Yellow) | 5.0 | 5 | |
6.93 € | 1 | Available | 5 Days | 10 | With Lip for Resin Cover | G (Gray) | 3.0 | 1 | |
20.16 € | 1 | Available | 5 Days | 10 | With Lip for Resin Cover | G (Gray) | 3.0 | 3 | |
33.37 € | 1 | Available | 5 Days | 10 | With Lip for Resin Cover | G (Gray) | 3.0 | 5 | |
6.93 € | 1 | Available | 5 Days | 10 | With Lip for Resin Cover | Y (Yellow) | 3.0 | 1 | |
20.16 € | 1 | Available | 5 Days | 10 | With Lip for Resin Cover | Y (Yellow) | 3.0 | 3 | |
33.37 € | 1 | Available | 5 Days | 10 | With Lip for Resin Cover | Y (Yellow) | 3.0 | 5 | |
7.56 € | 1 | Available | 5 Days | 10 | With Lip for Resin Cover | G (Gray) | 5.0 | 1 | |
21.40 € | 1 | Available | 5 Days | 10 | With Lip for Resin Cover | G (Gray) | 5.0 | 3 | |
36.52 € | 1 | Available | 5 Days | 10 | With Lip for Resin Cover | G (Gray) | 5.0 | 5 | |
7.56 € | 1 | Available | 5 Days | 10 | With Lip for Resin Cover | Y (Yellow) | 5.0 | 1 | |
21.40 € | 1 | Available | 5 Days | 10 | With Lip for Resin Cover | Y (Yellow) | 5.0 | 3 | |
36.52 € | 1 | Available | 5 Days | 10 | With Lip for Resin Cover | Y (Yellow) | 5.0 | 5 |
Loading...
App. Example
CTRTT is attached on the panel edge
to prevent interference and alert a
collision.
CTRTTR is attached to the panel edge of one door. S
uitable for applications such as filling a gap with an
object and insulating from splash and sound.
CTRTT and CTRTTR are attached to the
panel edge of both doors to fill a gap
between panels.
CTRTTR is attached to the panel edge of both doors to fill a gap between panels.
(Either side can be opened first.)
Basic information
| Body Material | Thermoplastic Elastomer |
|---|
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Type
- For Resin Cover
- With Lip for Resin Cover
-
Color
- G (Gray)
- Y (Yellow)
-
Thickness T(mm)
-
Overall Length L(m)
-
Type
- CTRTT
- CTRTTR
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
