Conveyor Sensor Brackets / Post-Assembly Insertion Nuts For Sensors
Click on this image to zoom in.
Click on this image to zoom in.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

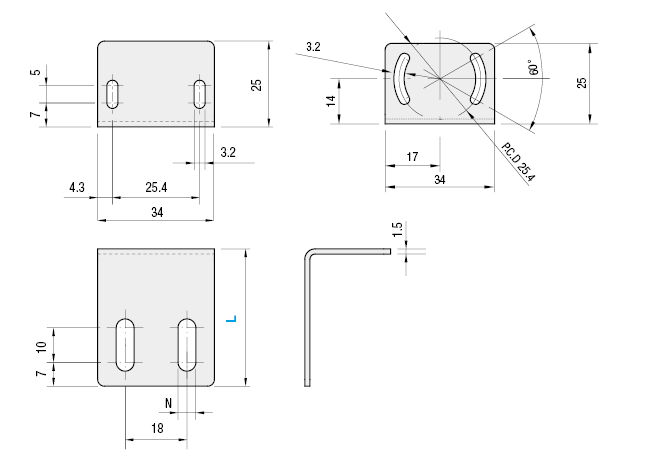

- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
BFCB (Straight Slotted Hole Type)
BFCBN (Arched Slotted Hole Type)
Specification Table
| Part Number | ||||
| Type | L | — | No. | |
| BFCB | 40 | — | 5 | |
| Part Number | N | ||
| Type | L | No. | |
| Straight Slotted Hole Type BFCB | 30 | 3 | 3.2 |
| 5 | 5.2 | ||
| 6 | 6.2 | ||
| 40 | 3 | 3.2 | |
| 5 | 5.2 | ||
| 6 | 6.2 | ||
| Arched Slotted Hole Type BFCBN | 30 | 3 | 3.2 |
| 5 | 5.2 | ||
| 6 | 6.2 | ||
| 40 | 3 | 3.2 | |
| 5 | 5.2 | ||
| 6 | 6.2 | ||
| Manufacturer | Part Number |
| MISUMI | MZL－D·MZL－R·MZL－T MZ－WD·MZ－LD·MZ－D |
| Keyence | PZ-G, PZ2, PZ-V/M Series |
| Sunx | CX-L400, LS-H Series |
| OMRON | E3Z, E3ZM Series |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| BFCB30-3 |
| BFCB30-5 |
| BFCB30-6 |
| BFCB40-3 |
| BFCB40-5 |
| BFCB40-6 |
| BFCBN30-3 |
| BFCBN30-5 |
| BFCBN30-6 |
| BFCBN40-3 |
| BFCBN40-5 |
| BFCBN40-6 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Type | L Dimension (mm) | NO. | N | |
|---|---|---|---|---|---|---|---|---|---|
3.78 € | 1 | 5 Days | 10 | Straight Slotted Hole | 30 | 3 | 3.2 | ||
3.78 € | 1 | 5 Days | 10 | Straight Slotted Hole | 30 | 5 | 5.2 | ||
3.78 € | 1 | 5 Days | 10 | Straight Slotted Hole | 30 | 6 | 6.2 | ||
4.41 € | 1 | 5 Days | 10 | Straight Slotted Hole | 40 | 3 | 3.2 | ||
4.41 € | 1 | 5 Days | 10 | Straight Slotted Hole | 40 | 5 | 5.2 | ||
4.41 € | 1 | 5 Days | 10 | Straight Slotted Hole | 40 | 6 | 6.2 | ||
4.41 € | 1 | 5 Days | 10 | Bow-Shaped Slotted Hole | 30 | 3 | 3.2 | ||
4.41 € | 1 | 5 Days | 10 | Bow-Shaped Slotted Hole | 30 | 5 | 5.2 | ||
4.41 € | 1 | 5 Days | 10 | Bow-Shaped Slotted Hole | 30 | 6 | 6.2 | ||
5.04 € | 1 | 5 Days | 10 | Bow-Shaped Slotted Hole | 40 | 3 | 3.2 | ||
5.04 € 2.77 € | 1 |
Same day
Stock | 10 | Bow-Shaped Slotted Hole | 40 | 5 | 5.2 | ||
5.04 € | 1 | 5 Days | 10 | Bow-Shaped Slotted Hole | 40 | 6 | 6.2 |
Loading...
Specifications/Overview
App. Example
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Type
- Bow-Shaped Slotted Hole
- Straight Slotted Hole
-
L Dimension(mm)
- 30
- 40
-
NO.
- 3
- 5
- 6
-
N
- 3.2
- 5.2
- 6.2
-
Type
- BFCB
- BFCBN
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
