Stoppers / Transfer Rollers

Stoppers / Transfer Rollers

Click on this image to zoom in.

Click on this image to zoom in.

  • Stoppers / Transfer Rollers
  • Stoppers / Transfer Rollers

MISUMI

MISUMI

Data sheet

Unit еxample related to this product
Ideas of improving wear resistance
Search for оther еxamples

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

CSTP
CSTE(Engineering Plastic Rail Set)
Stopper: Related Image		[Applicable Engineering Plastic Rails]
NLK
Stopper: Related Image

(Matching Plate Dimension 22 × 3)

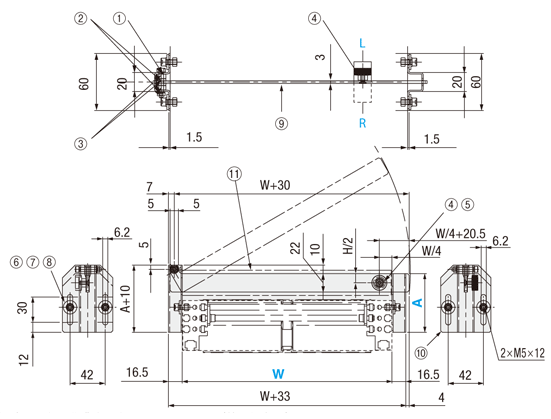

Parts
No.		Part NameQty.[M] Material
CSTPCSTE
(1)Hinge Pin1EN 1.4301 Equiv.
(2)Metal Washer2EN 1.4301 Equiv.
(3)Plastic Washer2Polyacetal
(4)Knurled Plastic Clamp Knobs - Tapped1ABS·EN 1.4301 Equiv.-
Knurled Plastic Clamp Knobs - Threaded1-ABS·EN 1.4301 Equiv.
(5)Hex Socket Flat Head Cap Screw1EN 1.4301 Equiv.-
(6)Hex Socket Head Cap Screw4EN 1.4301 Equiv.
(7)Washers for Slotted Holes4EN 1.4301 Equiv.
(8)Spring Washer4EN 1.4301 Equiv.
(9)Stopper Plate1EN 1.4301 Equiv.
(10)Bracket2EN 1.4301 Equiv.
(11)Engineering Plastic Rails1Ultrahigh molecular weight polyethylene
[!] Since it can be fully opened, install it so that the worker can stand on the fulcrum shaft side. (See App. Example)
[ ! ] The engineering plastic rails can be secured by pressing down the thread part of the knob.
[!] Please note that the workpiece may be lifted if a belt with high friction coefficient is used.
[!] Conveyor mounting bolts are not included. Please check the nut size of the conveyor and prepare the bolts.

Specification Table

Part Number—W—A—Knob Mounting Direction
CSTP—250—70 L
CSTE—200—120
Part NumberW
1 mm Increments		AKnob
Mounting
Direction
CSTP65 to 10070
120		L
R
101 to 200
201 to 300
301 to 400

Part NumberW
1 mm Increments		A
CSTE65 to 10070
120
101 to 200
201 to 300
301 to 400

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...

Plug-in is required for 3D Preview

CAD Download

Data to be displayed
30
45
60
  1. 1
Part Number
CSTE-[65-400/1]-[70,​120]
CSTP-[65-400/1]-[70,​120]-[L,​R]
Part NumberMinimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSA Knob Mounting Direction W
(mm)
1 9 Days 1070 ～ 120-65 ～ 400
1 9 Days 1070 ～ 120L / R65 ～ 400
