Adjustable Hoses / Connector Only
- Promotional pricing
- Order quantities extended (D-JIT)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- Catalog

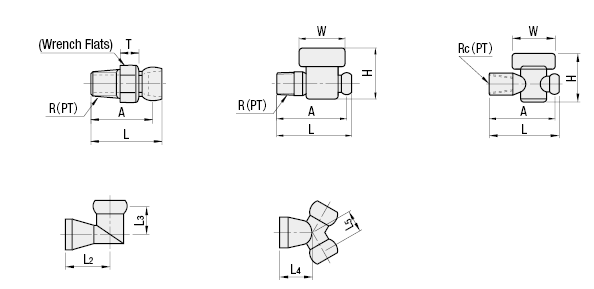

Dimensional Drawing
■Threaded AAJD
■Male Valve AVAD
■Female Valve AVAFD
■L-Shaped AAJL
■Y-Shaped AAJY
|
|
Specification Table
| Part Number | — | Connector Thread Size |
| AAJD2 | — | 1 |
| Part Number | Connectors Thread Size R (PT) | A | L | H | T | |
| Type | Hose Nominal | |||||
| AAJD | 2 | 1 (R1/8) | 23 | 26.3 | 14 | 7 |
| 2 (R1/4) | ||||||
| 3 | 3 (R3/8) | 27.3 | 32 | 19 | 8 | |
| 4 (R1/2) | ||||||
| 4 | 3 (R3/8) | 28 | 38.3 | 18.8 | 7.5 | |
| 4 (R1/2) | 20.8 | |||||
| Part Number | Connectors Thread Size R (PT) | A | L | H | W | |
| Type | Hose Nominal | |||||
| AVAD | 2 | 2 (R1/4) | 41 | 44 | 30 | 27 |
| 3 | 3 (R3/8) | 45 | 49 | 34 | 25 | |
| 4 | 4 (R1/2) | 48.5 | 48.5 | 43 | 34 | |
| Part Number | Connectors Thread Size Rc(PT) | A | L | H | W | |
| Type | Hose Nominal | |||||
| AVAFD | 2 | 2 (Rc1/4) | 42 | 45 | 30 | 27 |
| 4 | 4 (Rc1/2) | 58.2 | 64 | 63 | 34 | |
| Part Number | AAJL | AAJY | |||
| Type | Hose Nominal | L2 | L3 | L4 | L5 |
| AAJL (L-Shaped) AAJY (Y-Shaped) | 2 | 17 | 12 | 15.5 | 9.5 |
| 4 | 23.5 | 16.5 | 23.5 | 19 | |
·Use of a specialized tool is recommended for mounting and removing parts.
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| AAJD2-1 |
| AAJD2-2 |
| AAJD3-3 |
| AAJD3-4 |
| AAJD4-3 |
| AAJD4-4 |
| AAJL2 |
| AAJL4 |
| AAJY2 |
| AAJY4 |
| AVAD2-2 |
| AVAD3-3 |
| AVAD4-4 |
| AVAFD2-2 |
| AVAFD4-4 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Nominal Screw Dia. 1 | Hose I.D. (Ø) | Connector Shape R/RC (PT) | Compatible Hose Nominal Dia. | |
|---|---|---|---|---|---|---|---|---|---|
6.30 € | 1 |
Same day
Stock | 10 | 1 (R1/8) | 2(6.3) | Threads | 2 | ||
6.30 € | 1 |
Same day
Stock | 10 | 2(R1/4) | 2(6.3) | Threads | 2 | ||
5.65 € 1.70 € | 1 |
Same day
Stock | 10 | 3(R3/8) | 3(8.5) | Threads | 3 | ||
5.65 € | 1 | 5 Days | 10 | 4(R1/2) | 3(8.5) | Threads | 3 | ||
6.55 € | 1 | 5 Days | 10 | 3(R3/8) | 4(12.7) | Threads | 4 | ||
6.55 € | 1 | 5 Days | 10 | 4(R1/2) | 4(12.7) | Threads | 4 | ||
10.83 € | 1 | 5 Days | 10 | - | 2(6.3) | L-Shaped | 2 | ||
11.34 € | 1 | 5 Days | 10 | - | 4(12.7) | L-Shaped | 4 | ||
10.83 € | 1 | 5 Days | 10 | - | 2(6.3) | Y-Shaped | 2 | ||
11.58 € | 1 | 5 Days | 10 | - | 4(12.7) | Y-Shaped | 4 | ||
14.11 € | 1 |
Same day
Stock | 10 | 2(R1/4) | 2(6.3) | Male Valve | 2 | ||
14.22 € | 1 | 5 Days | 10 | 3(R3/8) | 3(8.5) | Male Valve | 3 | ||
17.51 € 5.25 € | 1 |
Same day
Stock | 10 | 4(R1/2) | 4(12.7) | Male Valve | 4 | ||
14.11 € | 1 | 5 Days | 10 | 2 (RC1/4) | 2(6.3) | Female Valve | 2 | ||
17.51 € | 1 | 5 Days | 10 | 4(Rc1/2) | 4(12.7) | Female Valve | 4 |
Loading...
Basic information
| Type | Adjusting Hose | Material | Resin | Adjusting Hose Parts | Connector Only |
|---|
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Nominal Screw Dia. 1
- 1 (R1/8)
- 2 (RC1/4)
- 2(R1/4)
- 3(R3/8)
- 4(R1/2)
- 4(Rc1/2)
-
Hose I.D.(Ø)
- 2(6.3)
- 3(8.5)
- 4(12.7)
-
Connector Shape R/RC (PT)
- Female Valve
- L-Shaped
- Male Valve
- Threads
- Y-Shaped
-
Compatible Hose Nominal Dia.
- 2
- 3
- 4
-
Type
- AAJD
- AAJL
- AAJY
- AVAD
- AVAFD
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
