8-60 Series / slot width 10 / 60x60mm

8-60 Series / slot width 10 / 60x60mm
  • Volume Discount

MISUMI

MISUMI


(i)Remark

  • Cutting is free for this product. Please specify the length you prefer.

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Dimensional Drawing

HFS (Standard Type)
 8-45 Series

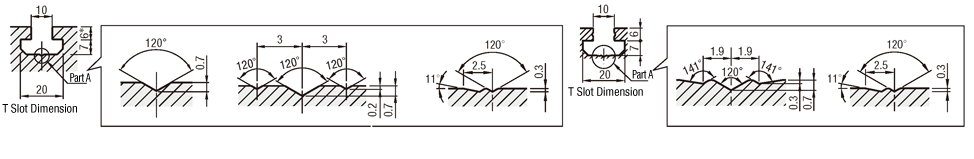

Slot Details (Common to HFS, CAF, GNFS, NFSL Series)
Slot Details (Common to EFS and NEFS Series)
Slot Bottom Details
Slot Bottom Details
(HFS, CAF Series)
(GFS Series)
(NFSL, GNFS Series)
(EFS Series)
(NEFS Series)
Enlarged View of A
Enlarged View of A
Enlarged View of A
Enlarged View of A
Enlarged View of A



* 5.5 for Light Type (HFSL, HFSLF, HFSLT, NFSL).

[ ! ] Cut surface and altered parts are not surface treated.
[ ! ] When tapped hole alterations are specified, the red circles on the outline drawing of the aluminum extrusion will be machined.
■8-45 Series
is an aluminum extrusion with a 10 mm slot width. Applicable to M8 bolts.

Configurable Length Extrusion Specification Table

Part Number—L
HFSF8−6060—800

TypeMaterialSurface TreatmentPart NumberL 0.5 mm IncrementsMass kg/mSectional Area mm2Cross Sectional Moment of Inertia mm4
ℓxℓy
HFSEN AW-6061-T5 Equiv.Clear AnodizeHFSF8－606050 to 40004.16150958.16 × 10456.19 × 104
[ ! ] Extrusions without anodizing are also available.
[ ! ] Applicable to 6,000 mm depending on products.
[ ! ] Not applicable to some extrusions.

Fixed Length Extrusion (Effective Length 4,000 mm) Specification Table

[ ! ] Part numbers beginning with the character "K" indicate Fixed Length Extrusion.
TypeMaterialSurface TreatmentPart NumberLmmSectional Area mm2Cross Sectional Moment of Inertia mm4
ℓxℓy
HFSEN AW-6061-T5 Equiv.Clear AnodizeKHFSF8－60604000150958.16 × 10456.19 × 104
[ ! ] An effective Length of 4,000 mm indicates the extrusion with 4,000 mm or more effective length.
The actual length with extra lengths on ends is more than 4000 mm (several tens of mm).
Fixed Length Extrusions need to be cut by users thus the exact length cannot be specified.
■ Measure of Allowable Load
ExtrusionHeight
×
Width (mm)		NFS, HFS SeriesGNFS, GFS SeriesDifference of Allowable Load
from HFS Series
Allowable LoadAllowable Load
(N)(kgf)(N)(kgf)
60 sq. x 60 sq.60 × 601,7431772,6822731.54 times
[ ! ] The value indicates the concentrated load of the extrusion on the center when the 1,000 mm long extrusion is supported at both ends.

■Mechanical Properties (Reference Actual Measurement)
SeriesNFS SeriesHFS SeriesGNFS SeriesGFS Series
Material (JIS Symbol)EN AW-6063-T5 Equiv.EN AW-6061-T5 Equiv.A6063S−T6 EquivalentEN AW-6061-T6 Equiv.
Tensile Strength (N/mm2)155 or more245 or more205 or more265 or more (Actual Measurement 278)
Yield Stress (N/mm2)110 or more205 or more170 or more245 or more (Actual Measurement 247)
Young's Modulus (N/mm2)69,97269,97269,97269,972
Brinell Hardness (HB)88888888
Surface TreatmentAnodize 9 µm or more

Alterations

[ ! ] MISUMI configurable length aluminum extrusion product can be utilized for structure building with highly enhanced design flexibility when the following various alteration options are applied.
Some alterations are not applicable depending on types and sizes.
TypeAlterationsAlteration CodesApp. ExampleContents
> End TappingEnd Tapping
(Center Hole)		LTP/RTP/TPW
LHP/RHP/HPW		End Tapping (Center Hole)Adds tapped holes on extrusion ends.
Blind Joints which require this alteration
(Screw Joint / Simple Joint)
End Tapping
(4 Side Holes)		LSP/RSP/SPWEnd Tapping (4 Side Holes)Adds tapped holes on extrusion corner ends.
> Cutting Method ChangeHigh Precision CutSCHigh Precision CutApplies High Precision Cut with an overall length tolerance of L±0.2 (Standard = L±0.5).
* Only applicable to L ≤ 1,500
45-Degree CutL□T45/R□T4545-Degree CutCuts with 45-degree angle.
> Drill Wrench HoleWrench Hole in Fixed PositionLWP/RWPWrench Hole in Fixed PositionWrench access hole(s) for Blind Joints are drilled.
The hole location will be aligned with the mating extrusion’s tapped hole location.
Blind Joints which require this alteration
(Screw Joint / Single Joint / Tapping Joint)
Extrusion End Cap
The hole position moves by thickness		FL/FRHole Position Change for Extrusion End Cap ThicknessOffsets the wrench access hole for the thickness of Extrusion End Cap (3 mm).
The extrusion end cap will be flat with the adjacent extrusion surface.
Wrench Hole in Specified PositionAH/BH/AV/BVWrench Hole in Specified PositionAdds a wrench hole in a desired position from the left end.
Use for Blind Jointing in beam sections, etc.
> CounterboringCounterbores in Specified PositionZ6/XA100Counterbores in Specified PositionAdds a counterbored hole in a desired position from the left end.
Can be used for connecting extrusions or installing tables, etc.
> Blind
Joints
Dedicated Holes		D HoleLDH/RDHBlind Joint Dedicated Holes (D Hole)Adds required holes for Single Joint connections.
(Single Joints)
S HoleLSHBlind Joint Dedicated Holes (S Hole)Adds required holes for Pre-Assembly. Insertion Double Joint connections.
(Pre-Assembly Insertion Double Joints)
M HoleLMHBlind Joint Dedicated Holes (M Hole)Adds required holes for Post-Assembly Insertion Double Joints, Center Joint connections.
(Post-Assembly Insertion Double Joint / Center Joint)
L HoleJLPBlind Joint Dedicated Holes (L Hole)Adds required holes for Parallel Joint connections.
(Parallel Joints)
> Other MachiningGNFS Series
GFS Series
End Tapping		LTS/RTS/TSWGNFS Series GFS Series End TappingAdds tapped holes on extrusion ends. This process is required for using extrusion end cap of the high rigidity plate type.
(Plates for High Rigidity Type)
End Face C ChamferingCWEnd Face C ChamferingAdds C Chamfering on extrusion ends.
LabelingZZZLabelingAdds a sticker with catalog No. etc. on the aluminum extrusions.
Although number of characters are limited, customer's own serial number or unit number can be labeled.


Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...

Plug-in is required for 3D Preview

CAD Download

Data to be displayed
30
45
60
  1. 1
Part Number
HFSF8-6060-[50-4000/0.5]
KHFSF8-6060-4000
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSL Dimension Fixed, Specified Overall Length L (Effective Length)
(mm) 		Overall Length L
(mm)

-

1 5 Days 10Configuration-50 ～ 4000

293.26 €

1 Available 5 Days 10Stationary4000-

Loading...

  1. 1


Basic information

Standard Extrusion Size(mm) 60 Extrusion Size 60x60 Extrusion Series 8-45 Series
Extrusion Type Square Number of Extrusion Slots 1 Slot x 1 Slot Extrusion Type HFS (Standard)
Surface Treatment Clear Anodize Number of Grooved Surfaces Three-Side Slots Surface Milled Not Provided
Material EN AC-51400-T5 Equiv. Extrusion Size: Width (A)(mm) 60 Extrusion Size: Thickness (T)(mm) 60
