Sheet Metal Mounting Plate / Bracket -Convex Bending Type- BLUZS

Sheet Metal Mounting Plate / Bracket -Convex Bending Type- BLUZS

MISUMI

MISUMI

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

BLUZS (No Hole)


[ ! ]For details on specifications and machining limits, see >> here
Part Number[ M ]Material[ S ]Surface Treatment
TypeMaterial Symbol
BLUZSSPT0.8~3.2 : EN 1.0330 Equiv.
T4.5~6.0 : EN 1.0320 Equiv. (hot coiled)		−
SPBBlack Oxide
SPUTrivalent Chromate (Clear)
SPKTrivalent Chromate (Black)
AMEN AW−5052 Equiv.−
AMWAnodize (Clear)
AMBAnodize (Black)
SUDEN 1.4301 Equiv. (Passivated 2B)−

Specification Table

Part Number－A－B－T－H－V

Type－Material Symbol
BLUZS－AM－A80－B30－T1.5－H10－V45
Part Number1 mm IncrementsSelection1 mm Increments
TypeMaterial SymbolABTHV
BLUZSSP
SPB
SPU
SPK		30
～
200		20
～
200		0.8 ・ 1.0 ・ 1.2 ・ 1.6
2.3 ・ 3.2 ・ 4.5 ・ 6.0		10
～
100		min
15～

[ ! ]V≥H
AM
AMW
AMB		1.0 ・ 1.5 ・ 2.0 ・ 3.0
SUD0.8 ・ 1.0 ・ 1.2 ・ 1.5
2.0 ・ 3.0 ・ 4.0



Alterations


AlterationCorner Cut Change (4 corners)
CodeCC
Spec. CC = 1 mm Increments
[ ! ]1 ≤ CC ≤ 20
Specifying Method
Add CC to the end of a Part Number.
Example: ... -CC10

Specifications, Machining Limits

[ ! ]1．See the diagram below for tolerances

 [Standard Machined Dimension Tolerances]
 ProductDimension Range
(A, H dimension)		6 or lessOver 6, and
30 or less		Over 30, and
120 or less		Over 120, and
400 or less
 Sheet Metal (Bent Products)Tolerance（a・h）±0.3±0.5±0.8±1.2
* Class B Tolerance stipulated in JIS B 0408, General dimensional tolerances for parts formed
by press working from sheet metal is used.:

[ ! ]2．Burr height 0.1 or less
[ ! ]3．Bend angle tolerance ±1°

[ ! ]4．There are machining limits for sections h, g below.

Thg
EN 1.0330 Equiv.
EN 1.0320 Equiv. (hot coiled)		EN AW−5052 Equiv.EN 1.4301 Equiv.
0.8ー0.855
1.01.01.05.55.5
1.2ー1.25.55.5
1.61.51.566
2.32.02.077
3.23.03.099
4.5ー4.01111
6.0ーー1618

[ ! ]5．There will be some scratches left by press brake. Use r, e, d dimension for reference only.

TR after BendingBrake Scratches
PositionDepth
EN 1.0330 Equiv.
EN 1.0320 Equiv. (hot coiled)		EN AW−5052 Equiv.EN 1.4301 Equiv.（r）（e）（d）
0.8ー0.80.850.1
1.01.01.0150.1
1.2ー1.21.250.1
1.61.51.51.560.1
2.32.02.02.07.50.1
3.23.03.03.010.50.2
4.5ー4.04.013.50.3
6.0ーー6.0170.5

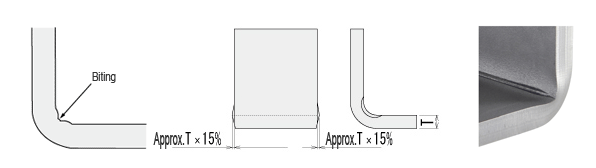

[ ! ]6．Bending causes biting and bulging.

[ ! ]7．Since it is manufactured with minimum bending R, there is a possibility of breakage if it is used in an environment where stress is concentrated, such as impact.

■Appearance per Material (Surface Treatment) and Machining Method
 NoneBlack OxideTrivalent Chromate (Clear)Trivalent Chromate (Black)
SPSPBSPUSPK
EN 1.0330 Equiv.
T0.8～3.2
EN 1.0320 Equiv. (hot coiled)
T4.5～6.0
EN 1.0038 Equiv.
（Black）
T9.0
 NoneAnodize (Clear)Anodize (Black)
AMAMWAMB
EN AW−5052 Equiv.
 None
SUD
EN 1.4301 Equiv. (Passivated 2B)
T0.8～6.0
EN 1.4301 Equiv.（No.1）
T9.0

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...

Plug-in is required for 3D Preview

CAD Download

Data to be displayed
30
45
60
  1. 1
Part Number
BLUZS-AM-A[30-200/1]-B[20-200/1]-T[1.5,​2,​3]-H[10-100/1]-V[15-200/1]
BLUZS-AMB-A[30-200/1]-B[20-200/1]-T[1.5,​2,​3]-H[10-100/1]-V[15-200/1]
BLUZS-AMW-A[30-200/1]-B[20-200/1]-T[1.5,​2,​3]-H[10-100/1]-V[15-200/1]
BLUZS-SP-A[30-200/1]-B[20-200/1]-T[1.6,​2.3,​3.2,​4.5,​6]-H[10-100/1]-V[15-200/1]
BLUZS-SPB-A[30-200/1]-B[20-200/1]-T[1.6,​2.3,​3.2,​4.5,​6]-H[10-100/1]-V[15-200/1]
BLUZS-SPK-A[30-200/1]-B[20-200/1]-T[1.6,​2.3,​3.2,​4.5,​6]-H[10-100/1]-V[15-200/1]
BLUZS-SPU-A[30-200/1]-B[20-200/1]-T[1.6,​2.3,​3.2,​4.5,​6]-H[10-100/1]-V[15-200/1]
BLUZS-SUD-A[30-200/1]-B[20-200/1]-T[1.5,​2,​3,​4]-H[10-100/1]-V[15-200/1]
Part NumberMinimum order quantityVolume Discount
