Sheet Metal Mounting Plate / Bracket -Convex Bending Type- BLUJS

Sheet Metal Mounting Plate / Bracket -Convex Bending Type- BLUJS

MISUMI

MISUMI

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

BLUJS
[ ! ]Green colored parameters can be omitted. If the parameter setting is omitted, the holes will be evenly distributed about the center.
[ ! ]For details on specifications and machining limits, see >> here
■Hole Type Selection Chart
Hole TypeBolt HoleTapped Hole (Coarse)Through Hole with Tolerance
CodeN・NAM・MAD

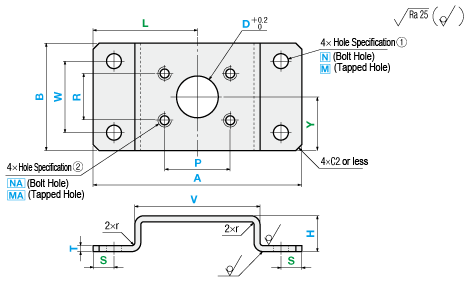

Shape Diagram
[ ! ]
        
[ ! ]For the d dimensions, refer to the "N, NA Machining Dimensions"
section below the Specifications Table
Part Number[ M ]Material[ S ]Surface Treatment
TypeMaterial Symbol
BLUJSSPT0.8~3.2 : EN 1.0330 Equiv.
T4.5~6.0 : EN 1.0320 Equiv. (hot coiled)		−
SPBBlack Oxide
SPUTrivalent Chromate (Clear)
SPKTrivalent Chromate (Black)
AMEN AW−5052 Equiv.−
AMWAnodize (Clear)
AMBAnodize (Black)
SUDEN 1.4301 Equiv. (Passivated 2B)−

Specification Table

Part Number－A－B－T－H－V－S－W－Hole Specification①
Code, Nominal		－L Y－D－P－R－Hole Specification②
Code, Nominal
   －
Type－Material Symbol
BLUJS－SP－A80－B40－T2.3－H20－V50－S7－W20－N5－L40－Y20－D20－P30－R20－NA3
Part Number1 mm IncrementsSelection1 mm IncrementsSWHole Specification①LYDPRHole Specification②
TypeMaterial SymbolABTHVCode / Specify MethodCode / Specify Method
BLUJSSP
SPB
SPU
SPK		30
～
200		20
～
200		0.8 ・ 1.0 ・ 1.2 ・ 1.6
2.3 ・ 3.2 ・ 4.5 ・ 6.0		10
～
100		min
15～

[ ! ]V≥H		0.1 mm
Increments		  0.1 mm
Increments		3~30
（0.5 Increments）		0.1 mm
Increments

NMNAMA
(Bolt Hole)(Tapped Holes)(Bolt Hole)(Tapped Holes)
AM
AMW
AMB		1.0 ・ 1.5 ・ 2.0 ・ 3.00・3・4・50・3・4・50・3・4・50・3・4・5
6・8・106・8・106・8・106・8・10
（Selection）（Selection）（Selection）（Selection）
SUD0.8 ・ 1.0 ・ 1.2 ・ 1.5
2.0 ・ 3.0 ・ 4.0		 [ ! ] [ ! ] [ ! ] [ ! ]


[ ! ]If the specified hole location is close to the edges, the hole may be deformed but will be machined as specified if within machining limits.
[ ! ]N・NA Machining Dimension Table
N・NA
Specified Value		Through Hole Diameter (d)
0(No Hole)
33.5
44.5
55.5
66.5
89
1011

[ ! ]Hole Machining Table

TN・NA (Bolt Hole)M・MA (Tapped Holes)
0.80・3・4・5・6・8・100
1.0、1.20・3
1.5、1.60・3・4
2.0、2.30・3・4・5・6
3.0、3.20・3・4・5・6・8
4.0～6.00・3・4・5・6・8・10
[ ! ]T = 1.0 is not applicable for tapped holes to AM, AMW, or AMB



Alterations

AlterationCorner Cut Change (4 corners)
CodeCC
Spec. CC = 1 mm Increments
[ ! ]1 ≤ CC ≤ 20
Specifying Method
Add CC to the end of a Part Number.
Example: ... -CC10

Specifications, Machining Limits

[ ! ]1．See the figure below for tolerances

 [Standard Machined Dimension Tolerances]
 ProductDimension Range
(A, H dimension)		6 or lessOver 6, and
30 or less		Over 30, and
120 or less		Over 120, and
400 or less
 Sheet Metal (Bent Products)Tolerance（a・h）±0.3±0.5±0.8±1.2
*For sheet metals, Class B Tolerance stipulated in JIS B 0408, General dimensional tolerances for
parts formed by press working from sheet metal is used.:

[ ! ]2．Burr height 0.1 or less
[ ! ]3．Bend angle tolerance ±1°
[ ! ]4．In case of the thin plates, the tap ridges may be crushed, so please be careful when tightening.

[ ! ]5．There are machining limits for sections b, f, h, g below.

Tf (Distance between the hole and the bend)b
（Distance between
the hole and the end face）		hg
EN 1.0330 Equiv.
EN 1.0320 Equiv.
(hot coiled)		EN AW−5052
Equiv.		EN 1.4301
Equiv.		Through HoleTapped HoleSlotted Hole parallel
to Hole Bending with Tolerance
L BendZ, Convex BendL BendZ, Convex Bend
0.8ー0.823--3.5155
1.01.01.02335.53.515.55.5
1.2ー1.22335.53.515.55.5
1.61.51.523.5364166
2.32.02.024.53751.577
3.23.03.026.53971.599
4.5ー4.037.54118(9)21111
6.0ーー314416152.51618
[ ! ] Slotted hole f parallel to T4.0 and T4.5 will be (9).
[ ! ] The hole may be deformed if specified at the limit value shown above.

[ ! ]6．There will be some scratches left by press brake. Use r, e, d dimension for reference only.

TR after BendingBrake Scratches
PositionDepth
EN 1.0330 Equiv.
EN 1.0320 Equiv.(hot coiled)		EN AW−5052 Equiv.EN 1.4301 Equiv.（r）（e）（d）
0.8ー0.80.850.1
1.01.01.0150.1
1.2ー1.21.250.1
1.61.51.51.560.1
2.32.02.02.07.50.1
3.23.03.03.010.50.2
4.5ー4.04.013.50.3
6.0ーー6.0170.5
[ ! ] If the bend and hole are close to each other, r may be smaller.

[ ! ]7．Bending causes biting and bulging.

[ ! ]8．Since it is manufactured with minimum bending R, there is a possibility of breakage if it is used in an environment where stress is concentrated, such as impact.

■Appearance per Material (Surface Treatment) and Machining Method
 NoneBlack OxideTrivalent Chromate (Clear)Trivalent Chromate (Black)
SPSPBSPUSPK
EN 1.0330 Equiv.
T0.8～3.2
EN 1.0320 Equiv.
(hot coiled)
T4.5～6.0
EN 1.0038 Equiv.
（Black）
T9.0
 NoneAnodize (Clear)Anodize (Black)
AMAMWAMB
EN AW−5052 Equiv.
 None
SUD
EN 1.4301 Equiv. (Passivated 2B)
T0.8～6.0
EN 1.4301 Equiv.（No.1）
T9.0

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...

Plug-in is required for 3D Preview

CAD Download

Data to be displayed
30
45
60
  1. 1
Part Number
BLUJS-AM-A[30-200/1]-B[20-200/1]-T[1.5,​2,​3]-H[10-100/1]-V[15-200/1]
BLUJS-AMB-A[30-200/1]-B[20-200/1]-T[1.5,​2,​3]-H[10-100/1]-V[15-200/1]
BLUJS-AMW-A[30-200/1]-B[20-200/1]-T[1.5,​2,​3]-H[10-100/1]-V[15-200/1]
BLUJS-SP-A[30-200/1]-B[20-200/1]-T[1.6,​2.3,​3.2,​4.5,​6]-H[10-100/1]-V[15-200/1]
BLUJS-SPB-A[30-200/1]-B[20-200/1]-T[1.6,​2.3,​3.2,​4.5,​6]-H[10-100/1]-V[15-200/1]
BLUJS-SPK-A[30-200/1]-B[20-200/1]-T[1.6,​2.3,​3.2,​4.5,​6]-H[10-100/1]-V[15-200/1]
BLUJS-SPU-A[30-200/1]-B[20-200/1]-T[1.6,​2.3,​3.2,​4.5,​6]-H[10-100/1]-V[15-200/1]
BLUJS-SUD-A[30-200/1]-B[20-200/1]-T[1.5,​2,​3,​4]-H[10-100/1]-V[15-200/1]
Part NumberMinimum order quantityVolume Discount
Standard
Shipping Days
?
