Casters for Aluminum Extrusion - With Leveling Function
- Volume Discount
Allows quick level adjustment without any tools.
Selectable from 2 types: Standard handle and Ratchet handle.
(i)Remark
- Casters with leveling function for general use are also available.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
AFLS6−50·8−50·845−50 (Silver)
AFLB6−50·8−50·845−50 (Black)
AFLSR6−50·8−50·845−50 (Silver)
AFLBR6−50·8−50·845−50 (Black)
AFLS8−63·845−63·10−63 (Silver)
AFLB8−63·845−63·10−63 (Black)
AFLSR8−63·845−63·10−63 (Silver)
AFLBR8−63·845−63·10−63 (Black)
| Type | Main Body | Wheel | Plate | Lever | Pad | |
| Material | Surface Treatment | |||||
| AFLS AFLSR | Aluminum Alloy (ADC) | Powder Coating / Zinc Plating (Silver) | Nylon (Black) Urethane (White) Monomer Casting Nylon (Blue) | Steel | ABS | NBR |
| AFLB AFLBR | Powder Coating / Zinc Plating (Black) | |||||
Specification Table
| Part Number | — | Wheel Material |
| AFLS6-50 | — | N |
| Part Number | D | Wheel Material | Applicable Extrusion | H | Wheel Width | Wheel Diameter | Eccentricity | Pad Diameter | Adjustment Height | Plate Thickness | t2 | Allowable Load (N) | |||
| Type | No. | ||||||||||||||
| Standard Handle | Ratchet Handle | B | D | E | K | S1 | S2 | t | |||||||
| AFLS (Silver) AFLB (Black) | AFLSR (Silver) AFLBR (Black) | 6 | 50 | N(Nylon) U(Urethane) M(Monomer Casting Nylon) | 6 Series 30 mm Square | 82.5 | 25 | 50 | 38 | 47 | 9.6 | 10 | 4.5 | 13 | 2450 |
| 8 | 8 Series 40 mm Square 8-45 Series 45 mm Square | ||||||||||||||
| 845 | 63 | 102 | 28 | 63 | 46 | 58 | 12.9 | 15 | 5 | 14 | 4900 | ||||
| 10 | 10 Series 60 mm Square | ||||||||||||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Specifications | Applicable Frame No. | Applicable Frame Size | Wheel O.D. D (mm) | Allowable Load (kgf) | Wheel Material | Surface Treatment | |
|---|---|---|---|---|---|---|---|---|---|---|---|
73.28 € | 1 | Available | 5 Days | Standard Handle | 6 | 6 Series, 30 mm Square | 50 | 2450 | Monomer Casting Nylon (Blue) | Powder Coating / Zinc Plating (Black) | |
68.45 € | 1 | Available | 5 Days | Standard Handle | 6 | 6 Series, 30 mm Square | 50 | 2450 | Nylon (Black) | Powder Coating / Zinc Plating (Black) | |
80.97 € | 1 | Available | 5 Days | Standard Handle | 6 | 6 Series, 30 mm Square | 50 | 2450 | Urethane (White) | Powder Coating / Zinc Plating (Black) | |
73.28 € | 1 | Available | 5 Days | Standard Handle | 8 | 8 Series, 40 mm Square | 50 | 2450 | Monomer Casting Nylon (Blue) | Powder Coating / Zinc Plating (Black) | |
68.45 € | 1 | Available | 5 Days | Standard Handle | 8 | 8 Series, 40 mm Square | 50 | 2450 | Nylon (Black) | Powder Coating / Zinc Plating (Black) | |
80.97 € | 1 | Available | 5 Days | Standard Handle | 8 | 8 Series, 40 mm Square | 50 | 2450 | Urethane (White) | Powder Coating / Zinc Plating (Black) | |
106.21 € | 1 | Available | 5 Days | Standard Handle | 8 | 8 Series, 40 mm Square | 63 | 4900 | Monomer Casting Nylon (Blue) | Powder Coating / Zinc Plating (Black) | |
100.35 € | 1 | Available | 5 Days | Standard Handle | 8 | 8 Series, 40 mm Square | 63 | 4900 | Nylon (Black) | Powder Coating / Zinc Plating (Black) | |
115.47 € | 1 | Available | 5 Days | Standard Handle | 8 | 8 Series, 40 mm Square | 63 | 4900 | Urethane (White) | Powder Coating / Zinc Plating (Black) | |
106.21 € | 1 | Available | 5 Days | Standard Handle | 10 | 10 Series 60 mm Square | 63 | 4900 | Monomer Casting Nylon (Blue) | Powder Coating / Zinc Plating (Black) | |
100.35 € | 1 | Available | 5 Days | Standard Handle | 10 | 10 Series 60 mm Square | 63 | 4900 | Nylon (Black) | Powder Coating / Zinc Plating (Black) | |
115.47 € | 1 | Available | 5 Days | Standard Handle | 10 | 10 Series 60 mm Square | 63 | 4900 | Urethane (White) | Powder Coating / Zinc Plating (Black) | |
73.28 € | 1 | Available | 5 Days | Standard Handle | 8-45 | 8-45 Series 45 mm Square | 50 | 2450 | Monomer Casting Nylon (Blue) | Powder Coating / Zinc Plating (Black) | |
68.45 € | 1 | Available | 5 Days | Standard Handle | 8-45 | 8-45 Series 45 mm Square | 50 | 2450 | Nylon (Black) | Powder Coating / Zinc Plating (Black) | |
80.97 € | 1 | Available | 5 Days | Standard Handle | 8-45 | 8-45 Series 45 mm Square | 50 | 2450 | Urethane (White) | Powder Coating / Zinc Plating (Black) | |
106.21 € | 1 | Available | 5 Days | Standard Handle | 8-45 | 8-45 Series 45 mm Square | 63 | 4900 | Monomer Casting Nylon (Blue) | Powder Coating / Zinc Plating (Black) | |
100.35 € | 1 | Available | 5 Days | Standard Handle | 8-45 | 8-45 Series 45 mm Square | 63 | 4900 | Nylon (Black) | Powder Coating / Zinc Plating (Black) | |
115.47 € | 1 | Available | 5 Days | Standard Handle | 8-45 | 8-45 Series 45 mm Square | 63 | 4900 | Urethane (White) | Powder Coating / Zinc Plating (Black) | |
88.04 € | 1 | Available | 5 Days | Ratchet Handle | 6 | 6 Series, 30 mm Square | 50 | 2450 | Monomer Casting Nylon (Blue) | Powder Coating / Zinc Plating (Black) | |
83.42 € | 1 | Available | 5 Days | Ratchet Handle | 6 | 6 Series, 30 mm Square | 50 | 2450 | Nylon (Black) | Powder Coating / Zinc Plating (Black) | |
95.75 € | 1 | Available | 5 Days | Ratchet Handle | 6 | 6 Series, 30 mm Square | 50 | 2450 | Urethane (White) | Powder Coating / Zinc Plating (Black) | |
88.04 € | 1 | Available | 5 Days | Ratchet Handle | 8 | 8 Series, 40 mm Square | 50 | 2450 | Monomer Casting Nylon (Blue) | Powder Coating / Zinc Plating (Black) | |
83.42 € | 1 | Available | 5 Days | Ratchet Handle | 8 | 8 Series, 40 mm Square | 50 | 2450 | Nylon (Black) | Powder Coating / Zinc Plating (Black) | |
95.75 € | 1 | Available | 5 Days | Ratchet Handle | 8 | 8 Series, 40 mm Square | 50 | 2450 | Urethane (White) | Powder Coating / Zinc Plating (Black) | |
120.78 € | 1 | Available | 5 Days | Ratchet Handle | 8 | 8 Series, 40 mm Square | 63 | 4900 | Monomer Casting Nylon (Blue) | Powder Coating / Zinc Plating (Black) | |
114.92 € | 1 | Available | 5 Days | Ratchet Handle | 8 | 8 Series, 40 mm Square | 63 | 4900 | Nylon (Black) | Powder Coating / Zinc Plating (Black) | |
129.82 € | 1 | Available | 5 Days | Ratchet Handle | 8 | 8 Series, 40 mm Square | 63 | 4900 | Urethane (White) | Powder Coating / Zinc Plating (Black) | |
120.78 € | 1 | Available | 5 Days | Ratchet Handle | 10 | 10 Series 60 mm Square | 63 | 4900 | Monomer Casting Nylon (Blue) | Powder Coating / Zinc Plating (Black) | |
114.92 € | 1 | Available | 5 Days | Ratchet Handle | 10 | 10 Series 60 mm Square | 63 | 4900 | Nylon (Black) | Powder Coating / Zinc Plating (Black) | |
129.82 € | 1 | Available | 5 Days | Ratchet Handle | 10 | 10 Series 60 mm Square | 63 | 4900 | Urethane (White) | Powder Coating / Zinc Plating (Black) | |
88.04 € | 1 | Available | 5 Days | Ratchet Handle | 8-45 | 8-45 Series 45 mm Square | 50 | 2450 | Monomer Casting Nylon (Blue) | Powder Coating / Zinc Plating (Black) | |
83.42 € | 1 | Available | 5 Days | Ratchet Handle | 8-45 | 8-45 Series 45 mm Square | 50 | 2450 | Nylon (Black) | Powder Coating / Zinc Plating (Black) | |
95.75 € | 1 | Available | 5 Days | Ratchet Handle | 8-45 | 8-45 Series 45 mm Square | 50 | 2450 | Urethane (White) | Powder Coating / Zinc Plating (Black) | |
120.78 € | 1 | Available | 5 Days | Ratchet Handle | 8-45 | 8-45 Series 45 mm Square | 63 | 4900 | Monomer Casting Nylon (Blue) | Powder Coating / Zinc Plating (Black) | |
114.92 € | 1 | Available | 5 Days | Ratchet Handle | 8-45 | 8-45 Series 45 mm Square | 63 | 4900 | Nylon (Black) | Powder Coating / Zinc Plating (Black) | |
129.82 € | 1 | Available | 5 Days | Ratchet Handle | 8-45 | 8-45 Series 45 mm Square | 63 | 4900 | Urethane (White) | Powder Coating / Zinc Plating (Black) | |
69.17 € | 1 | Available | 5 Days | Standard Handle | 6 | 6 Series, 30 mm Square | 50 | 2450 | Monomer Casting Nylon (Blue) | Powder Coating / Zinc Plating (Silver) | |
64.34 € | 1 | Available | 5 Days | Standard Handle | 6 | 6 Series, 30 mm Square | 50 | 2450 | Nylon (Black) | Powder Coating / Zinc Plating (Silver) | |
76.88 € | 1 | Available | 5 Days | Standard Handle | 6 | 6 Series, 30 mm Square | 50 | 2450 | Urethane (White) | Powder Coating / Zinc Plating (Silver) | |
69.17 € | 1 | Available | 5 Days | Standard Handle | 8 | 8 Series, 40 mm Square | 50 | 2450 | Monomer Casting Nylon (Blue) | Powder Coating / Zinc Plating (Silver) | |
64.34 € | 1 | Available | 5 Days | Standard Handle | 8 | 8 Series, 40 mm Square | 50 | 2450 | Nylon (Black) | Powder Coating / Zinc Plating (Silver) | |
76.88 € | 1 | Available | 5 Days | Standard Handle | 8 | 8 Series, 40 mm Square | 50 | 2450 | Urethane (White) | Powder Coating / Zinc Plating (Silver) | |
101.08 € | 1 | Available | 5 Days | Standard Handle | 8 | 8 Series, 40 mm Square | 63 | 4900 | Monomer Casting Nylon (Blue) | Powder Coating / Zinc Plating (Silver) | |
95.22 € | 1 | Available | 5 Days | Standard Handle | 8 | 8 Series, 40 mm Square | 63 | 4900 | Nylon (Black) | Powder Coating / Zinc Plating (Silver) | |
110.34 € | 1 | Available | 5 Days | Standard Handle | 8 | 8 Series, 40 mm Square | 63 | 4900 | Urethane (White) | Powder Coating / Zinc Plating (Silver) | |
101.08 € | 1 | Available | 5 Days | Standard Handle | 10 | 10 Series 60 mm Square | 63 | 4900 | Monomer Casting Nylon (Blue) | Powder Coating / Zinc Plating (Silver) | |
95.22 € | 1 | Available | 5 Days | Standard Handle | 10 | 10 Series 60 mm Square | 63 | 4900 | Nylon (Black) | Powder Coating / Zinc Plating (Silver) | |
110.34 € | 1 | Available | 5 Days | Standard Handle | 10 | 10 Series 60 mm Square | 63 | 4900 | Urethane (White) | Powder Coating / Zinc Plating (Silver) | |
69.17 € | 1 | Available | 5 Days | Standard Handle | 8-45 | 8-45 Series 45 mm Square | 50 | 2450 | Monomer Casting Nylon (Blue) | Powder Coating / Zinc Plating (Silver) | |
64.34 € | 1 | Available | 5 Days | Standard Handle | 8-45 | 8-45 Series 45 mm Square | 50 | 2450 | Nylon (Black) | Powder Coating / Zinc Plating (Silver) | |
76.88 € | 1 | Available | 5 Days | Standard Handle | 8-45 | 8-45 Series 45 mm Square | 50 | 2450 | Urethane (White) | Powder Coating / Zinc Plating (Silver) | |
101.08 € | 1 | Available | 5 Days | Standard Handle | 8-45 | 8-45 Series 45 mm Square | 63 | 4900 | Monomer Casting Nylon (Blue) | Powder Coating / Zinc Plating (Silver) | |
95.22 € | 1 | Available | 5 Days | Standard Handle | 8-45 | 8-45 Series 45 mm Square | 63 | 4900 | Nylon (Black) | Powder Coating / Zinc Plating (Silver) | |
110.34 € | 1 | Available | 5 Days | Standard Handle | 8-45 | 8-45 Series 45 mm Square | 63 | 4900 | Urethane (White) | Powder Coating / Zinc Plating (Silver) | |
83.95 € | 1 | Available | 5 Days | Ratchet Handle | 6 | 6 Series, 30 mm Square | 50 | 2450 | Monomer Casting Nylon (Blue) | Powder Coating / Zinc Plating (Silver) | |
79.33 € | 1 | Available | 5 Days | Ratchet Handle | 6 | 6 Series, 30 mm Square | 50 | 2450 | Nylon (Black) | Powder Coating / Zinc Plating (Silver) | |
91.64 € | 1 | Available | 5 Days | Ratchet Handle | 6 | 6 Series, 30 mm Square | 50 | 2450 | Urethane (White) | Powder Coating / Zinc Plating (Silver) | |
83.95 € | 1 | Available | 5 Days | Ratchet Handle | 8 | 8 Series, 40 mm Square | 50 | 2450 | Monomer Casting Nylon (Blue) | Powder Coating / Zinc Plating (Silver) | |
79.33 € | 1 | Available | 5 Days | Ratchet Handle | 8 | 8 Series, 40 mm Square | 50 | 2450 | Nylon (Black) | Powder Coating / Zinc Plating (Silver) | |
91.64 € | 1 | Available | 5 Days | Ratchet Handle | 8 | 8 Series, 40 mm Square | 50 | 2450 | Urethane (White) | Powder Coating / Zinc Plating (Silver) |
Loading...
Specifications / Overview
■ How to Mount* Without Ratchet
(Fixed) | (Movable) |

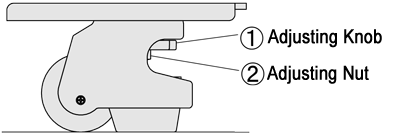

Movable: Turn the handle to raise the pad and lower the caster to the ground.
(Fixed) | (Movable) |

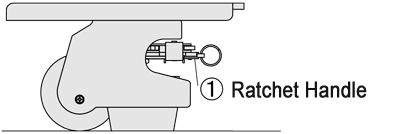

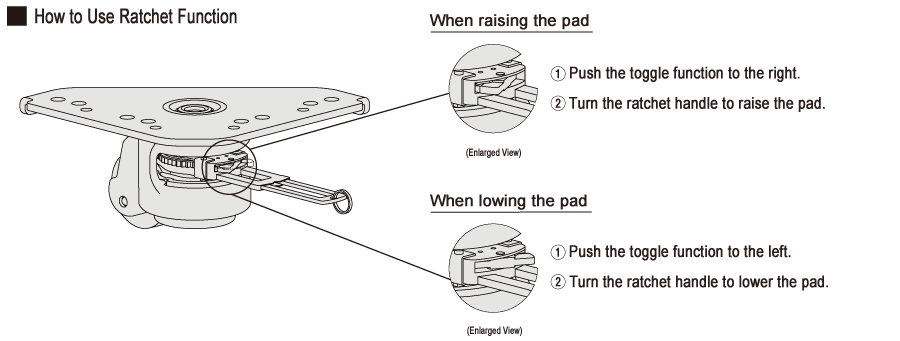

Fixed: Extend the ratchet handle and move it back and forth to lower the pad to the ground.
Basic information
| Type | Screw Mounted Casters | Caster Type | With Leveling Function for Aluminum Extrusion | Material | Aluminum Alloy (ADC) |
|---|
Configure
Basic Attributes
-
Specifications
- Ratchet Handle
- Standard Handle
-
Applicable Frame No.
- 6
- 8
- 8-45
- 10
-
Applicable Frame Size
- 6 Series, 30 mm Square
- 8-45 Series 45 mm Square
- 8 Series, 40 mm Square
- 10 Series 60 mm Square
-
Wheel O.D. D(mm)
- 50
- 63
-
Allowable Load(kgf)
-
Wheel Material
- Monomer Casting Nylon (Blue)
- Nylon (Black)
- Urethane (White)
-
Surface Treatment
- Powder Coating / Zinc Plating (Black)
- Powder Coating / Zinc Plating (Silver)
-
Type
- AFLB
- AFLBR
- AFLS
- AFLSR
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Tech Support
