[Clean & Pack] Spring Pin

[Clean & Pack] Spring Pin
  • Volume Discount

MISUMI

MISUMI

Three types of cleaning methods are available: degreasing, precision cleaning, and electrolytic polishing + precision cleaning. They can be ordered from one piece with the standard part number.
This eliminates the need for customer cleaning or outsourced cleaning, reducing the amount of time and effort required.
■Part Number for Clean & Pack Products
·Degreasing (Anti-rust single packing)　　　　: Part Number SL-□□
·Precision cleaning (Degassing double packing)　　　　: Part Number SH-□□
·Electrolytic polishing + precision cleaning (Degassing double packing): Part Number SHD-□□
Product Part NumberCleaning MethodPackaging TypeEffects Compared to Uncleaned ProductEnvironment (Standard)Possible applications
SL-□□DegreasingAnti-rust packingOil removalGeneral environmentRegular assembly process
Post battery assembly process
SH-□□Precision cleaningDegassing double packingOil removal
Dust removal		Clean environment (Class 10 to 1,000*)Battery assembly process
LCD-related post assembly process
In-vehicle camera assembly process
SHD-□□Electrolytic polishing + precision cleaningDegassing double packingOil removal
Dust removal
Outgas reduction		Vacuum environment
Clean environment (Class 10 to 1,000*)		Pre-semiconductor process
Liquid crystal deposition process
Pre-OLED process
*US FED STD 209E, ISO 14644-1 ISO 4 to ISO 6 Equiv.
■Notes
Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product.
Please be careful about the application location and storage environment.

(i)Remark

  • Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product. Please be careful about the application location and storage environment.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

TypeBody MaterialCleaning Method
[M] MaterialCleaning MethodCleaning EnvironmentPackaging TypePacking Environment
SL-SSPSRSpring Stainless Steel AlloyDegreasingGeneral environmentAnti-rust packingGeneral environment
SH-SSPSRPrecision cleaningClass 1,000*Degassing double packingClass 10**
SHD-SSPSRElectrolytic polishing + precision cleaning
*US FED STD 209E, ISO 14644-1 ISO 6 Equiv.
**US FED STD 209E, ISO 14644-1 ISO 4 Equiv.
[ ! ] Products are packed by order quantity. Ex. If the order is for 20 pieces, they are packed in one package (incl. 20 pieces).
[ ! ] See the details of degreasing, precision cleaning, and electrolytic polishing shown at the bottom of the specification table.

Specification Table

Part Number
SL-SSPSR3-6
SH-SSPSR5-10
SHD-SSPSR10-20
LL Tolerance
5 to 10+ 0.5
0
12 to 50+ 1.0
0
56 to 100+ 1.5
0
Part Number* kNt (Reference)D
TypeD − Lminmax
SL-SSPSR
SH-SSPSR
SHD-SSPSR		2(Table below)2.760.42.152.25
36.20.63.153.25
410.80.84.24.4
517.2515.25.4
624.831.26.26.4
[ ! ] Maximum value of D is the maximum value on the pin's circumference and the minimum value for D is the average of D1, D2, and D3.
Reference: t conforms to JSMA No. 6 (Japan Spring Manufactures Association Standard).
* kN = Minimum Double Shearing Load
[ ! ] The mounting hole diameter for spring pins should be the same as the nominal diameter of the spring pin, with a mounting hole dimension tolerance of H12 as specified in JIS B0401-1.
Part Number
Type
D − L
SL-SSPSR

SH-SSPSR

SHD-SSPSR
2−
5

6

8

10

12

14

16

18

20
3−
6

8

10

12

14

16

18

20

22

25

28

32
4−
8

10

12

14

16

18

20

22

25

28

32

36

40
5−
10

12

14

16

18

20

22

25

28

32

36

40

45

50
6−
12

14

16

18

20

22

25

28

32

36

40

45

50

56
Cleaning Process
·Degreasing (Part Number: SL-□□)

Working Environment: General environment


Alkaline warm pure water


Ultrasonic pure water cleaning
after cleaning with pure water
*3 times
Dry


Anti-rust single packing


·Precision cleaning (Part Number: SH-□□)


Working Environment:
Class 1,000*



Working Environment:
Class 10**


Hydrocarbon cleaning Ro water cleaning

Wash with pure water (10 MΩ·cm) after high-pressure water jet cleaning (Ro water)　
Use pure water (13 MΩ·cm)

Use nitrogen blow


Conducted on a clean bench in a class 10** clean environment

*US FED STD 209E, ISO 14644-1 ISO 6 Equiv.
**US FED STD 209E, ISO 14644-1 ISO 4 Equiv.
·Electrolytic polishing + precision cleaning (Part Number: SHD-□□)


Working Environment:
Class 1,000*



Working Environment:
Class 10**


Hydrocarbon cleaning Ro water cleaning



Electrolytic polishing with an electrolytic polishing layer according to the material

Wash with pure water (10 MΩ·cm) after high-pressure water jet cleaning (Ro water)

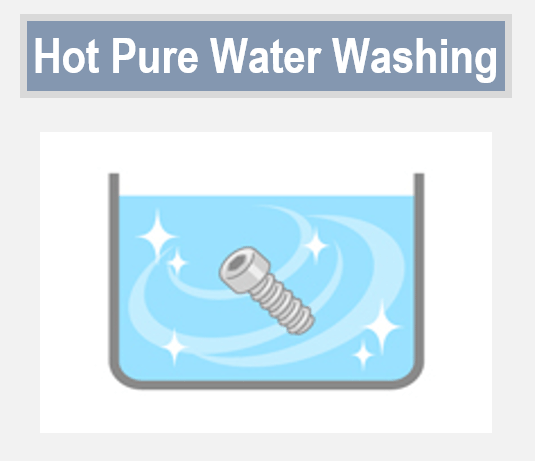

Use warm pure water (13 MΩ·cm)
