[Clean & Pack] Parallel Key
![[Clean & Pack] Parallel Key](http://uk.misumi-ec.com/linked/material/mech/MSM1/PHOTO/110310663839_001.jpg?$product_main$)
- Volume Discount
This eliminates the need for customer cleaning or outsourced cleaning, reducing the amount of time and effort required.
| ·Degreasing (Anti-rust single packing) | : Part Number SL-□□ |
| ·Precision cleaning (Degassing double packing) | : Part Number SH-□□ |
| ·Electrolytic polishing + precision cleaning (Degassing double packing) | : Part Number SHD-□□ |
| Product Part Number | Cleaning Method | Packaging Type | Effects Compared to Uncleaned Product | Environment (Standard) | Possible applications |
| SL-□□ | Degreasing | Anti-rust packing | Oil removal | General environment | Regular assembly process |
| Post battery assembly process | |||||
| SH-□□ | Precision cleaning | Degassing double packing | Oil removal Dust removal | Clean environment (Class 10 to 1,000*) | Battery assembly process |
| LCD-related post assembly process | |||||
| In-vehicle camera assembly process | |||||
| SHD-□□ | Electrolytic polishing + precision cleaning | Degassing double packing | Oil removal Dust removal Outgas reduction | Vacuum environment Clean environment (Class 10 to 1,000*) | Pre-semiconductor process |
| Liquid crystal deposition process | |||||
| Pre-OLED process |
Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product.
Please be careful about the application location and storage environment.
(i)Remark
- Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product.
Please be careful about the application location and storage environment.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
![[Clean & Pack]Parallel Keys: Related Image](http://uk.misumi-ec.com/linked/item/10310663839/img/drw_20.gif)
| Type | Body Material | Cleaning Method | ||||||
| Straight | Both Sides Round | One Side Round | [M] Material | Tensile Strength | Cleaning Method | Cleaning Environment | Packaging Type | Packing Environment |
| SL-KEDS | SL-KESS | SL-KEGS | EN 1.4401 Equiv. | 600 N/mm2 or more | Degreasing | General environment | Anti-rust packing | General environment |
| SH-KEDS | SH-KESS | SH-KEGS | Precision cleaning | Class 1,000* | Degassing double packing | Class 10** | ||
| SHD-KEDS | SHD-KESS | SHD-KEGS | Electrolytic polishing + precision cleaning | |||||
**US FED STD 209E, ISO 14644-1 ISO 4 Equiv.
[ ! ] Products are packed by order quantity. Ex. If the order is for 20 pieces, they are packed in one package (incl. 20 pieces).
[ ! ] See the details of degreasing, precision cleaning, and electrolytic polishing shown at the bottom of the
![[Clean & Pack]Parallel Keys: Related Image](http://content.misumi-ec.com/image/upload/t_msmwm_wyg/v1/p/jp/product/wysiwyg/110310663839/110310663839_001_20230801115852.gif)
specification table.Specification Table
| Part Number |
| SL-KEDS8-20 |
| SH-KEDS8-20 |
| SHD-KEDS8-20 |

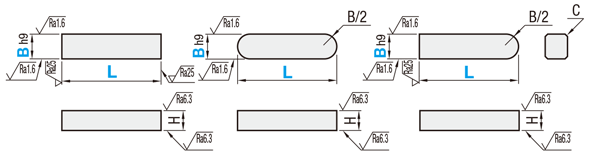

| Part Number | L | H Tolerance | C | |||||||||||||||||||||||||||
| Type | Bh9 | |||||||||||||||||||||||||||||
| 2 | 0 | 6 | 8 | 10 | 15 | 20 | 2 | 0 | 0.16 to 0.25 | |||||||||||||||||||||
| －0.025 | －0.025 | |||||||||||||||||||||||||||||
| 3 | 0 | 6 | 8 | 10 | 12 | 15 | 16 | 18 | 20 | 25 | 30 | 3 | 0 | 0.16 to 0.25 | ||||||||||||||||
| －0.025 | －0.025 | |||||||||||||||||||||||||||||
| 4 | 0 | 8 | 10 | 12 | 15 | 16 | 18 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 4 | 0 | 0.16 to 0.25 | |||||||||||||
| Straight | －0.030 | －0.030 | ||||||||||||||||||||||||||||
| SL-KEDS | 5 | 0 | 10 | 12 | 15 | 16 | 18 | 20 | 22 | 25 | 28 | 30 | 32 | 35 | 40 | 45 | 50 | 55 | 60 | 5 | 0 | 0.25 to 0.40 | ||||||||
| SH-KEDS | －0.030 | －0.030 | ||||||||||||||||||||||||||||
| SHD-KEDS | 6 | 0 | 10 | 12 | 15 | 16 | 18 | 20 | 22 | 25 | 28 | 30 | 32 | 35 | 40 | 45 | 50 | 55 | 60 | 6 | 0 | 0.25 to 0.40 | ||||||||
| －0.030 | －0.030 | |||||||||||||||||||||||||||||
| Both Sides Round | 7 | 0 | 15 | 20 | 22 | 25 | 28 | 30 | 32 | 35 | 40 | 45 | 50 | 60 | 70 | 7 | 0 | 0.25 to 0.40 | ||||||||||||
| SL-KESS | －0.036 | －0.036 | ||||||||||||||||||||||||||||
| SH-KESS | 8 | 0 | 10 | 12 | 15 | 16 | 18 | 20 | 22 | 25 | 28 | 30 | 32 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 80 | 90 | 7 | 0 | 0.25 to 0.40 | ||||
| SHD-KESS | －0.036 | －0.090 | ||||||||||||||||||||||||||||
| 10 | 0 | 15 | 16 | 18 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 80 | 90 | 8 | 0 | 0.40 to 0.60 | ||||||||||
| One Side Round | －0.036 | －0.090 | ||||||||||||||||||||||||||||
| SL-KEGS | 12 | 0 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 80 | 90 | 8 | 0 | 0.40 to 0.60 | ||||||||||||
| SH-KEGS | －0.043 | －0.090 | ||||||||||||||||||||||||||||
| SHD-KEGS | 14 | 0 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 80 | 90 | 9 | 0 | 0.40 to 0.60 | ||||||||||||||
| －0.043 | －0.090 | |||||||||||||||||||||||||||||
| 15 | 0 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 70 | 80 | 90 | 10 | 0 | 0.40 to 0.60 | ||||||||||||||||
| －0.043 | －0.090 | |||||||||||||||||||||||||||||
| 16 | 0 | 40 | 45 | 50 | 55 | 60 | 70 | 80 | 90 | 100 | 10 | 0 | 0.40 to 0.60 | |||||||||||||||||
| －0.043 | －0.090 | |||||||||||||||||||||||||||||
| 18 | 0 | 40 | 45 | 50 | 55 | 60 | 70 | 80 | 90 | 100 | 110 | 11 | 0 | 0.40 to 0.60 | ||||||||||||||||
| －0.043 | －0.110 | |||||||||||||||||||||||||||||
Alterations
| Part Number | — | (LC) |
| SL-KESS6 | — | LC28 |
| Alteration | Code | Spec. | ||||||||||||||||||||||||||||||||||||||||
Full Length![[Clean & Pack]Parallel Keys: Related Image](http://uk.misumi-ec.com/linked/item/10310663839/img/alt_01_001-1.gif) | LC | Cuts L dimension in 1 mm increments.
|
Cleaning Process·Degreasing (Part Number: SL-□□)
Working Environment: General environment | ||||||
|---|---|---|---|---|---|---|
 Alkaline warm pure water |  |  Ultrasonic pure water cleaning after cleaning with pure water *3 times | |  Dry | |  Anti-rust single packing |
Working Environment: Class 1,000* | Working Environment: Class 10** | |||||||
|---|---|---|---|---|---|---|---|---|
Hydrocarbon cleaning Ro water cleaning | |  Wash with pure water (10 MΩ·cm) after high-pressure water jet cleaning (Ro water) | |  Use pure water (13 MΩ·cm) | | Use nitrogen blow | |  Conducted on a clean bench in a Class 10** clean environment |
**US FED STD 209E, ISO 14644-1 ISO 4 Equiv.
Working Environment: Class 1,000* | Working Environment: Class 10** | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Hydrocarbon cleaning Ro water cleaning | |  Electrolytic polishing with an electrolytic polishing layer according to the material | | Wash with pure water (10 MΩ·cm) after high-pressure water jet cleaning (Ro water) | | Use warm pure water (13 MΩ·cm) | | Use nitrogen blow | | Conducted on a clean bench in a Class 10** clean environment |
**US FED STD 209E, ISO 14644-1 ISO 4 Equiv.
Packaging Example| For degreasing: (Part Number: SL-□□)  | For precision cleaning or electrolytic polishing + precision cleaning: (Part Number: SH-□□/SHD-□□)  [ ! ] Both the first and second layer packaging are degassed. |
Cleaning Effectiveness / Recommended Environment for UseCleaning Method | Product Part Number | Packaging Type | Effects Compared to Uncleaned Product | Environment (Standard) | Possible applications |
|---|---|---|---|---|---|
| Degreasing | SL-□□ | Anti-rust packing | Oil removal | General environment | Regular assembly process |
| Post battery assembly process | |||||
| Precision cleaning | SH-□□ | Degassing double packing | Oil removal Dust removal | Clean environment (Class 10 to 1,000*) | Battery assembly process |
| LCD-related post assembly process | |||||
| In-vehicle camera assembly process | |||||
| Electrolytic polishing + precision cleaning | SHD-□□ | Degassing double packing | Oil removal Dust removal Outgas reduction | Vacuum environment Clean environment (Class 10 to 1,000*) | Pre-semiconductor process |
| Liquid crystal deposition process | |||||
| Pre-OLED process |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Shape | Width (mm) | Overall Length (mm) | Cleaning Method | End Shape | Overall Length Change LC (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|
