[Clean & Pack]Scale Plates

[Clean & Pack]Scale Plates
  • Volume Discount

MISUMI

MISUMI

Three types of cleaning methods are available: degreasing, precision cleaning, and electrolytic polishing + precision cleaning. They can be ordered from one piece with the standard part number.
This eliminates the need for customer cleaning or outsourced cleaning, reducing the amount of time and effort required.
■Part Number for Clean & Pack Products
·Degreasing (Anti-rust single packing)　　　　 : Part Number SL-□□
·Precision cleaning (Degassing double packing)　　　　 : Part Number SH-□□
·Electrolytic polishing + precision cleaning (Degassing double packing) : Part Number SHD-□□
Product Part Number Cleaning Method Packaging Type Effects Compared to Uncleaned Product Environment (Standard) Possible applications
SL-□□ Degreasing Anti-rust packing Oil removal General environment Regular assembly process
Post battery assembly process
SH-□□ Precision cleaning Degassing double packing Oil removal
Dust removal		 Clean environment (Class 10 to 1,000*) Battery assembly process
LCD-related post assembly process
In-vehicle camera assembly process
SHD-□□ Electrolytic polishing + precision cleaning Degassing double packing Oil removal
Dust removal
Outgas reduction		 Vacuum environment
Clean environment (Class 10 to 1,000*)		 Pre-semiconductor process
Liquid crystal deposition process
Pre-OLED process
*US FED STD 209E, ISO 14644-1 ISO 4 to ISO 6 Equiv.
■Notes
Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product.
Please be careful about the application location and storage environment.

(i)Remark

  • Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product.
    Please be careful about the application location and storage environment.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

[Clean & Pack]Scale Plates: Related Image SL-MEPLSH
SH-MEPLSH SL-MEPRSH
SH-MEPRSH SL-MEPCSH
SH-MEPCSH SL-MEPLS
SH-MEPLS SL-MEPRS
SH-MEPRS SL-MEPCS
SH-MEPCS
WidthType[M] MaterialMounting SpecificationCleaning Method
Zero Point Position
Left EndRight EndCenter (Divided)Cleaning MethodCleaning EnvironmentPackaging TypePacking Environment
8 mmSL-MEPLSHSL-MEPRSHSL-MEPCSHEN 1.4301 Equiv.With mounting holeDegreasingGeneral environmentAnti-rust packingGeneral environment
SH-MEPLSHSH-MEPRSHSH-MEPCSHPrecision cleaningClass 1,000*Degassing double packingClass 10**
12 mmSL-MEPLSSL-MEPRSSL-MEPCSDegreasingGeneral environmentAnti-rust packingGeneral environment
SH-MEPLSSH-MEPRSSH-MEPCSPrecision cleaningClass 1,000*Degassing double packingClass 10**
*US FED STD 209E, ISO 14644-1 ISO 6 Equiv.
**US FED STD 209E, ISO 14644-1 ISO 4 Equiv.
[ ! ] Products are packed by order quantity. Ex. If the order is for 20 pieces, they are packed in one package (incl. 20 pieces).
[ ! ] See the details of degreasing, precision cleaning, and electrolytic polishing shown at the bottom of the specification table.
[!] For types with no T dimension listed, T = 0.5. For adhesive tapes, NITTO500 is used. (Plate thickness [T] does not include tape thickness)

Specification Table

Part Number
SL-MEPLSH−200
■Scale Plates Width 12 mm Zero at Left/Right
Zero Point
Position		Part Number
TypeL
Left EndSL-MEPLS
SH-MEPLS		100
200
Right EndSL-MEPRS
SH-MEPRS		100
200
■Scale Plates Width 8 mm Type
Zero Point
Position		Part Number
TypeL
Left EndSL-MEPLSH
SH-MEPLSH		100
200
Right EndSL-MEPRSH
SH-MEPRSH
CenterSL-MEPCSH
SH-MEPCSH		300
■Scale Plates Width 12 mm Center Divided Type
Zero Point
Position		Part Number
TypeL
CenterSL-MEPCS300
SH-MEPCS

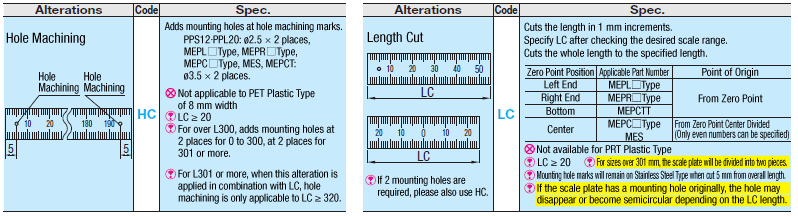

Alterations
