[Clean & Pack]Hooks
![[Clean & Pack]Hooks](http://uk.misumi-ec.com/linked/material/mech/MSM1/PHOTO/110310769859_001.jpg?$product_main$)
- Volume Discount
Three types of cleaning methods are available: degreasing, precision cleaning, and electrolytic polishing + precision cleaning. They can be ordered from one piece with the standard part number.
This eliminates the need for customer cleaning or outsourced cleaning, reducing the amount of time and effort required.
This eliminates the need for customer cleaning or outsourced cleaning, reducing the amount of time and effort required.
■Part Number for Clean & Pack Products
| ·Degreasing (Anti-rust single packing) | : Part Number SL-□□ |
| ·Precision cleaning (Degassing double packing) | : Part Number SH-□□ |
| ·Electrolytic polishing + precision cleaning (Degassing double packing) | : Part Number SHD-□□ |
| Product Part Number | Cleaning Method | Packaging Type | Effects Compared to Uncleaned Product | Environment (Standard) | Possible applications |
| SL-□□ | Degreasing | Anti-rust packing | Oil removal | General environment | Regular assembly process |
| Post battery assembly process | |||||
| SH-□□ | Precision cleaning | Degassing double packing | Oil removal Dust removal | Clean environment (Class 10 to 1,000*) | Battery assembly process |
| LCD-related post assembly process | |||||
| In-vehicle camera assembly process | |||||
| SHD-□□ | Electrolytic polishing + precision cleaning | Degassing double packing | Oil removal Dust removal Outgas reduction | Vacuum environment Clean environment (Class 10 to 1,000*) | Pre-semiconductor process |
| Liquid crystal deposition process | |||||
| Pre-OLED process |
■Notes
Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product.
Please be careful about the application location and storage environment.
Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product.
Please be careful about the application location and storage environment.
[Features]·Stainless steel (EN 1.4301 Equiv.) hooks. Also suitable for mounting on aluminum extrusions.
(i)Remark
- Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product.
Please be careful about the application location and storage environment.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers

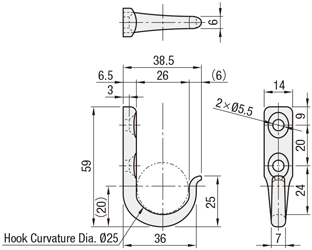

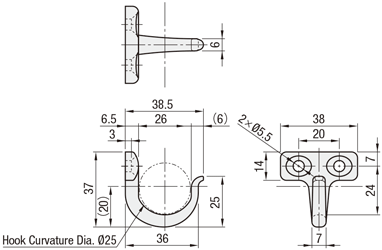

| J Shape SL-HKKJ SH-HKKJ SHD-HKKJ |  | T Shape SL-HKKT SH-HKKT SHD-HKKT | ![[Clean & Pack]Hooks: Related Image](http://uk.misumi-ec.com/linked/item/10310769859/img/drw_04.gif) |
| Type | [M] Material | [S] Surface Treatment | Cleaning Method | ||||
| J Shape | T Shape | Cleaning Method | Cleaning Environment | Packaging Type | Packing Environment | ||
| SL-HKKJ | SL-HKKT | EN 1.4301 Equiv. | Buff Polished | Degreasing | General environment | Anti-rust packing | General environment |
| SH-HKKJ | SH-HKKT | Precision cleaning | Class 1,000* | Degassing double packing | Class 10** | ||
| SHD-HKKJ | SHD-HKKT | Electrolytic polishing + precision cleaning | |||||
**US FED STD 209E, ISO 14644-1 ISO 4 Equiv.
[!] Products are packed by order quantity. Ex. If the order is for 20 pieces, they are packed in one package (incl. 20 pieces).
[!] See the
details of degreasing, precision cleaning, and electrolytic polishing shown at the bottom of the specification table.Specification Table
| Part Number |
| SL-HKKJ |
| SHD-HKKT |
| Part Number | Allowable Load (N) | Mass (g) |
| Type | ||
| SL-HKKJ SH-HKKJ SHD-HKKJ | 196 | 36 |
| Part Number | Allowable Load (N) | Mass (g) |
| Type | ||
| SL-HKKT SH-HKKT SHD-HKKT | 196 | 45 |
■Recommended Screws and Nuts when Mounting on the Aluminum Extrusions
| Applicable Extrusion | Bolt | Qty. | Post-Assembly Insertion Nuts | Qty. |
| 5 Series | SHFBS5−8 | 2 | SHNTP5−5 | 2 |
| 6 Series | SHFBS5−10 | SHNTP6−5 | ||
| 8, 8-45 series | SHFBS5−15 | SHNTP8−5 |
Cleaning Process· Degreasing (Part Number: SL-□□)
Working Environment: General environment | ||||||
|---|---|---|---|---|---|---|
 Alkaline warm pure water |  |  Ultrasonic pure water cleaning after cleaning with pure water *3 times | |  Dry | |  Anti-rust single packing |
· Precision cleaning (Part Number: SH-□□)
Working Environment: Class 1,000* | Working Environment: Class 10** | |||||||
|---|---|---|---|---|---|---|---|---|
Hydrocarbon cleaningRo water cleaning | |  Wash with pure water (10 MΩ·cm) after high-pressure water jet cleaning (Ro water) | |  Use pure water (13 MΩ·cm) | | Use nitrogen blow | |  Conducted on a clean bench in a Class 10** clean environment |
**US FED STD 209E, ISO 14644-1 ISO 4 Equiv.
· Electrolytic polishing + precision cleaning (Part Number: SHD-□□)
Working Environment: Class 1,000* | Working Environment: Class 10** | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Hydrocarbon cleaning Ro water cleaning | |  Electrolytic polishing with an electrolytic polishing layer according to the material | | Wash with pure water (10 MΩ·cm) after high-pressure water jet cleaning (Ro water) | | Use warm pure water (13 MΩ·cm) | | Use nitrogen blow | | Conducted on a clean bench in a Class 10** clean environment |
**US FED STD 209E, ISO 14644-1 ISO 4 Equiv.
Packaging Example| For degreasing: (Part Number: SL-□□)  | For precision cleaning or electrolytic polishing + precision cleaning: (Part Number: SH-□□/SHD-□□)  [ ! ] Both the first and second layer packaging are degassed. |
Cleaning Effectiveness / Recommended Environment for UseCleaning Method | Product Part Number | Packaging Type | Effects Compared to Uncleaned Product | Environment (Standard) | Possible applications |
|---|---|---|---|---|---|
| Degreasing | SL-□□ | Anti-rust packing | Oil removal | General environment | Regular assembly process |
| Post battery assembly process | |||||
| Precision cleaning | SH-□□ | Degassing double packing | Oil removal Dust removal | Clean environment (Class 10 to 1,000*) | Battery assembly process |
| LCD-related post assembly process | |||||
| In-vehicle camera assembly process | |||||
| Electrolytic polishing + precision cleaning | SHD-□□ | Degassing double packing | Oil removal Dust removal Outgas reduction | Vacuum environment Clean environment (Class 10 to 1,000*) | Pre-semiconductor process |
| Liquid crystal deposition process | |||||
| Pre-OLED process |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Loading...
Basic information
| Shape | Single Hooks | Hook Material | Stainless Steel (EN 1.4301 Equiv.) | Fixing Method | Screw Fixing Type |
|---|---|---|---|---|---|
| Allowable Load(N) | 196 | Properties / Applications (unused) | Clean washing | Environmental Compliance (Unused) | RoHS compliant (10 substances) |
| Surface Treatment | Buff Polished |
Configure
Basic Attributes
-
Shape
- J Shape
- T Shape
-
Type
- SH-HKKJ
- SH-HKKT
- SHD-HKKJ
- SHD-HKKT
- SL-HKKJ
- SL-HKKT
-
Cleaning Method
- Degreasing
- Precision Cleaning
- Electrolytic polishing + precision cleaning
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 7 Days or Less
Optional Attributes
