[Clean & Pack]Flexible Hoses - High Pressure Type
![[Clean & Pack]Flexible Hoses - High Pressure Type](http://uk.misumi-ec.com/linked/material/mech/MSM1/PHOTO/110310785069_001.jpg?$product_main$)
Three types of cleaning methods are available: degreasing, precision cleaning, and electrolytic polishing + precision cleaning. They can be ordered from one piece with the standard part number.
This eliminates the need for customer cleaning or outsourced cleaning, reducing the amount of time and effort required.
This eliminates the need for customer cleaning or outsourced cleaning, reducing the amount of time and effort required.
■Part Number for Clean & Pack Products
| ·Degreasing (Anti-rust single packing) | : Part Number SL-□□ |
| ·Precision cleaning (Degassing double packing) | : Part Number SH-□□ |
| ·Electrolytic polishing + precision cleaning (Degassing double packing) | : Part Number SHD-□□ |
| Product Part Number | Cleaning Method | Packaging Type | Effects Compared to Uncleaned Product | Environment (Standard) | Possible applications |
| SL-□□ | Degreasing | Anti-rust packing | Oil removal | General environment | Regular assembly process |
| Post battery assembly process | |||||
| SH-□□ | Precision cleaning | Degassing double packing | Oil removal Dust removal | Clean environment (Class 10 to 1,000*) | Battery assembly process |
| LCD-related post assembly process | |||||
| In-vehicle camera assembly process | |||||
| SHD-□□ | Electrolytic polishing + precision cleaning | Degassing double packing | Oil removal Dust removal Outgas reduction | Vacuum environment Clean environment (Class 10 to 1,000*) | Pre-semiconductor process |
| Liquid crystal deposition process | |||||
| Pre-OLED process |
■Notes
Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product.
Please be careful about the application location and storage environment.
Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product.
Please be careful about the application location and storage environment.
[Features]·High-pressure type flexible hose with excellent heat and pressure resistance.
(i)Remark
- Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product.
Please be careful about the application location and storage environment.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
![[Clean & Pack]Flexible Hoses - High Pressure Type: Related Image](http://uk.misumi-ec.com/linked/item/10310785069/img/drw_01.gif)
| Type | [M] Material | [ ! ] Applicable Fluids | Operating Temp. Range | Max. Operating Pressure | Cleaning Method | |||||
| Hose | Swage Fittings | Seal Areas | Cleaning Method | Cleaning Environment | Packaging Type | Packing Environment | ||||
| SH-HOSLTR | EN 1.4301 Equiv. | EN 1.4301 Equiv. | Silicone Rubber | Steam, Water, Oil, Air, Gas | −50 to 280°C (Steam: 150°C or less) | Refer to specification table. | Precision cleaning | Class 1,000* | Degassing double packing | Class 10** |
**US FED STD 209E, ISO 14644-1 ISO 4 Equiv.
[!] Products are packed by order quantity. Ex. If the order is for 20 pieces, they are packed in one package (incl. 20 pieces).
[!] See the
details of degreasing, precision cleaning, and electrolytic polishing shown at the bottom of the specification table.[ ! ] Not applicable for air conditioner cooling medium, etc.
[ ! ] Not applicable for trichloroethane (aromatic materials).
[ ! ] Not applicable for fuel oils.
Specification Table
| Part Number | — | Hose Length | — | Shape L | — | Shape R |
| SH-HOSLTR15A | — | 2.0 | — | LA | — | RB |
■Hose dimensions
[ ! ] For gases, operating pressure is 1.5 MPa or less.
| Hose Nominal I.D. | I.D. | Min. Bending Radius (mm) | [ ! ] Max. Operating Pressure (MPa) |
| 8 A | 7.0 | 25 | 6.4 |
| 10 A | 10.5 | 30 | 6.4 |
| 15 A | 13.2 | 35 | 4.4 |
| 20 A | 19.2 | 40 | 3.4 |
| 25 A | 25.5 | 50 | 3.4 |

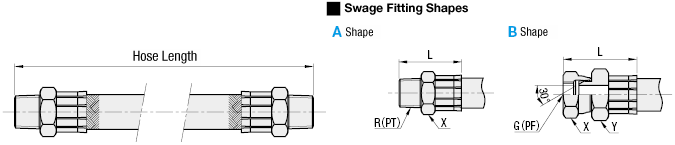

■Swage fittings size list
| Hose Nominal I.D. | R (PT) G (PF) | Shape A | Shape B | |||
| X (Wrench Flats) | L | X (Wrench Flats) | Y (Wrench Flats) | L | ||
| 8 A | 1/4 | 17 | 36 | 17 | 19 | 41 |
| 10 A | 3/8 | 19 | 38 | 19 | 22 | 43 |
| 15 A | 1/2 | 22 | 45 | 22 | 27 | 49 |
| 20 A | 3/4 | 30 | 64 | 30 | 36 | 68 |
| 25 A | 1 | 36 | 68 | 36 | 41 | 72 |
| Part Number | Hose Length 0.1 m Increments | L Left End Swaged Shape | R Right End Swaged Shape | Hose inner diameter (mm) | |
| Type | Hose Nominal I.D. | ||||
| SH-HOSLTR | 8 A | 0.3 to 0.8 | LA LB | RA RB | 7.0 |
| 10 A | 10.5 | ||||
| 15 A | 13.2 | ||||
| 20 A | 19.2 | ||||
| 25 A | 25.5 | ||||
■Swage Fitting Structure (Shape B)
·A shape has integral structure of nut for fittings (X) and hose
·A shape has integral structure of nut for fittings (X) and hose
Installation Method
| Incorrect | Correct | ||||
|---|---|---|---|---|---|
| Excessively small bend radius will dramatically shorten the hose's service life. |  | × | Use pipes for tight radius sections and keep the hoses within allowed bend radius ranges. |  | ○ |
| Repeatedly flexed sections require extra cautions. |  | × | Use the curved pipes, and mount tubes in order to form U-shapes. |  | ○ |
| Hose twisting loads due to repeated horizontal motion are very dangerous. |  | × | Avoid excessive curvatures by attaching rollers that turn with movements of the hose. |  | ○ |
| The hose will be twisted if rotary motions are applied to the mounting points. |  | × | Avoid the hose twists by mounting rotary fittings. |  | ○ |
| The hose will twist if not mounted in-line with the direction of motion. |  | × | Be sure to mount the hose in-line with the direction of motion. |  | ○ |
App. Example
Cautions/Prohibitions
- The inside of the hose can be cleaned.
- When twisted, it may easily crack.
Cleaning Process·Degreasing (Part Number: SL-□□)
Working Environment: General environment | ||||||
|---|---|---|---|---|---|---|
 Alkaline warm pure water |  |  Ultrasonic pure water cleaning after cleaning with pure water *3 times | |  Dry | |  Anti-rust single packing |
·Precision cleaning (Part Number: SH-□□)
Working Environment: Class 1,000* | Working Environment: Class 10** | |||||||
|---|---|---|---|---|---|---|---|---|
Hydrocarbon cleaning Ro water cleaning | |  After high-pressure water jet cleaning (Ro water), wash with pure water (10 MΩ·cm) | |  Use pure water (13 MΩ·cm) | | Use nitrogen blow | |  Conducted on a clean bench in a Class 10** clean environment |
**US FED STD 209E, ISO 14644-1 ISO 4 Equiv.
·Electrolytic polishing + precision cleaning (Part Number: SHD-□□)
Working Environment: Class 1,000* | Working Environment: Class 10** | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Hydrocarbon cleaning Ro water cleaning | |  Electrolytic polishing with an electrolytic polishing layer according to the material | | After high-pressure water jet cleaning (Ro water), wash with pure water (10 MΩ·cm) | | Use warm pure water (13 MΩ·cm) | | Use nitrogen blow | | Conducted on a clean bench in a Class 10** clean environment |
**US FED STD 209E, ISO 14644-1 ISO 4 Equiv.
Packaging Example| For degreasing: (Part Number: SL-□□)  | For precision cleaning or electrolytic polishing + precision cleaning: (Part Number: SH-□□/SHD-□□)  [!] Both the first and second layer packaging are degassed. |
Cleaning Effectiveness / Recommended Environment for UseCleaning Method | Product Part Number | Packaging Type | Effects Compared to Uncleaned Product | Environment (Standard) | Possible applications |
|---|---|---|---|---|---|
| Degreasing | SL-□□ | Anti-rust packing | Oil removal | General environment | Regular assembly process |
| Post battery assembly process | |||||
| Precision cleaning | SH-□□ | Degassing double packing | Oil removal Dust removal | Clean environment (Class 10 to 1,000*) | Battery assembly process |
| LCD-related post assembly process | |||||
| In-vehicle camera assembly process | |||||
| Electrolytic polishing + precision cleaning | SHD-□□ | Degassing double packing | Oil removal Dust removal Outgas reduction | Vacuum environment Clean environment (Class 10 to 1,000*) | Pre-semiconductor process |
| Liquid crystal deposition process | |||||
| Pre-OLED process |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Loading...
| Part Number | Minimum order quantity | Volume Discount | I.D. (mm) | Maximum Pressure Used (Range) (MPa) | Hose Length (m) | Metal Fitting Type L | Metal Fitting Type R | Max. Operating Pressure (MPa) | Min. Bending Radius (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 10 Days | 7.0 | 5.1～ | 0.3 ～ 0.8 | Shape A / Shape B | Shape A / Shape B | 6.4 | 25 | ||
| 1 | 10 Days | 10.5 | 5.1～ | 0.3 ～ 0.8 | Shape A / Shape B | Shape A / Shape B | 6.4 | 30 | ||
| 1 | 10 Days | 13.2 | 3.1～5.0 | 0.3 ～ 0.8 | Shape A / Shape B | Shape A / Shape B | 4.4 | 35 | ||
| 1 | 10 Days | 19.2 | 3.1～5.0 | 0.3 ～ 0.8 | Shape A / Shape B | Shape A / Shape B | 3.4 | 40 | ||
| 1 | 10 Days | 25.5 | 3.1～5.0 | 0.3 ～ 0.8 | Shape A / Shape B | Shape A / Shape B | 3.4 | 45 |
Loading...
Specifications/Overview
■Application
·Plumbing in places where ambient temperature is high (with vapor, etc.).
·Absorbs variation in elongation of pipe due to temperature change.
■ Features
·Excellent in heat resistance and pressure resistance.
■ CAUTION
·Avoid use in places where hose is constantly moved.
·Plumbing in places where ambient temperature is high (with vapor, etc.).
·Absorbs variation in elongation of pipe due to temperature change.
■ Features
·Excellent in heat resistance and pressure resistance.
■ CAUTION
·Avoid use in places where hose is constantly moved.
Basic information
| Type | Flexible Hoses | Environmentally Friendly | RoHS non-compliant | Properties / applications | Clean washing |
|---|---|---|---|---|---|
| Applicable Fluid | Steam / Water / Gas / Oil / Air | Hose Material | EN 1.4301 Equiv. | Connection Part Type | Crimp Fitting |
| Swage Fitting Connection Shape | Male Thread x Male Thread / Female Thread x Female Thread / Male Thread x Female Thread | Swage Fitting Type | Tapered Male Thread × Tapered Male Thread / Tapered Male Thread x Parallel Female Thread / Parallel Female Thread x Parallel Female Thread | Hose Reinforcement | Provided |
| Operating Temperature Range(°C) | -50:: 280 (Steam: 150°C) | Cleaning Method | Precision Cleaning | Fitting Material | EN 1.4301 Equiv. |
Configure
Basic Attributes
-
I.D.(mm)
-
Maximum Pressure Used (Range)(MPa)
- 3.1～5.0
- 5.1～
-
Hose Length(m)
-
Metal Fitting Type L
- Shape A
- Shape B
-
Metal Fitting Type R
- Shape A
- Shape B
-
Max. Operating Pressure(MPa)
- 3.4
- 4.4
- 6.4
-
Min. Bending Radius(mm)
-
Type
- SH-HOSLTR
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 10 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
