[Clean & Pack]Flexible Hoses - Low Pressure (Non-Welded) Type

[Clean & Pack]Flexible Hoses - Low Pressure (Non-Welded) Type
  • Volume Discount

MISUMI

MISUMI

Three types of cleaning methods are available: degreasing, precision cleaning, and electrolytic polishing + precision cleaning. They can be ordered from one piece with the standard part number.
This eliminates the need for customer cleaning or outsourced cleaning, reducing the amount of time and effort required.
■Part Number for Clean & Pack Products
·Degreasing (Anti-rust single packing)　　　　 : Part Number SL-□□
·Precision cleaning (Degassing double packing)　　　　 : Part Number SH-□□
·Electrolytic polishing + precision cleaning (Degassing double packing) : Part Number SHD-□□
Product Part Number Cleaning Method Packaging Type Effects Compared to Uncleaned Product Environment (Standard) Possible applications
SL-□□ Degreasing Anti-rust packing Oil removal General environment Regular assembly process
Post battery assembly process
SH-□□ Precision cleaning Degassing double packing Oil removal
Dust removal		 Clean environment (Class 10 to 1,000*) Battery assembly process
LCD-related post assembly process
In-vehicle camera assembly process
SHD-□□ Electrolytic polishing + precision cleaning Degassing double packing Oil removal
Dust removal
Outgas reduction		 Vacuum environment
Clean environment (Class 10 to 1,000*)		 Pre-semiconductor process
Liquid crystal deposition process
Pre-OLED process
*US FED STD 209E, ISO 14644-1 ISO 4 to ISO 6 Equiv.
■Notes
Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product.
Please be careful about the application location and storage environment.

[Features]·Low pressure (non-welded) flexible hose suitable for vibration absorption.

(i)Remark

  • Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product.
    Please be careful about the application location and storage environment.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

[Clean & Pack]Flexible Hoses - Low Pressure (Non-Welded) Type: Related Image
Type[M] MaterialApplicable FluidsOperating Temp.
Range		Max.
pressure		Cleaning Method
HoseMetal Fitting ShapeCleaning MethodCleaning EnvironmentPackaging TypePacking Environment
SH-HOEJFSEN 1.4301 Equiv.EN 1.4308 Equiv. (EN 1.4301 Equiv.)Steam, Oil, Air, Water0 to 100°C1.0 MPaPrecision cleaningClass 1,000*Degassing double packingClass 10**
*US FED STD 209E, ISO 14644-1 ISO 6 Equiv.
**US FED STD 209E, ISO 14644-1 ISO 4 Equiv.
[!] Products are packed by order quantity. Ex. If the order is for 20 pieces, they are packed in one package (incl. 20 pieces).
[!] See the details of degreasing, precision cleaning, and electrolytic polishing shown at the bottom of the specification table.

Specification Table

Part Number—Hose Length—Shape L—Shape R
SH-HOEJFS15A—1.5—LA—RB
■Hose dimensions
Hose
Nominal I.D.		I.D.
(mm)		O.D.
(mm)		Min. Bending Radius
(mm)		Constant Screw
(N/mm)		Max. Operating Pressure
(MPa)
10 A10.516.3353470.81.0
15 A1319.6502642.5
20 A1926.9653947.2
25 A25.234803457.1
■Swage fittings size list
Hose
Nominal I.D.		R (PT)
Rc (PT)		Shape AShape B
H2LH1L
10 A3/819512451
15 A1/22456.52756.5
20 A3/42761.53261.5
25 A13568.54168.5
Part NumberHose Length
0.1 m Increments		L
Left end swaged shape		R
Right end swaged shape
TypeHose
Nominal I.D.
SH-HOEJFS10 A0.3 to 0.8LA
LB		RA
RB
15 A
20 A
25 A
[!] Left and right end swaged shapes can now be selected. "LA-RB" unless specified.

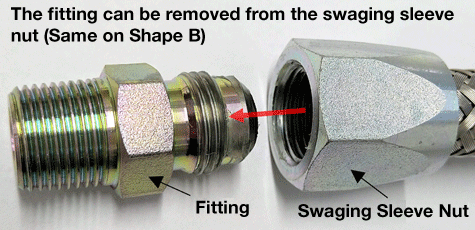

■Swage Fitting Structure (Example: Shape A)

Installation Method

IncorrectCorrect
Excessively small bend radius will dramatically shorten the hose's service life.Related Image 1_Installation Method ×Use pipes for tight radius sections and keep the hoses within allowed bend radius ranges.Related Image 6_Installation Method○
Repeatedly flexed sections require extra cautions.Related Image 2_Installation Method ×Use the curved pipes, and mount tubes in order to form U-shapes.Related Image 7_Installation Method○
Hose twisting loads due to repeated horizontal motion are very dangerous.Related Image 3_Installation Method ×Avoid excessive curvatures by attaching rollers that turn with movements of the hose.Related Image 8_Installation Method○
The hose will be twisted if rotary motions are applied to the mounting points.Related Image 4_Installation Method ×Avoid the hose twists by mounting rotary fittings.Related Image 9_Installation Method○
The hose will twist if not mounted in-line with the direction of motion.Related Image 5_Installation Method ×Be sure to mount the hose in-line with the direction of motion.Related Image 10_Installation Method○

App. Example

Flexible Hoses - Low Pressure (Non-Welded) Type, PT Male / PT Female Related Image 1_ App. Example
Flexible Hoses - Low Pressure (Non-Welded) Type, PT Male / PT Female Related Image 2_ App. Example

Flexible Hoses - Low Pressure (Non-Welded) Type, PT Male / PT Female Related Image 3_ App. Example
Flexible Hoses - Low Pressure (Non-Welded) Type, PT Male / PT Female Related Image 4_ App. Example


Cautions/Prohibitions

  • No surface treatment is applied on flange circumference.
  • The hex parts at both ends of the hose do not rotate.
Cleaning Process
·Degreasing (Part Number: SL-□□)

Working Environment: General environment


Alkaline warm pure water


Ultrasonic pure water cleaning
after cleaning with pure water
*3 times
Dry


Anti-rust single packing


·Precision cleaning (Part Number: SH-□□)


Working Environment: Class 1,000*



Working Environment: Class 10**


Hydrocarbon cleaning
Ro water cleaning
After high-pressure water jet cleaning (Ro water),
wash with pure water (10 MΩ·cm)
Use pure water (13 MΩ·cm)

Use nitrogen blow

Conducted on a clean bench
in a Class 10** clean environment
*US FED STD 209E, ISO 14644-1 ISO 6 Equiv.
**US FED STD 209E, ISO 14644-1 ISO 4 Equiv.
·Electrolytic polishing + precision cleaning (Part Number: SHD-□□)


Working Environment: Class 1,000*



Working Environment: Class 10**


Hydrocarbon cleaning
Ro water cleaning
Electrolytic polishing with an electrolytic polishing layer
according to the material
After high-pressure water jet cleaning (Ro water),
wash with pure water (10 MΩ·cm)
Use warm pure water (13 MΩ·cm)

Use nitrogen blow


Conducted on a clean bench
in a Class 10** clean environment
*US FED STD 209E, ISO 14644-1 ISO 6 Equiv.
**US FED STD 209E, ISO 14644-1 ISO 4 Equiv.
Packaging Example
For degreasing:
(Part Number: SL-□□)
For precision cleaning or electrolytic polishing + precision cleaning:
(Part Number: SH-□□/SHD-□□)

[!] Both the first and second layer packaging are degassed.
Cleaning Effectiveness / Recommended Environment for Use

Cleaning Method

Product Part Number

Packaging Type

Effects Compared to Uncleaned Product

Environment (Standard)

Possible applications

DegreasingSL-□□Anti-rust packingOil removalGeneral environmentRegular assembly process
Post battery assembly process
Precision cleaningSH-□□Degassing double packingOil removal
Dust removal		Clean environment (Class 10 to 1,000*)Battery assembly process
LCD-related post assembly process
In-vehicle camera assembly process
Electrolytic polishing + precision cleaningSHD-□□Degassing double packingOil removal
Dust removal
Outgas reduction		Vacuum environment
Clean environment (Class 10 to 1,000*)		Pre-semiconductor process
Liquid crystal deposition process
Pre-OLED process
*US FED STD 209E, ISO 14644-1 ISO 4 to ISO 6 Equiv.
