[Clean & Pack]Coupling - Slit, Clamping, Short/Long
![[Clean & Pack]Coupling - Slit, Clamping, Short/Long](http://uk.misumi-ec.com/linked/material/mech/MSM1/PHOTO/110310808109_001.jpg?$product_main$)
Three types of cleaning methods are available: degreasing, precision cleaning, and electrolytic polishing + precision cleaning. They can be ordered from one piece with the standard part number.
This eliminates the need for customer cleaning or outsourced cleaning, reducing the amount of time and effort required.
This eliminates the need for customer cleaning or outsourced cleaning, reducing the amount of time and effort required.
■Part Number for Clean & Pack Products
| · Degreasing (Anti-rust single packing) | : Part Number SL-□□ |
| · Precision cleaning (Degassing double packing) | : Part Number SH-□□ |
| · Electrolytic polishing + precision cleaning (Degassing double packing) | : Part Number SHD-□□ |
| Product Part Number | Cleaning Method | Packaging Type | Effects Compared to Uncleaned Product | Environment (Standard) | Possible applications |
| SL-□□ | Degreasing | Anti-Rust Packing | Oil removal | General Environment | Regular assembly process |
| Post battery assembly process | |||||
| SH-□□ | Precision Cleaning | Degassing Double Packing | Oil removal Dust removal | Clean environment (Class 10 to 1,000*) | Battery assembly process |
| LCD-related post assembly process | |||||
| In-vehicle camera assembly process | |||||
| SHD-□□ | Electrolytic polishing + precision cleaning | Degassing Double Packing | Oil removal Dust removal Outgas reduction | Vacuum environment Clean environment (Class 10 to 1,000*) | Pre-semiconductor process |
| Liquid crystal deposition process | |||||
| Pre-OLED process |
■Notes
Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product.
Please be careful about the application location and storage environment.
Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product.
Please be careful about the application location and storage environment.
A coupling that has a completely integrated structure with a slit cylindrical material.
[Features]
· 0 backlash.
· Short. All stainless steel type is also standardized.
·A metal spring coupling that has a completely integrated structure with a slit cylindrical material.
·A slit leaf spring allows for angular and axial misalignment.
[Applications]
·For transfer mechanism, XY stages, parts feeders, etc.
(i)Remark
- Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product.
Please be careful about the application location and storage environment.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
Standard | Short |
* d1, d2 Identical Diameter = d1 + 0.5
d1, d2 Different Diameters = Large Shaft Diameter + 0.5
[ ! ] Recommended Tolerance of Shaft Diameter: h7.
[ ! ] The lateral, angular, and axial misalignment values shown are for each occurring individually. When multiple misalignments are occurring simultaneously, the allowable maximum value of each will be reduced to 1/2.
[ ! ] See here for selection criteria.
[ ! ] Tolerances for d1 and d2 are values before slit machining.
| Type | [M] Material | Cleaning Method | |||||
| Standard | Short | Main Body | Hex Socket Head Cap Screw | Cleaning Method | Cleaning Environment | Packaging Type | Packing Environment |
| SL-CPLSC | SL-CPSSC | Stainless steel | Stainless steel | Degreasing | General Environment | Anti-Rust Packing | General Environment |
| SH-CPLSC | SH-CPSSC | Precision Cleaning | Class 1,000* | Degassing Double Packing | Class 10** | ||
**US FED STD 209E, ISO 14644-1 ISO 4 Equiv.
[ ! ] Products are packed by order quantity. Ex. If the order is for 20 pieces, they are packed in one package (incl. 20 pieces).
[ ! ] See the
details of degreasing, precision cleaning, and electrolytic polishing shown at the bottom of the specification table.Specification Table
| Part Number | — | Shaft Bore Dia. d1 | — | Shaft Bore Dia. d2 |
| SL-CPLSC16 | — | 5 | — | 6 |
| SH-CPSSC20 | — | 6 | — | 6 |
| Part Number | d1 | d2 | L | ℓ | M (Coarse) | A | F | Slip Torque (N⋅m) | Available Size | ||||||||||||||||||||
| Type | D | Standard | Short | Standard | Short | Standard | Short | Standard | Short | SL-CPLSC | SH-CPLSC | SL-CPSSC | SH-CPSSC | ||||||||||||||||
| Standard SL-CPLSC SH-CPLSC Short SL-CPSSC SH-CPSSC | 12 | * 4 | *4 | *5 | 18.5 | 14 | 5 | 5.2 | M2 | 4 | 2.5 | 2.6 | — | — | ● | ● | ● | ● | |||||||||||
| * 5 | *5 | ||||||||||||||||||||||||||||
| 16 | * 5 | *5 | *6 | 23 | 18 | 6.5 | 6.8 | M2.5 | 5 | 3.25 | 3.4 | — | — | ● | ● | ● | ● | ||||||||||||
| * 6 | *6 | ||||||||||||||||||||||||||||
| 20 | * 5 | *6 | 6.35 | *8 | 26 | 20 | 7.5 | 7.65 | 6.5 | 3.75 | 3.8 | — | 0.9 | ● | ● | ● | ● | ||||||||||||
| * 6 | *6 | 6.35 | 7 | *8 | — | ||||||||||||||||||||||||
| 6.35 | 8 | ||||||||||||||||||||||||||||
| * 8 | *8 | ||||||||||||||||||||||||||||
| 25 | * 5 | *6 | 31 | 25 | 8.5 | 9.6 | M3 | 9 | 4.25 | 4.8 | 0.7 | 1.2 | ● | ● | ● | ● | |||||||||||||
| * 6 | *6 | 6.35 | *8 | *10 | 0.7 | 1.4 | |||||||||||||||||||||||
| 6.35 | 8 | 10 | 0.9 | — | |||||||||||||||||||||||||
| * 8 | *8 | 9.525 | *10 | 1.7 | 1.9 | ||||||||||||||||||||||||
| 9.525 | 10 | — | — | ||||||||||||||||||||||||||
| * 10 | *10 | ||||||||||||||||||||||||||||
| 32 | * 8 | *8 | 9.525 | *10 | 12 | 41 | 32 | 12 | 12.6 | M4 | 11 | 6 | 6.3 | 1.2 | 1.9 | ● | ● | ● | ● | ||||||||||
| 9.525 | 10 | 12 | 2.1 | 2.4 | |||||||||||||||||||||||||
| * 10 | *10 | 11 | *12 | 14 | 2.7 | 3.4 | |||||||||||||||||||||||
| * 12 | *12 | *14 | 2.9 | — | |||||||||||||||||||||||||
| 40 | 8 | 8 | 10 | 56 | — | 17 | — | M5 | 14 | 8.5 | — | — | — | ● | ● | — | — | ||||||||||||
| 10 | 10 | ||||||||||||||||||||||||||||
| 12 | 12 | 14 | |||||||||||||||||||||||||||
| 14 | 14 | 16 | |||||||||||||||||||||||||||
| 15 | 15 | ||||||||||||||||||||||||||||
| 16 | 16 | ||||||||||||||||||||||||||||
■Standard
| Part Number | Allowable Torque (N⋅m) | Max. Rotational Speed (r/min) | Moment of Inertia (kg⋅m2) | Static Torsional Spring Constant (N·m/rad) | Allowable Lateral Misalignment (mm) | Allowable Angular Misalignment (°) | Allowable Axial Misalignment (mm) | Screw Tightening Torque (N⋅m) | Mass (g) | |
| Type | D | |||||||||
| SL-CPLSC SH-CPLSC | 12 | 0.3 | 52000 | 2.2 × 10−7 | 64 | 0.1 | 2 | ±0.2 | 0.5 | 10 |
| 16 | 0.5 | 39000 | 9.0 × 10−7 | 85 | ±0.3 | 1 | 25 | |||
| 20 | 1 | 31000 | 2.5 × 10−6 | 250 | 43 | |||||
| 25 | 2 | 25000 | 7.1 × 10−6 | 330 | 0.15 | ±0.4 | 1.5 | 78 | ||
| 32 | 3.5 | 19000 | 2.7 × 10−5 | 850 | ±0.5 | 2.5 | 170 | |||
| 40 | 8 | 15000 | 9.0 × 10−5 | 1000 | 0.2 | 4 | 370 | |||
■Short
| Part Number | Allowable Torque (N⋅m) | Max. Rotational Speed (r/min) | Moment of Inertia (kg⋅m2) | Static Torsional Spring Constant (N·m/rad) | Allowable Angular Misalignment (°) | Allowable Axial Misalignment (mm) | Screw Tightening Torque (N⋅m) | Mass (g) | |
| Type | D | ||||||||
| SL-CPSSC SH-CPSSC | 12 | 0.3 | 52000 | 1.8 × 10−7 | 140 | 1 | ±0.1 | 0.5 | 8.5 |
| 16 | 0.5 | 39000 | 7.8 × 10−7 | 240 | 1 | 21 | |||
| 20 | 1 | 31000 | 2.1 × 10−6 | 330 | 38 | ||||
| 25 | 2 | 25000 | 6.3 × 10−6 | 720 | ±0.2 | 1.5 | 69 | ||
| 32 | 3.5 | 19000 | 2.2 × 10−5 | 1300 | 2.5 | 150 | |||
Alteration:
| Alteration: Code | Shaft Bore Dia. | Applicable Conditions | Ordering Example | |||||||||||||
| LDC (Left Shaft) |  | 0.5 mm Increments Applicable to 6.35, 9.525 or 12.7 [Ordering Code] Specify d1 with LDC, d2 with RDC Example: LDC4.5, RDC9.525 Clamping
| [ ! ] LDC and RDC tolerance are values before slit machining. [ NG ] Combination with LDC and RDC are not available [NG] Not applicable to Clamping Type D = 40 | SL-CPLSC25-LDC6.5-8 | ||||||||||||
| RDC (Right Shaft) | SH-CPSSC32-8-RDC9.525 | |||||||||||||||
Cleaning Process·Degreasing (Part Number: SL-□□)
Working Environment: General environment
 |  |  | |  | |  |

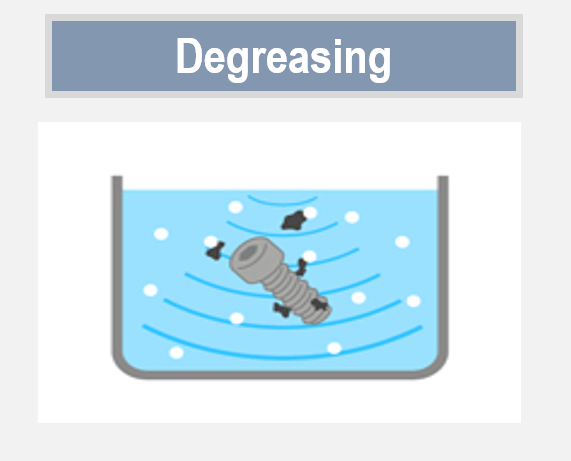

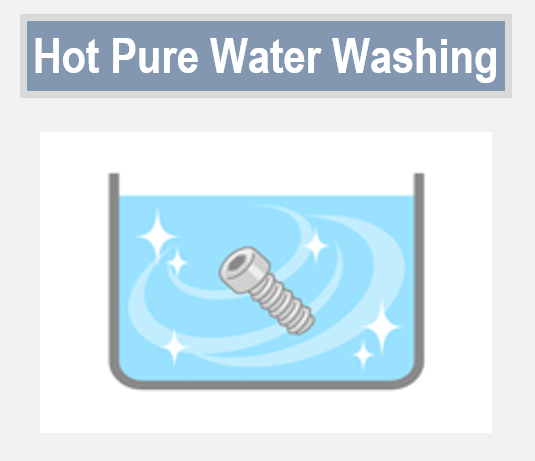

| Alkaline warm pure water | Ultrasonic pure water cleaning after cleaning with pure water *3 times | Dry | Anti-rust single packing |
·Precision cleaning (Part Number: SH-□□)
Working Environment: Class 1,000* | Working Environment: Class 10** | |||||||
| |  | |  | | | |  |

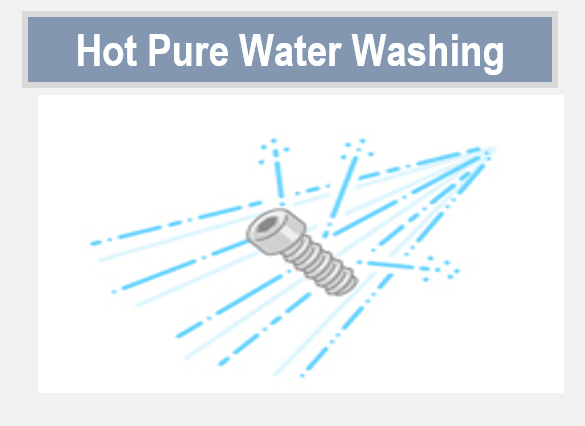

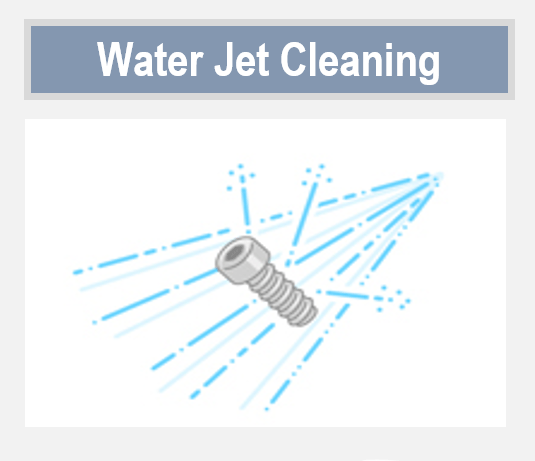

Hydrocarbon cleaning Ro water cleaning | Wash with pure water (10 MΩ·cm)after high- pressure water jet cleaning (Ro water) | Use pure water (13 MΩ·cm) | Use nitrogen blow | Conducted on a clean bench in a Class 10** clean environment | ||||
**US FED STD 209E, ISO 14644-1 ISO 4 Equiv.
·Electrolytic polishing + precision cleaning (Part Number: SHD-□□)
Working Environment: Class 1,000* | Working Environment: Class 10** | |||||||||
| |  | | | | | | | | |

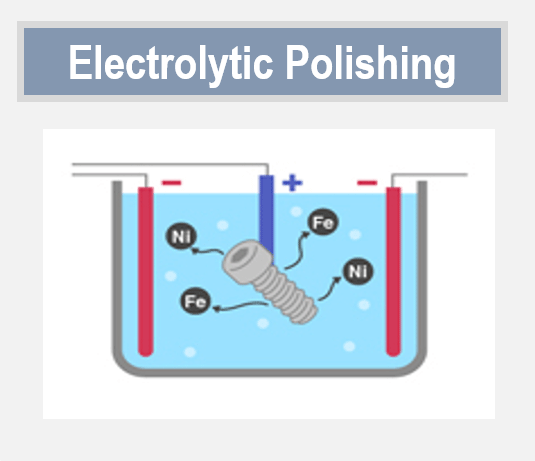

Hydrocarbon cleaning Ro water cleaning | Electrolytic polishing with an electrolytic polishing layer according to the material | Wash with pure water (10 MΩ·cm) after high- pressure water jet cleaning (Ro water) | Use warm pure water (13 MΩ·cm) | Use nitrogen blow | Conducted on a clean bench in a Class 10** clean environment | |||||
**US FED STD 209E, ISO 14644-1 ISO 4 Equiv.

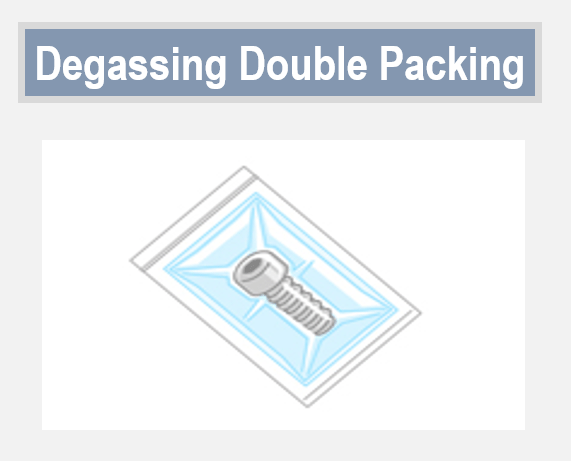

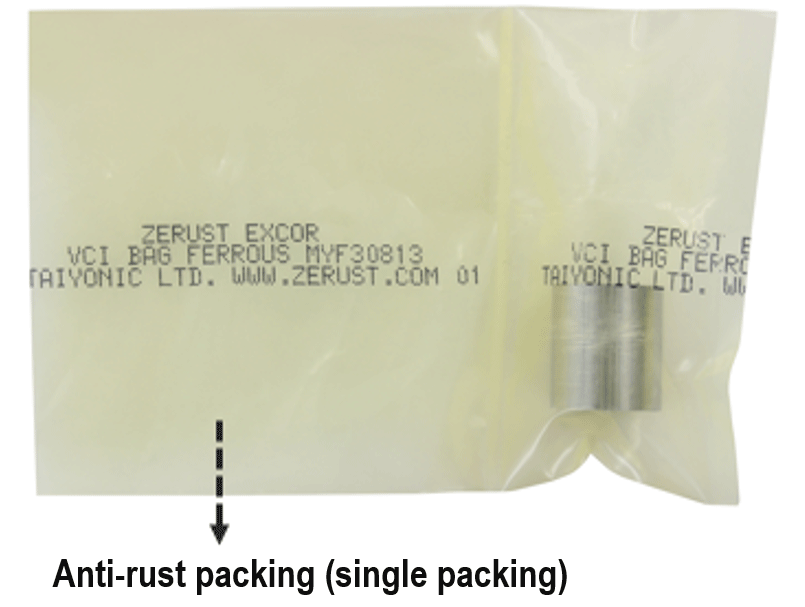

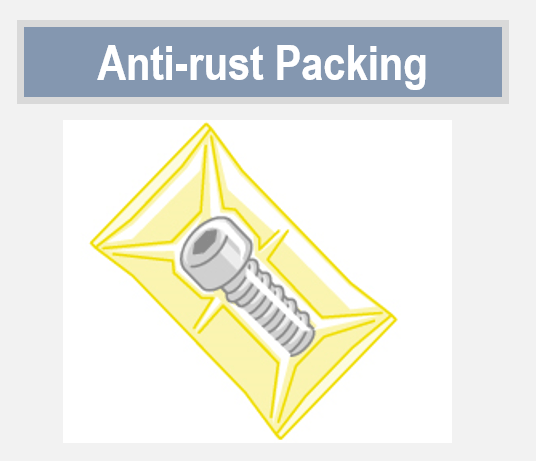

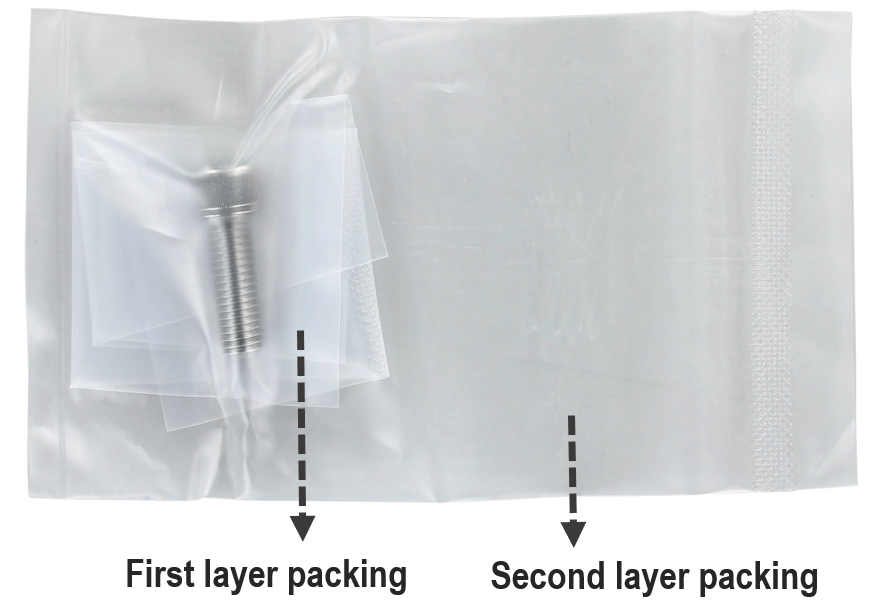

Packaging Example| For degreasing: (Part Number: SL-□□)  | For precision cleaning or electrolytic polishing + precision cleaning: (Part Number: SH-□□/SHD-□□)  [ ! ]Both the first and second layer packaging are degassed. |
Cleaning Effectiveness / Recommended Environment for UseCleaning Method | Product Part Number | Packaging Type | Effects Compared to Uncleaned Product | Environment (Standard) | Possible applications |
|---|---|---|---|---|---|
| Degreasing | SL-□□ | Anti-rust packing | Oil removal | General environment | Regular assembly process |
| Post battery assembly process | |||||
| Precision cleaning | SH-□□ | Degassing double packing | Oil removal Dust removal | Clean environment (Class 10 to 1,000*) | Battery assembly process |
| LCD-related post assembly process | |||||
| In-vehicle camera assembly process | |||||
| Electrolytic polishing + precision cleaning | SHD-□□ | Degassing double packing | Oil removal Dust removal Outgas reduction | Vacuum environment Clean environment (Class 10 to 1,000*) | Pre-semiconductor process |
| Liquid crystal deposition process | |||||
| Pre-OLED process |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Loading...
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Allowable Misalignment | Allowable Torque Range (N•m) | Shaft Bore Dia. 1 d1 (or d) (mm) | Shaft Bore Dia. 2 d2 (or d) (mm) | O.D. D (mm) | Overall Length (mm) | Allowable Torque (Nm) | Max. Rotational Speed (r/min) | Allowable Lateral Misalignment Range (mm) | Allowable Lateral Misalignment (mm) | Allowable Angular Misalignment (deg) | Allowable Axial Misalignment (mm) | Moment of Inertia (kg･m2) | Cleaning Method | Operating Environment | Properties / applications | Normal/Short | Shaft Bore Dia. d1 [LDC] 0.5 mm Increments | Shaft Bore Dia. d2 [RDC] 0.5 mm Increments | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
