[Clean & Pack]Hex Socket Head Cap Screws - Left-Hand Thread, Small Box【100 Pieces Per Package】
![[Clean & Pack]Hex Socket Head Cap Screws - Left-Hand Thread, Small Box](http://uk.misumi-ec.com/linked/material/mech/MSM1/PHOTO/110310843299_001.jpg?$product_main$)
| ·Degreasing (Anti-rust single packing) | : Part Number SL-□□ |
| ·Precision cleaning (Degassing double packing) | : Part Number SH-□□ |
| ·Electrolytic polishing + precision cleaning (Degassing double packing) | : Part Number SHD-□□ |
| Product Part Number | Cleaning Method | Packaging Type | Effects Compared to Uncleaned Product | Environment (Standard) | Possible applications |
| SL-□□ | Degreasing | Anti-rust packing | Oil removal | General environment | Regular assembly process |
| Post battery assembly process | |||||
| SH-□□ | Precision cleaning | Degassing double packing | Oil removal Dust removal | Clean environment (Class 10 to 1,000*) | Battery assembly process |
| LCD-related post assembly process | |||||
| In-vehicle camera assembly process | |||||
| SHD-□□ | Electrolytic polishing + precision cleaning | Degassing double packing | Oil removal Dust removal Outgas reduction | Vacuum environment Clean environment (Class 10 to 1,000*) | Pre-semiconductor process |
| Liquid crystal deposition process | |||||
| Pre-OLED process |
Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product.
Please be careful about the application location and storage environment.
Left-hand thread type hex socket head cap screw.
(i)Remark
- Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product.
Please be careful about the application location and storage environment. - Hex Socket Head Cap Screw - Left-Hand Thread with precision cleaning and electrolytic polishing has been newly released.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
| Type | [M] Material | Strength Class | Cleaning Method | |||
| Available in Box | Cleaning Method | Cleaning Environment | Packaging Type | Packing Environment | ||
| SL-BOX-SCBL | EN 1.4301 Equiv. | A2-70 | Degreasing | General environment | Anti-rust packing | General environment |
| SH-BOX-SCBL | Precision cleaning | Class 1,000* | Degassing double packing | Class 10** | ||
| SHD-BOX-SCBL | Electrolytic Polishing + Precision Cleaning | |||||
**US FED STD 209E, ISO 14644-1 ISO 4 Equiv.
[ ! ] Products are packed by order quantity. Ex. If the order is for 20 pieces, they are packed in one package (incl. 20 pieces).
[ ! ] See the
details of degreasing, precision cleaning, and electrolytic polishing shown at the bottom of the specification table.Specification Table
| Part Number |
| SL-BOX-SCBL6−15 |
| SH-BOX-SCBL8−20 |
| SHD-BOX-SCBL10−25 |

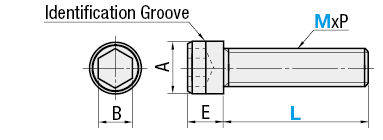

| Part Number | M × P | A | E | B | Pcs./ Box. | |
| Type | M－L | |||||
| SL-BOX-SCBL SH-BOX-SCBL SHD-BOX-SCBL | 4−10 | 4 × 0.7 | 7 | 4 | 3 | 100 pcs./box |
| 12 | ||||||
| 15 | ||||||
| 20 | ||||||
| 5−10 | 5 × 0.8 | 8.5 | 5 | 4 | ||
| 12 | ||||||
| 15 | ||||||
| 20 | ||||||
| 6−10 | 6 × 1.0 | 10 | 6 | 5 | ||
| 12 | ||||||
| 15 | ||||||
| 20 | ||||||
| 25 | ||||||
| 8−15 | 8 × 1.25 | 13 | 8 | 6 | ||
| 20 | ||||||
| 25 | ||||||
| 30 | ||||||
| 10−20 | 10 × 1.5 | 16 | 10 | 8 | ||
| 25 | ||||||
| 30 | ||||||
| 40 | ||||||
Cleaning Process· Degreasing (Part Number: SL-□□)
Working Environment: General environment | ||||||
|---|---|---|---|---|---|---|
 Hydrocarbon cleaning Ro water cleaning |  |  Wash with pure water after high-pressure water jet cleaning (Ro water) | |  Use Oil-free Compressor | |  Anti-rust single packing |
Working Environment: Class 1,000* | Working Environment: Class 10** | |||||||
|---|---|---|---|---|---|---|---|---|
Hydrocarbon cleaningRo water cleaning | | Wash with pure water (10 MΩ·cm) after high-pressure water jet cleaning (Ro water) | |  Use pure water (13 MΩ·cm) | | Use nitrogen blow | |  Conducted on a clean bench in a Class 10** clean environment |
**US FED STD 209E, ISO 14644-1 ISO 4 Equiv.
Working Environment: Class 1,000* | Working Environment: Class 10** | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Hydrocarbon cleaning Ro water cleaning | |  Electrolytic polishing with an electrolytic polishing layer according to the material | | Wash with pure water (10 MΩ·cm) after high-pressure water jet cleaning (Ro water) | | Use warm pure water (13 MΩ·cm) | | Use nitrogen blow | | Conducted on a clean bench in a Class 10** clean environment |
**US FED STD 209E, ISO 14644-1 ISO 4 Equiv.
Packaging Example| For degreasing: (Part Number: SL-□□)  Packaging type may vary depending on some products and sizes. | For precision cleaning or electrolytic polishing + precision cleaning: (Part Number: SH-□□/SHD-□□)  [ ! ] Both the first and second layer packaging are degassed. |
Cleaning Effectiveness / Recommended Environment for UseCleaning Method | Product Part Number | Packaging Type | Effects Compared to Uncleaned Product | Environment (Standard) | Possible applications |
|---|---|---|---|---|---|
| Degreasing | SL-□□ | Anti-rust packing | Oil removal | General environment | Regular assembly process |
| Post battery assembly process | |||||
| Precision cleaning | SH-□□ | Degassing double packing | Oil removal Dust removal | Clean environment (Class 10 to 1,000*) | Battery assembly process |
| LCD-related post assembly process | |||||
| In-vehicle camera assembly process | |||||
| Electrolytic polishing + precision cleaning | SHD-□□ | Degassing double packing | Oil removal Dust removal Outgas reduction | Vacuum environment Clean environment (Class 10 to 1,000*) | Pre-semiconductor process |
| Liquid crystal deposition process | |||||
| Pre-OLED process |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
| Part Number |
Standard Unit Price
| Number of pc(s). included in pkg. | Minimum order quantity | Volume Discount | Screw Nominal (M) | Length L (mm) | Pitch (mm) | Application | Cleaning Method | Properties / applications | |
|---|---|---|---|---|---|---|---|---|---|---|---|
380.52 € | 100 Pieces Per Package | 1 pack | 7 Days | 4 | 10 | 0.7 | Standard / For Clean Environment | Precision Cleaning | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
381.35 € | 100 Pieces Per Package | 1 pack | 7 Days | 4 | 12 | 0.7 | Standard / For Clean Environment | Precision Cleaning | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
387.15 € | 100 Pieces Per Package | 1 pack | 7 Days | 4 | 15 | 0.7 | Standard / For Clean Environment | Precision Cleaning | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
389.60 € | 100 Pieces Per Package | 1 pack | 7 Days | 4 | 20 | 0.7 | Standard / For Clean Environment | Precision Cleaning | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
403.66 € | 100 Pieces Per Package | 1 pack | 7 Days | 5 | 10 | 0.8 | Standard / For Clean Environment | Precision Cleaning | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
417.96 € | 100 Pieces Per Package | 1 pack | 7 Days | 5 | 12 | 0.8 | Standard / For Clean Environment | Precision Cleaning | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
424.59 € | 100 Pieces Per Package | 1 pack | 7 Days | 5 | 15 | 0.8 | Standard / For Clean Environment | Precision Cleaning | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
427.86 € | 100 Pieces Per Package | 1 pack | 7 Days | 5 | 20 | 0.8 | Standard / For Clean Environment | Precision Cleaning | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
432.27 € | 100 Pieces Per Package | 1 pack | 7 Days | 6 | 10 | 1 | Standard / For Clean Environment | Precision Cleaning | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
452.95 € | 100 Pieces Per Package | 1 pack | 7 Days | 6 | 12 | 1 | Standard / For Clean Environment | Precision Cleaning | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
487.37 € | 100 Pieces Per Package | 1 pack | 7 Days | 6 | 15 | 1 | Standard / For Clean Environment | Precision Cleaning | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
464.48 € | 100 Pieces Per Package | 1 pack | 7 Days | 6 | 20 | 1 | Standard / For Clean Environment | Precision Cleaning | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
501.75 € | 100 Pieces Per Package | 1 pack | 7 Days | 6 | 25 | 1 | Standard / For Clean Environment | Precision Cleaning | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
506.17 € | 100 Pieces Per Package | 1 pack | 7 Days | 8 | 15 | 1.25 | Standard / For Clean Environment | Precision Cleaning | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
512.55 € | 100 Pieces Per Package | 1 pack | 7 Days | 8 | 20 | 1.25 | Standard / For Clean Environment | Precision Cleaning | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
525.95 € | 100 Pieces Per Package | 1 pack | 7 Days | 8 | 25 | 1.25 | Standard / For Clean Environment | Precision Cleaning | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
533.40 € | 100 Pieces Per Package | 1 pack | 7 Days | 8 | 30 | 1.25 | Standard / For Clean Environment | Precision Cleaning | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
522.27 € | 100 Pieces Per Package | 1 pack | 7 Days | 10 | 20 | 1.5 | Standard / For Clean Environment | Precision Cleaning | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
552.44 € | 100 Pieces Per Package | 1 pack | 7 Days | 10 | 25 | 1.5 | Standard / For Clean Environment | Precision Cleaning | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
592.58 € | 100 Pieces Per Package | 1 pack | 7 Days | 10 | 30 | 1.5 | Standard / For Clean Environment | Precision Cleaning | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
652.66 € | 100 Pieces Per Package | 1 pack | 7 Days | 10 | 40 | 1.5 | Standard / For Clean Environment | Precision Cleaning | Clean washing / Low Dust Generation / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
400.64 € | 100 Pieces Per Package | 1 pack | 7 Days | 4 | 10 | 0.7 | Standard / For Vacuum Equipment / For Clean Environment | Electrolytic polishing + precision cleaning | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
401.45 € | 100 Pieces Per Package | 1 pack | 7 Days | 4 | 12 | 0.7 | Standard / For Vacuum Equipment / For Clean Environment | Electrolytic polishing + precision cleaning | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
407.26 € | 100 Pieces Per Package | 1 pack | 7 Days | 4 | 15 | 0.7 | Standard / For Vacuum Equipment / For Clean Environment | Electrolytic polishing + precision cleaning | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
409.71 € | 100 Pieces Per Package | 1 pack | 7 Days | 4 | 20 | 0.7 | Standard / For Vacuum Equipment / For Clean Environment | Electrolytic polishing + precision cleaning | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
423.77 € | 100 Pieces Per Package | 1 pack | 7 Days | 5 | 10 | 0.8 | Standard / For Vacuum Equipment / For Clean Environment | Electrolytic polishing + precision cleaning | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
438.08 € | 100 Pieces Per Package | 1 pack | 7 Days | 5 | 12 | 0.8 | Standard / For Vacuum Equipment / For Clean Environment | Electrolytic polishing + precision cleaning | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
444.70 € | 100 Pieces Per Package | 1 pack | 7 Days | 5 | 15 | 0.8 | Standard / For Vacuum Equipment / For Clean Environment | Electrolytic polishing + precision cleaning | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
447.97 € | 100 Pieces Per Package | 1 pack | 7 Days | 5 | 20 | 0.8 | Standard / For Vacuum Equipment / For Clean Environment | Electrolytic polishing + precision cleaning | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
452.39 € | 100 Pieces Per Package | 1 pack | 7 Days | 6 | 10 | 1 | Standard / For Vacuum Equipment / For Clean Environment | Electrolytic polishing + precision cleaning | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
473.07 € | 100 Pieces Per Package | 1 pack | 7 Days | 6 | 12 | 1 | Standard / For Vacuum Equipment / For Clean Environment | Electrolytic polishing + precision cleaning | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
507.48 € | 100 Pieces Per Package | 1 pack | 7 Days | 6 | 15 | 1 | Standard / For Vacuum Equipment / For Clean Environment | Electrolytic polishing + precision cleaning | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
484.59 € | 100 Pieces Per Package | 1 pack | 7 Days | 6 | 20 | 1 | Standard / For Vacuum Equipment / For Clean Environment | Electrolytic polishing + precision cleaning | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
521.87 € | 100 Pieces Per Package | 1 pack | 7 Days | 6 | 25 | 1 | Standard / For Vacuum Equipment / For Clean Environment | Electrolytic polishing + precision cleaning | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
526.28 € | 100 Pieces Per Package | 1 pack | 7 Days | 8 | 15 | 1.25 | Standard / For Vacuum Equipment / For Clean Environment | Electrolytic polishing + precision cleaning | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
532.65 € | 100 Pieces Per Package | 1 pack | 7 Days | 8 | 20 | 1.25 | Standard / For Vacuum Equipment / For Clean Environment | Electrolytic polishing + precision cleaning | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
546.06 € | 100 Pieces Per Package | 1 pack | 7 Days | 8 | 25 | 1.25 | Standard / For Vacuum Equipment / For Clean Environment | Electrolytic polishing + precision cleaning | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
553.50 € | 100 Pieces Per Package | 1 pack | 7 Days | 8 | 30 | 1.25 | Standard / For Vacuum Equipment / For Clean Environment | Electrolytic polishing + precision cleaning | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
542.39 € | 100 Pieces Per Package | 1 pack | 7 Days | 10 | 20 | 1.5 | Standard / For Vacuum Equipment / For Clean Environment | Electrolytic polishing + precision cleaning | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
572.55 € | 100 Pieces Per Package | 1 pack | 7 Days | 10 | 25 | 1.5 | Standard / For Vacuum Equipment / For Clean Environment | Electrolytic polishing + precision cleaning | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
612.69 € | 100 Pieces Per Package | 1 pack | 7 Days | 10 | 30 | 1.5 | Standard / For Vacuum Equipment / For Clean Environment | Electrolytic polishing + precision cleaning | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
672.77 € | 100 Pieces Per Package | 1 pack | 7 Days | 10 | 40 | 1.5 | Standard / For Vacuum Equipment / For Clean Environment | Electrolytic polishing + precision cleaning | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
350.36 € | 100 Pieces Per Package | 1 pack | 7 Days | 4 | 10 | 0.7 | Standard | Degreasing | Clean washing / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
351.18 € | 100 Pieces Per Package | 1 pack | 7 Days | 4 | 12 | 0.7 | Standard | Degreasing | Clean washing / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
356.99 € | 100 Pieces Per Package | 1 pack | 7 Days | 4 | 15 | 0.7 | Standard | Degreasing | Clean washing / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
359.44 € | 100 Pieces Per Package | 1 pack | 7 Days | 4 | 20 | 0.7 | Standard | Degreasing | Clean washing / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
373.50 € | 100 Pieces Per Package | 1 pack | 7 Days | 5 | 10 | 0.8 | Standard | Degreasing | Clean washing / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
387.81 € | 100 Pieces Per Package | 1 pack | 7 Days | 5 | 12 | 0.8 | Standard | Degreasing | Clean washing / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
394.43 € | 100 Pieces Per Package | 1 pack | 7 Days | 5 | 15 | 0.8 | Standard | Degreasing | Clean washing / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
397.69 € | 100 Pieces Per Package | 1 pack | 7 Days | 5 | 20 | 0.8 | Standard | Degreasing | Clean washing / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
402.11 € | 100 Pieces Per Package | 1 pack | 7 Days | 6 | 10 | 1 | Standard | Degreasing | Clean washing / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
422.79 € | 100 Pieces Per Package | 1 pack | 7 Days | 6 | 12 | 1 | Standard | Degreasing | Clean washing / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
457.21 € | 100 Pieces Per Package | 1 pack | 7 Days | 6 | 15 | 1 | Standard | Degreasing | Clean washing / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
434.32 € | 100 Pieces Per Package | 1 pack | 7 Days | 6 | 20 | 1 | Standard | Degreasing | Clean washing / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
471.60 € | 100 Pieces Per Package | 1 pack | 7 Days | 6 | 25 | 1 | Standard | Degreasing | Clean washing / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
476.00 € | 100 Pieces Per Package | 1 pack | 7 Days | 8 | 15 | 1.25 | Standard | Degreasing | Clean washing / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
482.38 € | 100 Pieces Per Package | 1 pack | 7 Days | 8 | 20 | 1.25 | Standard | Degreasing | Clean washing / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
495.79 € | 100 Pieces Per Package | 1 pack | 7 Days | 8 | 25 | 1.25 | Standard | Degreasing | Clean washing / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
503.23 € | 100 Pieces Per Package | 1 pack | 7 Days | 8 | 30 | 1.25 | Standard | Degreasing | Clean washing / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance | ||
492.11 € | 100 Pieces Per Package | 1 pack | 7 Days | 10 | 20 | 1.5 | Standard | Degreasing | Clean washing / Corrosion resistance / chemical resistance / Conductive / Antistatic / Non-Magnetic / Heat-Resistance |
Loading...
Basic information
| Material | EN 1.4301 Equiv. | Surface Treatment | Not Provided | Mounting Hole Shape | Hex Socket |
|---|---|---|---|---|---|
| Additional Shape | Standard | Strength Class (Stainless Steel) | A2-70 | Thread Type | Metric Coarse (Left) |
| Basic Shape | Standard (Round) | Sales Unit | Box, Pkg. | Screw Type | Fully Threaded |
| Material Details | EN 1.4301 Equiv. | Environmentally Friendly | RoHS compliant (10 substances) |
