Telescopic Slide Rails / Stainless Steel / Medium Load / Three Step Slide

Telescopic Slide Rails / Stainless Steel / Medium Load / Three Step Slide
  • Volume Discount

MISUMI

MISUMI

[Features] EN 1.4301 Equiv. (sintered) with excellent corrosion resistance is used for the rail. -If you order a quantity of 1, 1 pcs. will be supplied.
  • Order quantities extended (D-JIT)

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

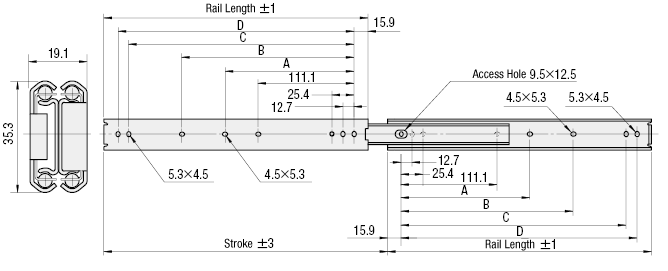

Dimensional Drawings

SSRXN36Rails: Nondetachable

Telescopic Slide Rails - Three-Step, Medium Load, Stainless Steel: Related Image

[!] Slide Rail Operating Temp. Range: 5°C to 35°C

[M]Material Rail: EN 1.4301 Equiv.
Ball: EN 1.4125 Equiv.

[!] 1 pc. will be delivered per order quantity of 1.

Specification Table

Part Number
SSRXN3620
Part NumberRail LengthStrokeABCDLoad Rating
(N / 2 pcs.)		Mass
g
TypeNo.
SSRXN3612304.8327.2—149.2260.3273588620
14355.6377.9—200311.1323.8579720
16406.4428.7—250.8361.9374.6559820
18457.2479.5212.7301.6412.7425.4549920
20508.0530.3238.1352.4463.5476.25301030
22558.8580.3263.5403.2514.35275001130
24609.6631.9288.9454565.1577.84811230
26660.4682.7314.3504.8615.9628.64611330
28711.2733.5339.7555.6666.7679.44411430
[!] For horizontal installation, the target value of load rating is 25% (reference value). [!] Three-step rail can be pulled out to the end. The rails can not be pulled apart.  
[ ! ] Use M4 Cross Recessed Pan Head Screws to mount rails.

Technical Information

Load Rating

Load Rating Definition
Rod End Bearings - Standard Type / L Short Type: Related Image
Rated load is a static load at the center of 2 extended rails on drawer side. (N / 2 pcs.)
Mounting Orientation
  • Install the left side and right side slide rails in parallel, while fixing them vertically to the ground.
  • Some installation posture may degrade load resistance performance sharply. For horizontal installation, the target value of load rating is 25% (load rating × 0.25).
  • For horizontal installation, if load more than the above reference value is applied, or if center of gravity is put over positions separated from rail center,
    inner rails may fall off outer rails. Please test and confirm this issue before using the product.
Mounting Orientation Examples
Telescopic Slide Rails - Three-Step, Medium Load, Stainless Steel: Related Image
Slide rails are installed vertically and in parallel.		Telescopic Slide Rails - Three-Step, Medium Load, Stainless Steel: Related Image
Slide rails are not vertically installed.		Telescopic Slide Rails - Three-Step, Medium Load, Stainless Steel: Related Image
Slide rails are not horizontally aligned.		Telescopic Slide Rails - Three-Step, Medium Load, Stainless Steel: Related Image
Applying loads on ends when mounted horizontally

Rail Disassembly

  • For some types, the outer and inner rails can be pulled apart and for the other types, this cannot be done.
    For a product is marked as Rail Disassembly Possible, the drawers can be pulled out if used as a drawer.
    For a product is marked as Rails Nondetachable, the drawers cannot be pulled out.
  • On areas containing conflict between rails and mounting holes, move access holes over mounting holes before mounting screws, if rails are nondetachable.　


Rod End Bearings - Standard Type / L Short Type: Related Image

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
