Telescopic Slide Rails / With Lock Mechanism
- Order quantities extended (D-JIT)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- Catalog
Dimensional Drawings
| SRR36 (Lock Mechanism Type) Rail Disassembly: Possible |
 |
·Rails lock against retract direction when fully pulled out. The housing can be pulled out if a load is applied in the retract direction by releasing the lock.
·To retract, detach, and remove rails, push the disconnect spring to unlock.
[!] Slide Rail Operating Temp. Range: 5°C to 35°C
[M]Material: Steel [S] Surface Treatment: Bright Chromate (Trivalent Chromium)
[!] 1 pc. will be delivered per order quantity of 1.
Specification Table
| Part Number |
| SRR3620 |
| Part Number | Rail Length | Stroke | A | B | C | D | E | F | Load Rating (N / 2 pcs.) | Mass g | |
| Type | No. | ||||||||||
| SRR36 | 12 | 305 | 327.2 | — | — | — | 260.3 | 273 | — | 623 | 1200 |
| 14 | 356 | 377.9 | — | — | 298.4 | 311.1 | 323.8 | — | 586 | 1400 | |
| 16 | 406 | 428.7 | — | — | 349.2 | 361.9 | 374.6 | 250.8 | 555 | 1600 | |
| 18 | 457 | 479.5 | 212.7 | — | 400 | 412.7 | 425.4 | 301.6 | 516 | 1800 | |
| 20 | 508 | 530.3 | 238.1 | 365.1 | 450.8 | 463.5 | 476.2 | 352.4 | 476 | 2000 | |
| 22 | 559 | 581.2 | 263.5 | 415.9 | 501.6 | 514.3 | 527 | 403.2 | 444 | 2200 | |
| 24 | 610 | 631.9 | 288.9 | 466.7 | 552.4 | 565.1 | 577.8 | 454 | 413 | 2400 | |
| 26 | 660 | 682.7 | 314.3 | 517.5 | 603.2 | 615.9 | 628.6 | 504.8 | 382 | 2600 | |
| 28 | 711 | 733.5 | 339.7 | 568.3 | 654 | 666.7 | 679.4 | 555.6 | 355 | 2800 | |
| [ ! ] For horizontal installation, the target value of load rating is 25% (reference value). [ ! ] Use M4 Recessed Truss Machine Screws or Recessed Binding Head Screws to mount rails. | |||||||||||
Technical Information

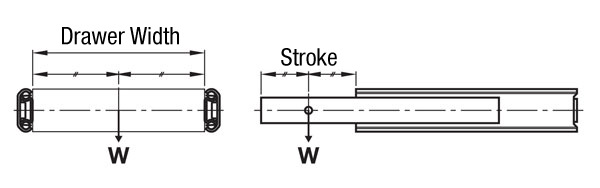

Load Rating
- Install the left side and right side slide rails in parallel, while fixing them vertically to the ground.
- Some installation posture may degrade load resistance performance sharply. For horizontal installation, the target value of load rating is 25% (load rating × 0.25).
- For horizontal installation, if load more than the above reference value is applied, or if center of gravity is put over positions separated from rail center,
inner rails may fall off outer rails. Please test and confirm this issue before using the product.
Slide rails are installed vertically and in parallel. | Slide rails are not vertically installed. | Slide rails are not horizontally aligned. | Applying loads on ends when mounted horizontally |
Rail Disassembly
- For some types, the outer and inner rails can be pulled apart and for the other types, this cannot be done.
For a product is marked as Rail Disassembly Possible, the drawers can be pulled out if used as a drawer.
For a product is marked as Rails Nondetachable, the drawers cannot be pulled out. - On areas containing conflict between rails and mounting holes, move access holes over mounting holes before mounting screws, if rails are nondetachable.
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| SRR3612 |
| SRR3614 |
| SRR3616 |
| SRR3618 |
| SRR3620 |
| SRR3622 |
| SRR3624 |
| SRR3626 |
| SRR3628 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Stroke (mm) | Rail Length (mm) | Load Rating (N/2 pcs.) (N) | |
|---|---|---|---|---|---|---|---|---|
47.10 € | 1 | 5 Days | 10 | 327.2 | 305 | 623 | ||
49.37 € | 1 | 5 Days | 10 | 377.9 | 356 | 586 | ||
52.40 € | 1 | 5 Days | 10 | 428.7 | 406 | 555 | ||
55.40 € | 1 | 5 Days | 10 | 479.5 | 457 | 516 | ||
58.80 € | 1 |
Same day
Stock | 10 | 530.3 | 508 | 476 | ||
61.83 € | 1 |
Same day
Stock | 10 | 581.2 | 559 | 444 | ||
65.36 € | 1 | 5 Days | 10 | 631.9 | 610 | 413 | ||
68.90 € | 1 | 5 Days | 10 | 682.7 | 660 | 382 | ||
71.78 € | 1 | 5 Days | 10 | 733.5 | 711 | 355 |
Loading...
Basic information
| Type | Slide Type | Material | Steel | Rail Qty. | Three-Step Slide |
|---|---|---|---|---|---|
| Height(mm) | 19.1 | Width(mm) | 35.3 | Surface Treatment | Glossy Chromate Treatment (Trivalent Chromium) |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Stroke(mm)
-
Rail Length(mm)
-
Load Rating (N/2 pcs.)(N)
-
Type
- SRR36
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Complementary Products
-
stopper bolts / hexagon socket at head / regular thread / MC-Nylon locking head / steel / chromated
MISUMI Standard Price : 7.79 € Shipping Days: Same day
