Telescopic Slide Rails / Heavy Load / Three Step Slide

Telescopic Slide Rails / Heavy Load / Three Step Slide
  • Volume Discount

MISUMI

MISUMI

[Features] Steel is used for the main body of the rail and trivalent chromium is used for the surface treatment. -If you order a quantity of 1, 1 pcs. will be supplied.
  • Order quantities extended (D-JIT)

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Dimensional Drawings

SRH150 Rail Disassembly: Not Possible
SRRH150 (Lock Mechanism) Rail Disassembly: Possible
[!] Drawing is for SRRH150 Type. SRH150 does not include a leaf spring. It cannot be pulled apart.
[!] SRRH150 can be pulled apart by pushing the disconnect spring.
■Lock Mechanism
·Rails lock against retract direction when fully pulled out.
·To retract, detach, and remove rails, push the disconnect spring to unlock.
[!] Slide Rail Operating Temp. Range: 5°C to 35°C
[M]Material Rail: Steel
           Lead stick:DURACON M90 to 40
[S]Surface Treatment Bright Chromate (Trivalent Chromium)

Specification Table

Part Number
SRH15012
SRRH15028
Part NumberRail
Length		StrokeSRH150SRRH150CDEFGLoad Rating
(N / 2 pcs.)		Mass
g
TypeNo.ABAB
SRH150

SRRH150
(Detachable)		12305330.276.2177.876.2—25476.2190.5241.3266.7843721
14356381101.6203.2127—304.888.9215.9292.1317.5814860
16406431.8127228.6152.4317.5355.6127241.3342.9368.3765940
18457482.6127279.4177.8368.3406.4127292.1393.7419.17261100
20508533.4152.4304.8152.4419.1457.2152.4317.5444.5469.97061230
22559584.2177.8330.2177.8469.9508177.8342.9495.3520.76861360
24610635177.8381177.8520.7558.8177.8393.7546.1571.56571482
26660685.8203.2406.4203.2571.5609.6203.2419.1596.9622.36281625
28711736.6228.6431.8228.6622.3660.4228.6444.5647.7673.16081735
[!] For horizontal installation, the target value of load rating is 25% (reference value). [!] SRH150 cannot be pulled apart. SRRH150 can be pulled apart by pushing the disconnect spring.
[ ! ] Use M4 Recessed Truss Machine Screws or Recessed Binding Head Screws to mount SRH150 rails, and M4 Extra Low Head Cap Screws to mount SRRH150 rails.

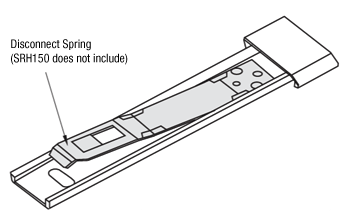

Telescopic Slide Rails - Three-Step, Standard / Hold-Closed Latch: Related Image■Rail Lock and Disassembly
·SRRH150 (Rail Disassembly: Possible)
   Rails lock against retract direction when fully pulled out.
   To remove rails, push the disconnect spring to unlock. (Right Diagram)
·SRH150 (Rails: Nondetachable)
   This rail has no disconnect spring. The rails cannot be locked or pulled apart.

Technical Information

Load Rating

Load Rating Definition
Rod End Bearings - Standard Type / L Short Type: Related Image
Rated load is a static load at the center of 2 extended rails on drawer side. (N / 2 pcs.)
Mounting Orientation
  • Install the left side and right side slide rails in parallel, while fixing them vertically to the ground.
  • Some installation posture may degrade load resistance performance sharply. For horizontal installation, the target value of load rating is 25% (load rating × 0.25).
  • For horizontal installation, if load more than the above reference value is applied, or if center of gravity is put over positions separated from rail center,
    inner rails may fall off outer rails. Please test and confirm this issue before using the product.
Mounting Orientation Examples
Slide rails are installed vertically and in parallel.
Slide rails are not vertically installed.
  Slide rails are not horizontally aligned.
  		   Applying loads on ends when mounted horizontally


Rail Disassembly

  • For some types, the outer and inner rails can be pulled apart and for the other types, this cannot be done.
    For a product is marked as Rail Disassembly Possible, the drawers can be pulled out if used as a drawer.
    For a product is marked as Rails Nondetachable, the drawers cannot be pulled out.
  • On areas containing conflict between rails and mounting holes, move access holes over mounting holes before mounting screws, if rails are nondetachable.　


Rod End Bearings - Standard Type / L Short Type: Related Image

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...

Plug-in is required for 3D Preview

CAD Download

Data to be displayed
30
45
60
  1. 1
Part Number
SRH15012
SRH15014
SRH15016
SRH15018
SRH15020
SRH15022
SRH15024
SRH15026
SRH15028
SRRH15012
SRRH15014
SRRH15016
SRRH15018
SRRH15020
SRRH15022
SRRH15024
SRRH15026
SRRH15028
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSStroke
(mm) 		Rail Length
(mm) 		Load Rating (N/2 pcs.)
(N) 		Draw-out

23.80 €

1 Available Same day

Stock

10330.2305843N/A

24.68 €

1 Available Same day

Stock

10381356814N/A

28.96 €

1 Available Same day

Stock

10431.8406765N/A

37.78 €

1 Available Same day

Stock

10482.6457726N/A

40.05 €

1 Available Same day

Stock

10533.4508706N/A

29.97 €

1 Available Same day

Stock

10584.2559686N/A

31.99 €

1 Available Same day

Stock

10635610657N/A

34.13 €

1 Available Same day

Stock

10685.8660628N/A

50.89 €

1 Available Same day

Stock

10736.6711608N/A

38.15 €

1 Available Same day

Stock

10330.2305843Allowable

39.42 €

1 Available Same day

Stock

10381356814Allowable

41.31 €

1 Available Same day

Stock

10431.8406765Allowable

42.82 €

1 Available Same day

Stock

10482.6457726Allowable

44.97 €

1 Available Same day

Stock

10533.4508706Allowable

46.84 €

1 Available Same day

Stock

10584.2559686Allowable

49.62 €

1 Available Same day

Stock

10635610657Allowable

52.40 €

1 Available Same day

Stock

10685.8660628Allowable

55.80 €

1 Available Same day

Stock

10736.6711608Allowable

Loading...

  1. 1


Basic information

Type Slide Type Material Steel Rail Qty. Three-Step Slide
Height(mm) 12.7 Width(mm) 51.5 Surface Treatment Glossy Chromate Treatment (Trivalent Chromium)
