Pipe Rollers / with Shafts
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

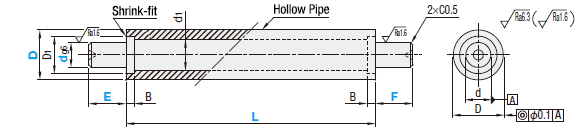

- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- Catalog
[S]Surface Treatment: Electroless Nickel Plating
Specification Table
| Part Number | — | d | — | L | — | E | — | F | — | M | — | N | — | P | — | S | |
| (Straight) (Both Ends Tapped) (Both Ends Retaining Ring Grooves) | ROLJ60 ROLJM80 ROLJT50 | — — — | 20 30 25 | — — — | 590 720 800 | — — — | E30 E20 E40 | — — — | F30 F20 F42 | — | M12 | — | N12 | — | P15 | — | S35 |
| Part Number | dg6 Selection | L 10 mm Increments | E·F 1 mm Increments | M (Coarse), N (Coarse) Selection | P·S 1 mm Increments | d1 | D1 | B | t Tolerance | d2 Tolerance | Applicable Retaining Ring | |||||||||||
| Type | D | |||||||||||||||||||||
| ROLJ ROLJM ROLJT | 50 | 15 | 100 to 800 | 5 to 45 | 5 | 6 | 5 ≤ P < E−5 5 ≤ S < F−5 | 40 | 43 | 25 | 1.15 | +0.14 0 | 14.3 | 0 −0.11 | JIS C Type 15 | |||||||
| 20 | 5 to 60 | 5 | 6 | 8 | 10 | 12 | 1.35 | 19 | 0 −0.21 | JIS C Type 20 | ||||||||||||
| 25 | 5 to 75 | 5 | 6 | 8 | 10 | 12 | 16 | 1.35 | 23.9 | JIS C Type 25 | ||||||||||||
| 60 | 20 | 5 to 60 | 5 | 6 | 8 | 10 | 12 | 49.5 | 53 | 30 | 1.35 | 19 | JIS C Type 20 | |||||||||
| 25 | 5 to 75 | 5 | 6 | 8 | 10 | 12 | 16 | 1.35 | 23.9 | JIS C Type 25 | ||||||||||||
| 30 | 5 to 90 | 8 | 10 | 12 | 16 | 20 | 1.65 | 28.6 | JIS C Type 30 | |||||||||||||
| 80 | 25 | 5 to 75 | 5 | 6 | 8 | 10 | 12 | 16 | 68.6 | 72 | 40 | 1.35 | 23.9 | JIS C Type 25 | ||||||||
| 30 | 5 to 90 | 8 | 10 | 12 | 16 | 20 | 1.65 | 28.6 | JIS C Type 30 | |||||||||||||
| 35 | 5 to 100 | 8 | 10 | 12 | 16 | 20 | 24 | 1.65 | 33 | 0 −0.25 | JIS C Type 35 | |||||||||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
| Part Number | Minimum order quantity | Volume Discount | RoHS | Metal part outer diameter D (mm) | Shaft O.D. d | E (mm) | F (mm) | L | M (mm) | N (mm) | P (mm) | S (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 11 Days | 10 | 50 | 15 | 5 ～ 45 | 5 ～ 45 | 100 ～ 800 | - | - | - | - | ||
| 1 | 11 Days | 10 | 50 | 20 | 5 ～ 60 | 5 ～ 60 | 100 ～ 800 | - | - | - | - | ||
| 1 | 11 Days | 10 | 50 | 25 | 5 ～ 75 | 5 ～ 75 | 100 ～ 800 | - | - | - | - | ||
| 1 | 11 Days | 10 | 60 | 20 | 5 ～ 60 | 5 ～ 60 | 100 ～ 800 | - | - | - | - | ||
| 1 | 11 Days | 10 | 60 | 25 | 5 ～ 75 | 5 ～ 75 | 100 ～ 800 | - | - | - | - | ||
| 1 | 11 Days | 10 | 60 | 30 | 5 ～ 90 | 5 ～ 90 | 100 ～ 800 | - | - | - | - | ||
| 1 | 13 Days | 10 | 80 | 25 | 5 ～ 75 | 5 ～ 75 | 100 ～ 800 | - | - | - | - | ||
| 1 | 13 Days | 10 | 80 | 30 | 5 ～ 90 | 5 ～ 90 | 100 ～ 800 | - | - | - | - | ||
| 1 | 13 Days | 10 | 80 | 35 | 5 ～ 100 | 5 ～ 100 | 100 ～ 800 | - | - | - | - | ||
| 1 | 11 Days | 10 | 50 | 15 | 5 ～ 45 | 5 ～ 45 | 100 ～ 800 | 5 ～ 6 | 5 ～ 6 | - | - | ||
| 1 | 11 Days | 10 | 50 | 20 | 5 ～ 60 | 5 ～ 60 | 100 ～ 800 | 5 ～ 12 | 5 ～ 12 | - | - | ||
| 1 | 11 Days | 10 | 50 | 25 | 5 ～ 75 | 5 ～ 75 | 100 ～ 800 | 5 ～ 16 | 5 ～ 16 | - | - | ||
| 1 | 11 Days | 10 | 60 | 20 | 5 ～ 60 | 5 ～ 60 | 100 ～ 800 | 5 ～ 12 | 5 ～ 12 | - | - | ||
| 1 | 11 Days | 10 | 60 | 25 | 5 ～ 75 | 5 ～ 75 | 100 ～ 800 | 5 ～ 16 | 5 ～ 16 | - | - | ||
| 1 | 11 Days | 10 | 60 | 30 | 5 ～ 90 | 5 ～ 90 | 100 ～ 800 | 8 ～ 20 | 8 ～ 20 | - | - | ||
| 1 | 13 Days | 10 | 80 | 25 | 5 ～ 75 | 5 ～ 75 | 100 ～ 800 | 5 ～ 16 | 5 ～ 16 | - | - | ||
| 1 | 11 Days | 10 | 80 | 30 | 5 ～ 90 | 5 ～ 90 | 100 ～ 800 | 8 ～ 20 | 8 ～ 20 | - | - | ||
| 1 | 13 Days | 10 | 80 | 35 | 5 ～ 100 | 5 ～ 100 | 100 ～ 800 | 8 ～ 24 | 8 ～ 24 | - | - | ||
| 1 | 11 Days | 10 | 50 | 15 | 5 ～ 45 | 5 ～ 45 | 100 ～ 800 | - | - | 5 ～ 39 | 5 ～ 39 | ||
| 1 | 11 Days | 10 | 50 | 20 | 5 ～ 60 | 5 ～ 60 | 100 ～ 800 | - | - | 5 ～ 54 | 5 ～ 54 | ||
| 1 | 11 Days | 10 | 50 | 25 | 5 ～ 75 | 5 ～ 75 | 100 ～ 800 | - | - | 5 ～ 69 | 5 ～ 69 | ||
| 1 | 11 Days | 10 | 60 | 20 | 5 ～ 60 | 5 ～ 60 | 100 ～ 800 | - | - | 5 ～ 54 | 5 ～ 54 | ||
| 1 | 11 Days | 10 | 60 | 25 | 5 ～ 75 | 5 ～ 75 | 100 ～ 800 | - | - | 5 ～ 69 | 5 ～ 69 | ||
| 1 | 11 Days | 10 | 60 | 30 | 5 ～ 90 | 5 ～ 90 | 100 ～ 800 | - | - | 5 ～ 84 | 5 ～ 84 | ||
| 1 | 13 Days | 10 | 80 | 25 | 5 ～ 75 | 5 ～ 75 | 100 ～ 800 | - | - | 5 ～ 69 | 5 ～ 69 | ||
| 1 | 13 Days | 10 | 80 | 30 | 5 ～ 90 | 5 ～ 90 | 100 ～ 800 | - | - | 5 ～ 84 | 5 ～ 84 | ||
| 1 | 13 Days | 10 | 80 | 35 | 5 ～ 100 | 5 ～ 100 | 100 ～ 800 | - | - | 5 ～ 94 | 5 ～ 94 |
Loading...
Basic information
| Roller Type | Metal Rollers | Mounting Method | With Shaft | Roller Shape | Straight |
|---|---|---|---|---|---|
| Length(mm) | Up to 50 / Up to 100 / Up to 300 / Up to 500 / Up to 1000 | Surface Treatment | Electroless Nickel Plating |
Configure
Basic Attributes
-
Metal part outer diameter D(mm)
-
Shaft O.D. d
- 15
- 20
- 25
- 30
- 35
-
E(mm)
-
F(mm)
-
L
-
M(mm)
-
N(mm)
-
P(mm)
-
S(mm)
-
Type
- ROLJ
- ROLJM
- ROLJT
-
Filter by CAD data type
- 2D
- 3D
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
