Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
![]() | Flange type nut orientation ● 1-Nut Type | ● 2-Nut Type |
![]() | ![]() | |
[ ! ] For the included nut, please select a shape from below. |
■Round Flanged |
![]() |
■Compact Flanged |
![]() |
■Straight Nuts | |
![]() | [A]Dimension of Included Key![]() |
Both Ends Stepped Type | Spline Shaft [M] EN 1.3505 Equiv., Nut [M] EN 1.7242 Equiv. [H]Hardness: 58HRC or more | Spline Shaft and Nut [M] Material: EN 1.4125 Equiv. [H]Hardness: 55 HRC or more |
Nut 1 pc. | Nut 1 pc. | |
With Round Flange Nut | BSJM | BSJMS |
With Compact Flange Nut | BSJN | — |
With Straight Nut | BSJS | BSJSS |
Part Number | — | L | — | F | — | E | — | P | — | Q | |
![]() ![]() | BSJS8 BSJS8G BSJS8L | — — — | 300 300 300 | — — — | F30 F30 F30 | — — — | E20 E20 E20 | — — — | P6 P6 P6 | — — — | Q5 Q5 Q5 |
Part Number | 1 mm Increments | P·Q Selection | D | (Y) | Mass (kg/m) | |||||||||||||
Type | No. | L | F·E | 1-Nut Type | ||||||||||||||
1-Nut Type | Min to Max | |||||||||||||||||
BSJM BSJN BSJS BSJMS BSJSS | * 6 | 60 to 500 (190) | When P, Q = 3 2 ≤ F·E ≤ 9 When P, Q = 4 2 ≤ F·E ≤ 16 When P, Q ≥ 5 2 ≤ F·E ≤ P·Q × 5 | 3 | 4 | 5 | 6 | 56 to 396 (186) | 0.23 | |||||||||
* 8 | 60 to 600 (190) | 4 | 5 | 6 | 8 | 56 to 396 (186) | 0.39 | |||||||||||
* 10 | 60 to 800 (390) | 4 | 5 | 6 | 8 | 10.4 | 56 to 596 (386) | 0.65 | ||||||||||
* 13 | 60 to 800 (390) | 5 | 6 | 8 | 10 | 13.4 | 56 to 596 (386) | 1.11 | ||||||||||
* 16 | 70 to 1000 (390) | 5 | 6 | 8 | 10 | 12 | 13 | 16.6 | 66 to 596 (386) | 1.65 | ||||||||
20 | 80 to 1000 | 8 | 10 | 12 | 13 | 15 | 16 | 20.6 | 76 to 696 | 2.57 | ||||||||
25 | 90 to 1300 | 8 | 10 | 12 | 13 | 15 | 16 | 20 | 25.8 | 86 to 896 | 4.04 | |||||||
30 | 100 to 1300 | 10 | 12 | 13 | 15 | 16 | 20 | 25 | 30.8 | 96 to 1146 | 5.85 |
No. | D (h6) | L | df | H | P.C.D. | d1 | d2 | h | W | d | B | Basic Rated Torque | Basic Load Rating | Allowable Static Moment | Mass (kg) | |||
Dynamic Ct (N⋅m) | Static C0 t (N⋅m) | Dynamic C (kN) | Static C0 (kN) | M01 (N⋅m) | M02 (N⋅m) | |||||||||||||
6 | 14 | 25 | 30 | 6 | 22 | 3.5 | 6 | 3.1 | 6.5 | 1.5 | 18 | 3.8 | 7 | 1.2 | 2.1 | 5 | 36 | 0.03 |
8 | 16 | 32 | 24 | 21 | 4.8 | 8.7 | 1.2 | 2.1 | 5 | 36 | 0.04 | |||||||
10 | 21 | 40 (33) | 42 (41) | 6 (8) | 32 (30) | 4.5 | 8 | 4.4 (5.3) | 14 (8.5) | 25 | 19 (11) | 34 (21) | 3.8 (2.4) | 6.9 (4.3) | 26 (15) | 181 (102) | 0.09 | |
13 | 24 | 44 (36) | 44 (45) | 7 (8) | 33 (34) | 15 (10) | — | 28 (20) | 52 (37) | 4.6 (3.3) | 8.3 (5.9) | 36 (22) | 251 (148) | 0.11 | ||||
16 | 31 | 50 | 51 | 7 | 40 | 4.4 | 18 | 51 | 93 | 6.2 | 11.1 | 56 | 386 | 0.2 | ||||
20 | 35 | 63 | 58 | 9 | 45 | 5.5 | 9.5 | 5.4 | 22.5 | 2 | 85 | 154 | 8.5 | 15.3 | 83 | 611 | 0.3 | |
25 | 42 | 71 | 65 | 52 | 26.5 | 193 | 348 | 15.4 | 27.7 | 173 | 1248 | 0.4 | ||||||
30 | 47 | 80 | 75 | 10 | 60 | 6.6 | 11 | 6.5 | 30 | 2.5 | 272 | 490 | 18.5 | 33.3 | 212 | 1581 | 0.57 |

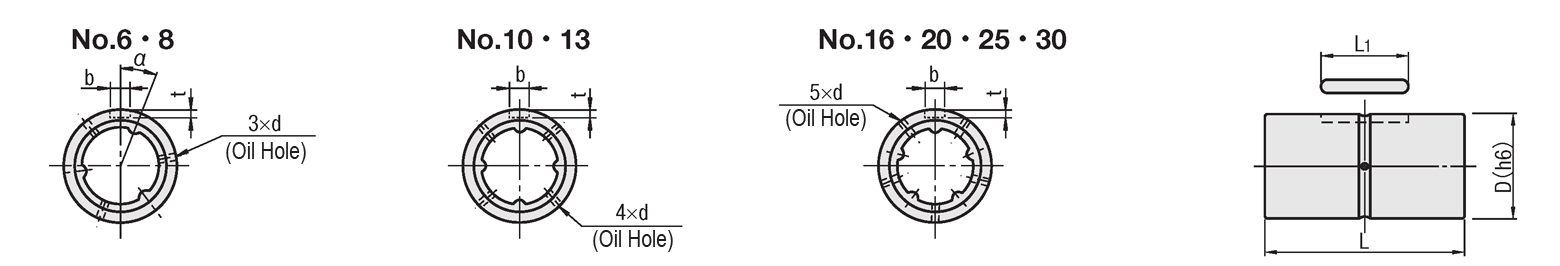

No. | D (h6) | L | b | t (+0.05 0) | d | α | Basic Rated Torque | Basic Load Rating | Allowable Static Moment | Mass (kg) | Dimensions of Key (Included) | |||||||||
Tolerance | Dynamic Ct (N⋅m) | Static C0 t (N⋅m) | Dynamic C (kN) | Static C0 (kN) | M01 (N⋅m) | M02 (N⋅m) | B | h | L1 | R | ||||||||||
Tolerance | Tolerance | |||||||||||||||||||
6 | 14 | 25 | 2.5 | +0.014 0 | 1.2 | 1.5 | 15° | 3.8 | 7 | 1.2 | 2.1 | 5 | 36 | 0.012 | 2.5 | +0.016 +0.006 | 2.5 | 0 −0.025 | 10.5 | 1.25 |
8 | 16 | 25° | 4.8 | 8.7 | 1.2 | 2.1 | 5 | 36 | 0.013 | 10.5 | ||||||||||
10 | 21 | 40 (33) | 3 | 1.5 | — | 19 (11) | 34 (21) | 3.8 (2.4) | 6.9 (4.3) | 26 (15) | 181 (102) | 0.06 | 3 | 3 | 17 (14) | 1.5 | ||||
13 | 24 | 44 (36) | 28 (20) | 52 (37) | 4.6 (3.3) | 8.3 (5.9) | 36 (22) | 251 (148) | 0.07 | 17 (14) | ||||||||||
16 | 31 | 50 | 3.5 | +0.018 0 | 2 | 51 | 93 | 6.2 | 11.1 | 56 | 386 | 0.15 | 3.5 | +0.024 +0.012 | 3.5 | 0 −0.030 | 18 | 1.75 | ||
20 | 35 | 63 | 4 | 2.5 | 2 | 85 | 154 | 8.5 | 15.3 | 83 | 611 | 0.2 | 4 | 4 | 29 | 2 | ||||
25 | 42 | 71 | 193 | 348 | 15.4 | 27.7 | 173 | 1248 | 0.29 | 33 | ||||||||||
30 | 47 | 80 | 2.5 | 272 | 490 | 18.5 | 33.3 | 212 | 1581 | 0.37 | 42 |
Part Number | — | L | — | F | — | E | — | P | — | Q | — | (SC, FC, etc.) |
BSJS8 | — | 250 | — | F20 | — | E20 | — | P5 | — | Q5 | — | SC15 |
Alterations | Wrench Flats | Set Screw Flat | Keyway on Shaft End | Retaining Ring Groove | Additional Spline Nuts | |||||||||||||||||||||||||||||||||||||||
![]() | ![]() | ![]() | ![]() | ![]() | ||||||||||||||||||||||||||||||||||||||||
Code | SC | FC | PKC·QKC | TA·TB | NTW | |||||||||||||||||||||||||||||||||||||||
Spec. |
|
| Adds a keyway on the shaft end P (Q). Ordering Code PKC10 (QKC10) [ ! ] P·Q ≥ 8 [ ! ]PKC·QKC = 1 mm Increments [ ! ]PKC·QKC ≤ P·Q × 3 PKC (QKC) ≤ F (E)-1 | Adds a retaining ring groove. Ordering Code TA10-TB10 TA, TB = 1 mm Increments [ ! ] P·Q ≥ 6 [ ! ] 4 ≤ TA·TB < F·E/2 | Adds a nut. (from one to two) [ ! ] BSJS·BSJM Applicable to BSJN only |
3D preview is not available, because the part number has not yet been determined.
Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Nut type | Shaft O.D. D (φ) | Shaft material | Nut Overall Length (mm) | Nut O.D. (φ) | Shaft Overall Length L (mm) | Basic Load Rating Dynamic Rating (N) | Allowable Torque (Nm) | Nut Material | Grease | E (mm) | F (mm) | P (mm) | Q (mm) | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
- | 1 | 10 Days | 10 | [Flange Type] Round Flanged | 6 | EN 1.7242 Equiv. | 25 | 14 | 60 ~ 500 | 1200 | 3.8 | EN 1.7242 Equiv. | Standard (S2) | 2 ~ 25 | 2 ~ 16 | 3 ~ 5 | 3 ~ 5 | ||
- | 1 | 12 Days | 10 | [Flange Type] Round Flanged | 6 | EN 1.7242 Equiv. | 25 | 14 | 60 ~ 500 | 1200 | 3.8 | EN 1.7242 Equiv. | LG2 | 2 ~ 25 | 2 ~ 25 | 3 ~ 5 | 3 ~ 5 | ||
- | 1 | 12 Days | 10 | [Flange Type] Round Flanged | 6 | EN 1.7242 Equiv. | 25 | 14 | 60 ~ 400 | 1200 | 3.8 | EN 1.7242 Equiv. | ET-100K | 2 ~ 9 | 2 ~ 9 | 3 ~ 5 | 3 ~ 5 | ||
- | 1 | 10 Days | 10 | [Flange Type] Round Flanged | 8 | EN 1.7242 Equiv. | 25 | 16 | 60 ~ 400 | 1200 | 4.8 | EN 1.7242 Equiv. | Standard (S2) | 2 ~ 30 | 2 ~ 30 | 4 ~ 6 | 4 ~ 6 | ||
- | 1 | 12 Days | 10 | [Flange Type] Round Flanged | 8 | EN 1.7242 Equiv. | 25 | 16 | 60 ~ 400 | 1200 | 4.8 | EN 1.7242 Equiv. | LG2 | 2 ~ 30 | 2 ~ 30 | 4 ~ 6 | 4 ~ 6 | ||
- | 1 | 12 Days | 10 | [Flange Type] Round Flanged | 8 | EN 1.7242 Equiv. | 25 | 16 | 60 ~ 400 | 1200 | 4.8 | EN 1.7242 Equiv. | ET-100K | 2 ~ 30 | 2 ~ 30 | 4 ~ 6 | 4 ~ 6 | ||
- | 1 | 10 Days | 10 | [Flange Type] Round Flanged | 10.4 | EN 1.7242 Equiv. | 40 | 21 | 60 ~ 800 | 3800 | 19 | EN 1.7242 Equiv. | Standard (S2) | 2 ~ 40 | 2 ~ 40 | 4 ~ 8 | 4 ~ 8 | ||
- | 1 | 12 Days | 10 | [Flange Type] Round Flanged | 10.4 | EN 1.7242 Equiv. | 40 | 21 | 60 ~ 800 | 3800 | 19 | EN 1.7242 Equiv. | LG2 | 2 ~ 40 | 2 ~ 40 | 4 ~ 8 | 4 ~ 8 | ||
- | 1 | 12 Days | 10 | [Flange Type] Round Flanged | 10.4 | EN 1.7242 Equiv. | 40 | 21 | 60 ~ 800 | 3800 | 19 | EN 1.7242 Equiv. | ET-100K | 2 ~ 40 | 2 ~ 40 | 4 ~ 8 | 4 ~ 8 | ||
- | 1 | 10 Days | 10 | [Flange Type] Round Flanged | 13.4 | EN 1.7242 Equiv. | 44 | 24 | 60 ~ 800 | 4600 | 28 | EN 1.7242 Equiv. | Standard (S2) | 2 ~ 50 | 2 ~ 50 | 5 ~ 10 | 5 ~ 10 | ||
- | 1 | 12 Days | 10 | [Flange Type] Round Flanged | 13.4 | EN 1.7242 Equiv. | 44 | 24 | 60 ~ 800 | 4600 | 28 | EN 1.7242 Equiv. | LG2 | 2 ~ 50 | 2 ~ 50 | 5 ~ 10 | 5 ~ 10 | ||
- | 1 | 12 Days | 10 | [Flange Type] Round Flanged | 13.4 | EN 1.7242 Equiv. | 44 | 24 | 60 ~ 800 | 4600 | 28 | EN 1.7242 Equiv. | ET-100K | 2 ~ 50 | 2 ~ 50 | 5 ~ 10 | 5 ~ 10 | ||
- | 1 | 10 Days | 10 | [Flange Type] Round Flanged | 16.6 | EN 1.7242 Equiv. | 50 | 31 | 70 ~ 1000 | 6200 | 51 | EN 1.7242 Equiv. | Standard (S2) | 2 ~ 65 | 2 ~ 65 | 5 ~ 13 | 5 ~ 13 | ||
- | 1 | 12 Days | 10 | [Flange Type] Round Flanged | 16.6 | EN 1.7242 Equiv. | 50 | 31 | 70 ~ 1000 | 6200 | 51 | EN 1.7242 Equiv. | LG2 | 2 ~ 65 | 2 ~ 65 | 5 ~ 13 | 5 ~ 13 | ||
- | 1 | 12 Days | 10 | [Flange Type] Round Flanged | 16.6 | EN 1.7242 Equiv. | 50 | 31 | 70 ~ 1000 | 6200 | 51 | EN 1.7242 Equiv. | ET-100K | 2 ~ 65 | 2 ~ 65 | 5 ~ 13 | 5 ~ 13 | ||
- | 1 | 10 Days | 10 | [Flange Type] Round Flanged | 20.6 | EN 1.7242 Equiv. | 63 | 35 | 80 ~ 1000 | 8500 | 85 | EN 1.7242 Equiv. | Standard (S2) | 2 ~ 80 | 2 ~ 80 | 8 ~ 16 | 8 ~ 16 | ||
- | 1 | 12 Days | 10 | [Flange Type] Round Flanged | 20.6 | EN 1.7242 Equiv. | 63 | 35 | 80 ~ 1000 | 8500 | 85 | EN 1.7242 Equiv. | LG2 | 2 ~ 80 | 2 ~ 80 | 8 ~ 16 | 8 ~ 16 | ||
- | 1 | 12 Days | 10 | [Flange Type] Round Flanged | 20.6 | EN 1.7242 Equiv. | 63 | 35 | 80 ~ 1000 | 8500 | 85 | EN 1.7242 Equiv. | ET-100K | 2 ~ 80 | 2 ~ 80 | 8 ~ 16 | 8 ~ 16 | ||
- | 1 | 10 Days | 10 | [Flange Type] Round Flanged | 25.8 | EN 1.7242 Equiv. | 71 | 42 | 90 ~ 1300 | 15400 | 193 | EN 1.7242 Equiv. | Standard (S2) | 2 ~ 100 | 2 ~ 100 | 8 ~ 20 | 8 ~ 20 | ||
- | 1 | 12 Days | 10 | [Flange Type] Round Flanged | 25.8 | EN 1.7242 Equiv. | 71 | 42 | 90 ~ 1300 | 15400 | 193 | EN 1.7242 Equiv. | LG2 | 2 ~ 100 | 2 ~ 100 | 8 ~ 20 | 8 ~ 20 | ||
- | 1 | 12 Days | 10 | [Flange Type] Round Flanged | 25.8 | EN 1.7242 Equiv. | 71 | 42 | 90 ~ 1300 | 15400 | 193 | EN 1.7242 Equiv. | ET-100K | 2 ~ 100 | 2 ~ 100 | 8 ~ 20 | 8 ~ 20 | ||
- | 1 | 10 Days | 10 | [Flange Type] Round Flanged | 30.8 | EN 1.7242 Equiv. | 80 | 47 | 100 ~ 1300 | 18500 | 272 | EN 1.7242 Equiv. | Standard (S2) | 2 ~ 125 | 2 ~ 125 | 10 ~ 25 | 10 ~ 25 | ||
- | 1 | 12 Days | 10 | [Flange Type] Round Flanged | 30.8 | EN 1.7242 Equiv. | 80 | 47 | 100 ~ 1300 | 18500 | 272 | EN 1.7242 Equiv. | LG2 | 2 ~ 125 | 2 ~ 125 | 10 ~ 25 | 10 ~ 25 | ||
- | 1 | 12 Days | 10 | [Flange Type] Round Flanged | 30.8 | EN 1.7242 Equiv. | 80 | 47 | 100 ~ 1300 | 18500 | 272 | EN 1.7242 Equiv. | ET-100K | 2 ~ 125 | 2 ~ 125 | 10 ~ 25 | 10 ~ 25 | ||
- | 1 | 9 Days | 10 | [Flange Type] Round Flanged | 6 | EN 1.4125 Equiv. | 25 | 14 | 60 ~ 190 | 1200 | 3.8 | EN 1.4125 Equiv. | Standard (S2) | 2 ~ 9 | 2 ~ 9 | 3 ~ 5 | 3 ~ 5 | ||
- | 1 | 11 Days | 10 | [Flange Type] Round Flanged | 6 | EN 1.4125 Equiv. | 25 | 14 | 60 ~ 190 | 1200 | 3.8 | EN 1.4125 Equiv. | LG2 | 2 ~ 9 | 2 ~ 9 | 3 ~ 5 | 3 ~ 5 | ||
- | 1 | 11 Days | 10 | [Flange Type] Round Flanged | 6 | EN 1.4125 Equiv. | 25 | 14 | 60 ~ 190 | 1200 | 3.8 | EN 1.4125 Equiv. | ET-100K | 2 ~ 9 | 2 ~ 9 | 3 ~ 5 | 3 ~ 5 | ||
- | 1 | 9 Days | 10 | [Flange Type] Round Flanged | 8 | EN 1.4125 Equiv. | 25 | 16 | 60 ~ 190 | 1200 | 4.8 | EN 1.4125 Equiv. | Standard (S2) | 2 ~ 30 | 2 ~ 30 | 4 ~ 6 | 4 ~ 6 | ||
- | 1 | 11 Days | 10 | [Flange Type] Round Flanged | 8 | EN 1.4125 Equiv. | 25 | 16 | 60 ~ 190 | 1200 | 4.8 | EN 1.4125 Equiv. | LG2 | 2 ~ 30 | 2 ~ 30 | 4 ~ 6 | 4 ~ 6 | ||
- | 1 | 11 Days | 10 | [Flange Type] Round Flanged | 8 | EN 1.4125 Equiv. | 25 | 16 | 60 ~ 190 | 1200 | 4.8 | EN 1.4125 Equiv. | ET-100K | 2 ~ 30 | 2 ~ 30 | 4 ~ 6 | 4 ~ 6 | ||
- | 1 | 9 Days | 10 | [Flange Type] Round Flanged | 10.4 | EN 1.4125 Equiv. | 33 | 21 | 60 ~ 390 | 2400 | 11 | EN 1.4125 Equiv. | Standard (S2) | 2 ~ 40 | 2 ~ 40 | 4 ~ 8 | 4 ~ 8 | ||
- | 1 | 11 Days | 10 | [Flange Type] Round Flanged | 10.4 | EN 1.4125 Equiv. | 33 | 21 | 60 ~ 390 | 2400 | 11 | EN 1.4125 Equiv. | LG2 | 2 ~ 40 | 2 ~ 40 | 4 ~ 8 | 4 ~ 8 | ||
- | 1 | 11 Days | 10 | [Flange Type] Round Flanged | 10.4 | EN 1.4125 Equiv. | 33 | 21 | 60 ~ 390 | 2400 | 11 | EN 1.4125 Equiv. | ET-100K | 2 ~ 40 | 2 ~ 40 | 4 ~ 8 | 4 ~ 8 | ||
- | 1 | 9 Days | 10 | [Flange Type] Round Flanged | 13.4 | EN 1.4125 Equiv. | 36 | 24 | 60 ~ 390 | 3300 | 20 | EN 1.4125 Equiv. | Standard (S2) | 2 ~ 50 | 2 ~ 50 | 5 ~ 10 | 5 ~ 10 | ||
- | 1 | 11 Days | 10 | [Flange Type] Round Flanged | 13.4 | EN 1.4125 Equiv. | 36 | 24 | 60 ~ 390 | 3300 | 20 | EN 1.4125 Equiv. | LG2 | 2 ~ 50 | 2 ~ 50 | 5 ~ 10 | 5 ~ 10 | ||
- | 1 | 11 Days | 10 | [Flange Type] Round Flanged | 13.4 | EN 1.4125 Equiv. | 36 | 24 | 60 ~ 390 | 3300 | 20 | EN 1.4125 Equiv. | ET-100K | 2 ~ 50 | 2 ~ 50 | 5 ~ 10 | 5 ~ 10 | ||
- | 1 | 9 Days | 10 | [Flange Type] Round Flanged | 16.6 | EN 1.4125 Equiv. | 50 | 31 | 70 ~ 390 | 6200 | 51 | EN 1.4125 Equiv. | Standard (S2) | 2 ~ 65 | 2 ~ 65 | 5 ~ 13 | 5 ~ 13 | ||
- | 1 | 11 Days | 10 | [Flange Type] Round Flanged | 16.6 | EN 1.4125 Equiv. | 50 | 31 | 70 ~ 390 | 6200 | 51 | EN 1.4125 Equiv. | LG2 | 2 ~ 65 | 2 ~ 65 | 5 ~ 13 | 5 ~ 13 | ||
- | 1 | 11 Days | 10 | [Flange Type] Round Flanged | 16.6 | EN 1.4125 Equiv. | 50 | 31 | 70 ~ 390 | 6200 | 51 | EN 1.4125 Equiv. | ET-100K | 2 ~ 65 | 2 ~ 65 | 5 ~ 13 | 5 ~ 13 | ||
- | 1 | 10 Days | 10 | [Flange Type] Compact Flanged | 6 | EN 1.7242 Equiv. | 25 | 14 | 60 ~ 400 | 1200 | 3.8 | EN 1.7242 Equiv. | Standard (S2) | 2 ~ 25 | 2 ~ 25 | 3 ~ 5 | 3 ~ 5 | ||
- | 1 | 12 Days | 10 | [Flange Type] Compact Flanged | 6 | EN 1.7242 Equiv. | 25 | 14 | 60 ~ 400 | 1200 | 3.8 | EN 1.7242 Equiv. | LG2 | 2 ~ 9 | 2 ~ 9 | 3 ~ 5 | 3 ~ 5 | ||
- | 1 | 12 Days | 10 | [Flange Type] Compact Flanged | 6 | EN 1.7242 Equiv. | 25 | 14 | 60 ~ 400 | 1200 | 3.8 | EN 1.7242 Equiv. | ET-100K | 2 ~ 9 | 2 ~ 9 | 3 ~ 5 | 3 ~ 5 | ||
- | 1 | 10 Days | 10 | [Flange Type] Compact Flanged | 8 | EN 1.7242 Equiv. | 25 | 16 | 60 ~ 400 | 1200 | 4.8 | EN 1.7242 Equiv. | Standard (S2) | 2 ~ 30 | 2 ~ 30 | 4 ~ 6 | 4 ~ 6 | ||
- | 1 | 12 Days | 10 | [Flange Type] Compact Flanged | 8 | EN 1.7242 Equiv. | 25 | 16 | 60 ~ 400 | 1200 | 4.8 | EN 1.7242 Equiv. | LG2 | 2 ~ 30 | 2 ~ 30 | 4 ~ 6 | 4 ~ 6 | ||
- | 1 | 12 Days | 10 | [Flange Type] Compact Flanged | 8 | EN 1.7242 Equiv. | 25 | 16 | 60 ~ 400 | 1200 | 4.8 | EN 1.7242 Equiv. | ET-100K | 2 ~ 30 | 2 ~ 30 | 4 ~ 6 | 4 ~ 6 | ||
- | 1 | 10 Days | 10 | [Flange Type] Compact Flanged | 10.4 | EN 1.7242 Equiv. | 40 | 21 | 60 ~ 800 | 3800 | 19 | EN 1.7242 Equiv. | Standard (S2) | 2 ~ 40 | 2 ~ 40 | 4 ~ 8 | 4 ~ 8 | ||
- | 1 | 12 Days | 10 | [Flange Type] Compact Flanged | 10.4 | EN 1.7242 Equiv. | 40 | 21 | 60 ~ 800 | 3800 | 19 | EN 1.7242 Equiv. | LG2 | 2 ~ 40 | 2 ~ 40 | 4 ~ 8 | 4 ~ 8 | ||
- | 1 | 12 Days | 10 | [Flange Type] Compact Flanged | 10.4 | EN 1.7242 Equiv. | 40 | 21 | 60 ~ 800 | 3800 | 19 | EN 1.7242 Equiv. | ET-100K | 2 ~ 40 | 2 ~ 40 | 4 ~ 8 | 4 ~ 8 | ||
- | 1 | 10 Days | 10 | Straight | 6 | EN 1.7242 Equiv. | 25 | 14 | 60 ~ 400 | 1200 | 3.8 | EN 1.7242 Equiv. | Standard (S2) | 2 ~ 9 | 2 ~ 9 | 3 ~ 5 | 3 ~ 5 | ||
- | 1 | 12 Days | 10 | Straight | 6 | EN 1.7242 Equiv. | 25 | 14 | 60 ~ 400 | 1200 | 3.8 | EN 1.7242 Equiv. | LG2 | 2 ~ 9 | 2 ~ 9 | 3 ~ 5 | 3 ~ 5 | ||
- | 1 | 12 Days | 10 | Straight | 6 | EN 1.7242 Equiv. | 25 | 14 | 60 ~ 400 | 1200 | 3.8 | EN 1.7242 Equiv. | ET-100K | 2 ~ 9 | 2 ~ 9 | 3 ~ 5 | 3 ~ 5 | ||
- | 1 | 10 Days | 10 | Straight | 8 | EN 1.7242 Equiv. | 25 | 16 | 60 ~ 400 | 1200 | 4.8 | EN 1.7242 Equiv. | Standard (S2) | 2 ~ 30 | 2 ~ 30 | 4 ~ 6 | 4 ~ 6 | ||
- | 1 | 12 Days | 10 | Straight | 8 | EN 1.7242 Equiv. | 25 | 16 | 60 ~ 400 | 1200 | 4.8 | EN 1.7242 Equiv. | LG2 | 2 ~ 30 | 2 ~ 30 | 4 ~ 6 | 4 ~ 6 | ||
- | 1 | 12 Days | 10 | Straight | 8 | EN 1.7242 Equiv. | 25 | 16 | 60 ~ 400 | 1200 | 4.8 | EN 1.7242 Equiv. | ET-100K | 2 ~ 30 | 2 ~ 30 | 4 ~ 6 | 4 ~ 6 | ||
- | 1 | 10 Days | 10 | Straight | 10.4 | EN 1.7242 Equiv. | 40 | 21 | 60 ~ 800 | 3800 | 19 | EN 1.7242 Equiv. | Standard (S2) | 2 ~ 40 | 2 ~ 40 | 4 ~ 8 | 4 ~ 8 | ||
- | 1 | 12 Days | 10 | Straight | 10.4 | EN 1.7242 Equiv. | 40 | 21 | 60 ~ 800 | 3800 | 19 | EN 1.7242 Equiv. | LG2 | 2 ~ 40 | 2 ~ 40 | 4 ~ 8 | 4 ~ 8 | ||
- | 1 | 12 Days | 10 | Straight | 10.4 | EN 1.7242 Equiv. | 40 | 21 | 60 ~ 800 | 3800 | 19 | EN 1.7242 Equiv. | ET-100K | 2 ~ 40 | 2 ~ 40 | 4 ~ 8 | 4 ~ 8 | ||
- | 1 | 10 Days | 10 | Straight | 13.4 | EN 1.7242 Equiv. | 44 | 24 | 60 ~ 800 | 4600 | 28 | EN 1.7242 Equiv. | Standard (S2) | 2 ~ 50 | 2 ~ 50 | 5 ~ 10 | 5 ~ 10 | ||
- | 1 | 12 Days | 10 | Straight | 13.4 | EN 1.7242 Equiv. | 44 | 24 | 60 ~ 800 | 4600 | 28 | EN 1.7242 Equiv. | LG2 | 2 ~ 50 | 2 ~ 50 | 5 ~ 10 | 5 ~ 10 | ||
- | 1 | 12 Days | 10 | Straight | 13.4 | EN 1.7242 Equiv. | 44 | 24 | 60 ~ 800 | 4600 | 28 | EN 1.7242 Equiv. | ET-100K | 2 ~ 50 | 2 ~ 50 | 5 ~ 10 | 5 ~ 10 |
Loading...
Precautions for Ball Spline Assembly | ![]() |
■Check Assembly Position | |
Match Mark Numbers are entered on nuts and spline shafts (see the diagram on the right). | |
When re-assembling, confirm the match mark numbers, character orientations, and positional relationship of parts. | |
If the alignment marks are not aligned correctly, the function will be affected. | |
■Tolerance for Mating Bores | |
H7 tolerance is recommended for mating bores for the spline nuts when mounting them on housings. | |
■For Customers machining the shaft ends | |
In order to facilitate nut insertions, chamfer the machined shaft ends, and remove burrs on the edges of the spline groove with a round file. |
Shaft end shape (left) | Stepped | Shaft end shape (right) | Stepped | Type | Solid |
---|---|---|---|---|---|
Torque | Middle Torque | Number of nuts(pcs.) | 1 | Nut length | Standard |
Preload | Standard | Accuracy Grade | Standard Grade | The circulation type of balls | 1-fach |
