Flat Latch (4-Hole Type)
Stainless steel 4-hole flat latch.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product specification
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
HHMFLW
*Cross recessed flat head tapping screws 2.7 × 16 (stainless steel) are included.
*Includes two types of strike plate that can be selected according to the mounting location.
Strike Plate A
Strike Plate B
| Part Name | [M] Material | [S]Surface Treatment |
| Main Body | EN 1.4301 Equiv. | Brushed finish |
| Drop Bar | Tumble finishing | |
| Knob | Brushed finish | |
| Strike Plate | Brushed finish |

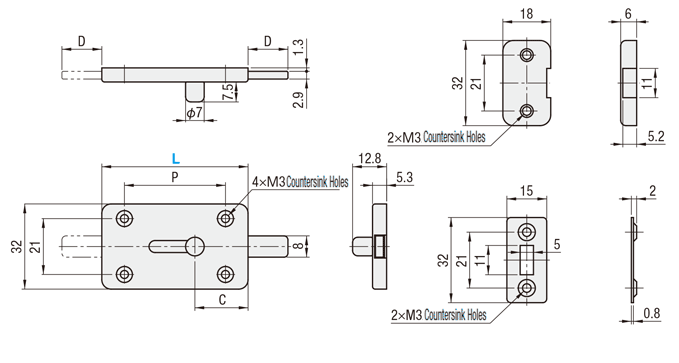

Specification Table
| Part Number |
| HHMFLW35 |
| Part Number | P | C | D | Mass (g) | |
| Type | L | ||||
| HHMFLW | 35 | 23 | 11.5 | 12 | 32 |
| 55 | 38 | 20 | 15 | 47 | |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Loading...
Basic information
| Type | Flat Latch | Material | EN 1.4301 Equiv. | Key | N/A |
|---|---|---|---|---|---|
| Properties / applications | Not Applicable | Environmentally Friendly | RoHS compliant (10 substances) | Latch Shape | Flat Latch |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
