Antivibration Gel - Tapped and Threaded Studs
- Volume Discount
The use of metal fitting for tapped thread allows to select the mounting method according to the operating environment.
(i)Remark
- Please select bolts for tapped thread mounting separately.
- See here for the screw/bolt selection page
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
SBGELF (Lower Thread Short Type)
[!] Rotation preventing flange is machined on the metal fitting for tapped thread. Hold it with a wrench, etc., when installing.
[!] Due to specifications, the metal fitting for tapped thread may be misaligned by up to ±6° relative to the slitting of the lower thread. This does not affect actual use.
Main Body: Silicone
Attaching Portion: EN 1.4301 Equiv.
Hex Nut: EN 1.4301 Equiv., 1 pc.
Spring Washer: EN 1.4301 Equiv., 1 pc.
Specification Table
| Part Number |
| BGELF050 |
| Type | Part Number | D1 | D2 | H1 | H2 | ℓ | M | ||
| Type | No. | (BGELF) | (SBGELF) | (Coarse) | |||||
| Lightweight | BGELF SBGELF | 030 | 30 | 24 | 28 | 18 | 18 | 14 | 6 |
| 050 | |||||||||
| 070 | |||||||||
| 071* | 30 | 8 | |||||||
| 100 | 28 | 6 | |||||||
| 101* | 30 | 8 | |||||||
| Type | Part Number | Working Load N[kgf] | Spring Constant N/mm[kgf/mm] ±20% | Hardness | Frequency Used Hz | Body Color | ||
| Type | No. | Asker C | Penetration | |||||
| Lightweight | BGELF SBGELF | 030 | 19.6 to 34.3 {2.0 to 3.5} | 13.13 {1.34} | 19.7 | 32 | 17 or more | (1) Milky White |
| 050 | 34.3 to 53.9 {3.5 to 5.5} | 21.75 {2.22} | 29.8 | — | 16 or more | (2) Light Green | ||
| 070 | 53.9 to 83.4 {5.5 to 8.5} | 33.71 {3.44} | 38.0 | — | 16 or more | (3) Light Orange | ||
| 071* | ||||||||
| 100 | 83.4 to 122.5 {8.5 to 12.5} | 46.74 {4.77} | 44.3 | — | 16 or more | (4) Light Blue | ||
| 101* | ||||||||
[!] Please select bolts for tapped thread mounting separately. (Coarse / M6 or M8)
* No. 071 and 101 are applicable to BGELF only.
kgf = N × 0.101972
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| BGELF030 |
| BGELF050 |
| BGELF070 |
| BGELF100 |
| SBGELF030 |
| SBGELF050 |
| SBGELF070 |
| SBGELF100 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Connecting Screw M | Height H, Thickness T (mm) | Spring Constant (N/mm) | Body Color | Applicable Frequency Range (Hz) | Applied Load (N) | Threaded Shape | Max. Allowable Load (N) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
48.84 € | 1 | Available | 5 Days | 6 | 28 | 13.13 | [Translucent White] Translucent White | 17～ | 19.6～34.3 | Standard Type | 34.3 | |
49.24 € | 1 | Available | 5 Days | 6 | 28 | 21.75 | [Light Green (Unused)] Light Green | 16～ | 34.3～53.9 | Standard Type | 53.9 | |
49.24 € | 1 | Available | 5 Days | 6 | 28 | 33.71 | [Light Orange] Pale Orange | 16～ | 53.9～83.4 | Standard Type | 83.4 | |
49.24 € | 1 | Available | 5 Days | 6 | 28 | 46.74 | [Light Blue] Pale Blue | 16～ | 83.4～122.5 | Standard Type | 122.5 | |
48.84 € | 1 | Available | 5 Days | 6 | 28 | 13.13 | [Translucent White] Translucent White | 17～ | 19.6～34.3 | Lower Thread Short Type | 34.3 | |
48.84 € | 1 | Available | 5 Days | 6 | 28 | 21.75 | [Light Green (Unused)] Light Green | 16～ | 34.3～53.9 | Lower Thread Short Type | 53.9 | |
48.84 € | 1 | Available | 5 Days | 6 | 28 | 33.71 | [Light Orange] Pale Orange | 16～ | 53.9～83.4 | Lower Thread Short Type | 83.4 | |
48.84 € | 1 | Available | 5 Days | 6 | 28 | 46.74 | [Light Blue] Pale Blue | 16～ | 83.4～122.5 | Lower Thread Short Type | 122.5 |
Loading...
Specifications / Overview

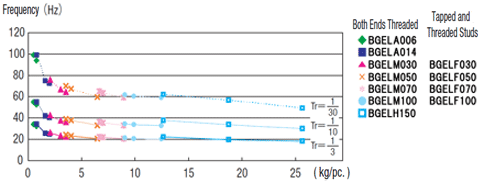

[ ! ] Since resonance point is set to a low level value, vibration in a relatively low frequency zone can be dampened.
App. Example
·Effective for light loads and minute vibrations that are difficult for antivibration rubbers to absorb.
·Excels in fatigue resistance and durability.
·There are no secondary and tertiary resonances that hinder the antivibration effects.
■Properties
| Material | Weather Resistance | Water Resistance | Oil Resistance | Ozone Resistance | Operating Temp. Range |
| Silicone | ◎ | ◎ | △ | ◎ | －40 to 200°C |
| Natural Rubber | △ | △ | × | × | －30 to 60°C |
| Chloroprene Rubber | ◎ | △ | ○ | ○ | －20 to 70°C |
[ ! ] Silicone is an artificial compound made from Silicon.
■ How to Mount
·Attach so that load is applied evenly.
·Antivibration Gel products are to be used for vertically oriented loads only. Install BGELP and BGELA bushings with the small diameter ends facing up.
·Shifted or twisted installation drastically lowers performance and durability.
·Do not use in tension.
Basic information
| Type | Washers with Antivibration Gel | Material | Gel (Silicone) | Maximum Allowable Load (Range)(N) | ～300 |
|---|---|---|---|---|---|
| Connection Shape | Male Thread + Female Thread | Applications | Vibration Damping Proofing | Usage Characteristics | Durability / Weather Resistance / Water Resistance / Oil Resistance / Ozone Resistance |
| Operating Temp. Range(℃) | -40～200 |
