Damper Flat Plastic Hinges
- Volume Discount
·It closes slowly, increasing safety.
·There are two types of torque generation directions: opening (clockwise) and closing (counterclockwise).
·Movement in the opposite direction of torque generation is also smooth.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

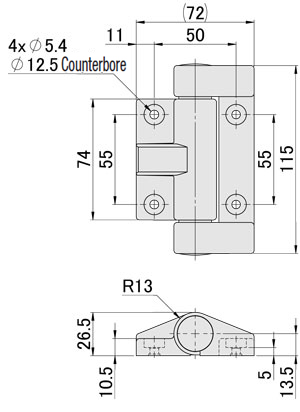

- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information

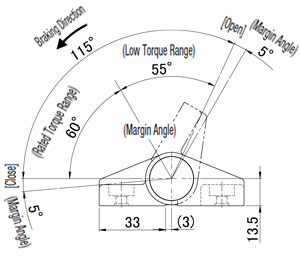

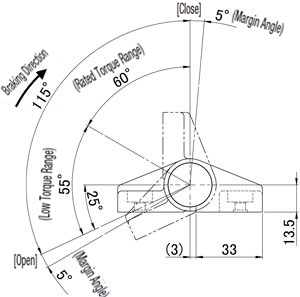

| HHPRW | Shaft rotation L type (Direction of Torque: Counterclockwise) | Shaft rotation R type (Direction of Torque: Clockwise) |
 |  |  |
 |  |
Part Name | [M] Material |
| Main Body | PBT Resin |
| Cap | Polypropylene |
Specification Table
Part Number | — | Shaft Rotating Direction |
HHPRW50 | — | L |
Part Number | Shaft Rotating Direction Selection | * Appropriate load torque range | Max. Operating Angle | Operating Temperature Range (°C) | Mass (g) | ||
Type | No. | N⋅m | kgf⋅cm | ||||
HHPRW | 50 | L (Counterclockwise) R (Clockwise) | 3 to 5 | 30.6 to 51 | 115 | 0 to 40 | 150 |
70 | 5 to 7 | 51 to 71.4 | |||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| HHPRW50-L |
| HHPRW50-R |
| HHPRW70-L |
| HHPRW70-R |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Maximum Working Torque (N·m) | Shaft Rotating Direction | |
|---|---|---|---|---|---|---|
50.83 € | 1 | Available | 5 Days | 5 | Counterclockwise [L] | |
50.83 € | 1 | Available | 5 Days | 5 | Clockwise [R] | |
56.98 € | 1 | Available | 5 Days | 7 | Counterclockwise [L] | |
56.98 € | 1 | Available | 5 Days | 7 | Clockwise [R] |
Loading...
- The operating angle is 115°. Please place a stopper such as a door stay to prevent the door from opening or closing beyond this limit.
- Please use within the applicable load torque range. Using beyond the applicable load torque range may cause damage.
- Horizontally align the axes of each hinge.
■How to Select a Damper Hinge
When selecting, you will need to calculate the maximum torque based on the size and weight of the lid you are installing.
The lid in a horizontal position generates maximum torque as shown below.
Calculate maximum torque according to the following formula before selecting a damper that satisfies the specifications.
* It is assumed that the center of gravity is in the center.
[Formula]
Max. torque T = L (door dimension: m) / 2 × m (weight kg) × 9.8 (Newton N)
Example: When L = 0.2 m and m = 10 kg
Max. torque T = 0.2/2 × 10 × 9.8 = 9.8 N⋅m
⇒Select HHPRW50
| L (Lid dimensions) | ||||||||||
kg | m | |||||||||
0.15 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 | 0.5 | 0.55 | 0.6 | ||
| m (mass) | 2.0 | |||||||||
3.0 | ||||||||||
4.0 | ||||||||||
5.0 | HHPRW50 | |||||||||
6.0 | ||||||||||
7.0 | HHPRW70 | |||||||||
8.0 | ||||||||||
9.0 | ||||||||||
10.0 | ||||||||||
11.0 | ||||||||||
12.0 | ||||||||||
13.0 | ||||||||||
14.0 | ||||||||||
15.0 | * | |||||||||
16.0 | Select hinges where the area of the mass of the lid m on the vertical axis and the dimension L on the horizontal axis crosses on the chart. | |||||||||
17.0 | * The table is only for reference. | |||||||||
18.0 | Please be sure to check the actual product as there may be errors for some specifications. | |||||||||
19.0 | * This is a reference table when using two hinges. | |||||||||
20.0 | ||||||||||

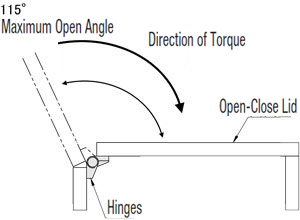

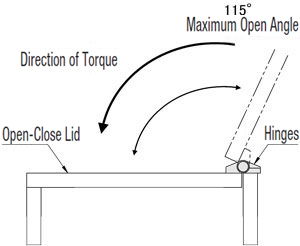

| Shaft rotation L type | Shaft rotation R type | ||
| External upper lid | Internal upper lid | ||
 |  |  | |
Basic information
| Type | Standard | Operating Environment | Standard | Main Body Material | PBT |
|---|---|---|---|---|---|
| Additional Function | With Damper | Angle(deg) | 115 | Mounting Method | Screw Mounting |
| Mounting Screw Hole Type | Counterbored | Properties / applications | Low Dust Generation / Insulation Property | Material Details | PBT |
| Environmentally Friendly | RoHS compliant (10 substances) |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
