[Clean & Pack]Parallel Keys - With Tapped Counterbore Hole

[Clean & Pack]Parallel Keys - With Tapped Counterbore Hole

MISUMI

MISUMI

Three types of cleaning methods are available: degreasing, precision cleaning, and electrolytic polishing + precision cleaning. They can be ordered from one piece with the standard part number.
This eliminates the need for customer cleaning or outsourced cleaning, reducing the amount of time and effort required.
■Part Number for Clean & Pack Products
·Degreasing (Anti-rust single packing)　　　　 : Part Number SL-□□
·Precision cleaning (Degassing double packing)　　　　 : Part Number SH-□□
·Electrolytic polishing + precision cleaning (Degassing double packing) : Part Number SHD-□□
Product Part Number Cleaning Method Packaging Type Effects Compared to Uncleaned Product Environment (Standard) Possible applications
SL-□□ Degreasing Anti-rust packing Oil removal General environment Regular assembly process
Post battery assembly process
SH-□□ Precision cleaning Degassing double packing Oil removal
Dust removal		 Clean environment (Class 10 to 1,000*) Battery assembly process
LCD-related post assembly process
In-vehicle camera assembly process
SHD-□□ Electrolytic polishing + precision cleaning Degassing double packing Oil removal
Dust removal
Outgas reduction		 Vacuum environment
Clean environment (Class 10 to 1,000*)		 Pre-semiconductor process
Liquid crystal deposition process
Pre-OLED process
*US FED STD 209E, ISO 14644-1 ISO 4 to ISO 6 Equiv.
■Notes
Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product.
Please be careful about the application location and storage environment.

[Features]·Parallel key (with tapped counterbore hole). [Material]·EN 1.4401 Equiv. is available.

(i)Remark

  • Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product.
    Please be careful about the application location and storage environment.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

SL-KEDSY
SH-KEDSY
SHD-KEDSY
SL-KESSY
SH-KESSY
SHD-KESSY
SL-KEGSY
SH-KEGSY
SHD-KEGSY
[Clean & Pack]Parallel Keys - With Tapped Counterbore Hole: Related Image
Type[M] MaterialTensile StrengthCleaning Method
Cleaning MethodCleaning EnvironmentPackaging TypePacking Environment
SL-KEDSYSL-KESSYSL-KEGSYEN 1.4401 Equiv.600 N/mm2 or moreDegreasingGeneral environmentAnti-rust packingGeneral environment
SH-KEDSYSH-KESSYSH-KEGSYPrecision cleaningClass 1,000*Degassing double packingClass 10**
SHD-KEDSYSHD-KESSYSHD-KEGSYElectrolytic polishing + precision cleaning
*US FED STD 209E, ISO 14644-1 ISO 6 Equiv.
**US FED STD 209E, ISO 14644-1 ISO 4 Equiv.
[ ! ] Products are packed by order quantity. Ex. If the order is for 20 pieces, they are packed in one package (incl. 20 pieces).
[ ! ] See the details of degreasing, precision cleaning, and electrolytic polishing shown at the bottom of the {{{attr34}}}specification table.

Specification Table

Part Number—L
SL-KEDSY8—30
SHD-KEGSY10—40
LTolerance
Up to 15 0
− 0.18
16 to 30 0
− 0.21
31 to 50 0
− 0.25
51 to 80 0
− 0.30
81 to 110 0
− 0.35
Part NumberLH ToleranceTapped M
(d)		For Mounting
Screw		d1hC
TypeBh95 mm Increments
SL-KEDSY
SH-KEDSY
SHD-KEDSY		SL-KESSY
SH-KESSY
SHD-KESSY		SL-KEGSY
SH-KEGSY
SHD-KEGSY		8 0
− 0.036		15 to 807 0
− 0.090		M4
(3.5)		M363.50.25 to 0.40
1015 to 808M5
(4.3)		M47.54.50.40 to 0.60
120
− 0.043		20 to 80
1430 to 909M6
(5.3)		M59.55.5
1530 to 9010
1640 to 100
1840 to 11011 0
− 0.110

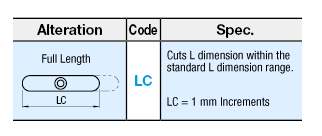

Alterations

Part Number—L (LC)
SL-KEDSY8—LC46
[Clean & Pack]Parallel Keys - With Tapped Counterbore Hole: Related Image
Cleaning Process
·Degreasing (Part Number: SL-□□)

Working Environment: General environment


Alkaline warm pure water


Ultrasonic pure water cleaning
after cleaning with pure water
*3 times
Dry


Anti-rust single packing


·Precision cleaning (Part Number: SH-□□)


Working Environment:
Class 1,000*



Working Environment:
Class 10**


Hydrocarbon cleaning Ro water cleaning

Wash with pure water (10 MΩ·cm) after high-pressure water jet cleaning (Ro water)　
Use pure water (13 MΩ·cm)

Use nitrogen blow


Conducted on a clean bench in a class 10** clean environment

*US FED STD 209E, ISO 14644-1 ISO 6 Equiv.
**US FED STD 209E, ISO 14644-1 ISO 4 Equiv.
·Electrolytic polishing + precision cleaning (Part Number: SHD-□□)


Working Environment:
Class 1,000*



Working Environment:
Class 10**


Hydrocarbon cleaning Ro water cleaning



Electrolytic polishing with an electrolytic polishing layer according to the material

Wash with pure water (10 MΩ·cm) after high-pressure water jet cleaning (Ro water)

Use warm pure water (13 MΩ·cm)



Use nitrogen blow




Conducted on a clean bench in a class 10** clean environment

*US FED STD 209E, ISO 14644-1 ISO 6 Equiv.
**US FED STD 209E, ISO 14644-1 ISO 4 Equiv.
Packaging Example
For degreasing:
(Part Number: SL-□□)
For precision cleaning or electrolytic polishing + precision cleaning:
(Part Number: SH-□□/SHD-□□)

[ ! ] Both the first and second layer packaging are degassed.
Cleaning Effectiveness / Recommended Environment for Use

Cleaning Method

Product Part Number

Packaging Type

Effects Compared to Uncleaned Product

Environment (Standard)

Possible applications

DegreasingSL-□□Anti-rust packingOil removalGeneral environmentRegular assembly process
Post battery assembly process
Precision cleaningSH-□□Degassing double packingOil removal
Dust removal		Clean environment (Class 10 to 1,000*)Battery assembly process
LCD-related post assembly process
In-vehicle camera assembly process
Electrolytic polishing + precision cleaningSHD-□□Degassing double packingOil removal
Dust removal
Outgas reduction		Vacuum environment
Clean environment (Class 10 to 1,000*)		Pre-semiconductor process
Liquid crystal deposition process
Pre-OLED process
*US FED STD 209E, ISO 14644-1 ISO 4 to ISO 6 Equiv.

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...

Plug-in is required for 3D Preview

CAD Download

Data to be displayed
30
45
60
  1. 1
Part Number
SH-KEDSY8-[15-80/5]
SH-KEDSY8-LC[15-80/1]
SH-KEDSY10-[15-80/5]
SH-KEDSY10-LC[15-80/1]
SH-KEDSY12-[20-80/5]
SH-KEDSY12-LC[20-80/1]
SH-KEDSY14-[30-90/5]
SH-KEDSY14-LC[30-90/1]
SH-KEDSY15-[30-90/5]
SH-KEDSY15-LC[30-90/1]
SH-KEDSY16-[40-100/5]
SH-KEDSY16-LC[40-100/1]
SH-KEDSY18-[40-110/5]
SH-KEDSY18-LC[40-110/1]
SH-KEGSY8-[15-80/5]
SH-KEGSY8-LC[15-80/1]
SH-KEGSY10-[15-80/5]
SH-KEGSY10-LC[15-80/1]
SH-KEGSY12-[20-80/5]
SH-KEGSY12-LC[20-80/1]
SH-KEGSY14-[30-90/5]
SH-KEGSY14-LC[30-90/1]
SH-KEGSY15-[30-90/5]
SH-KEGSY15-LC[30-90/1]
SH-KEGSY16-[40-100/5]
SH-KEGSY16-LC[40-100/1]
SH-KEGSY18-[40-110/5]
SH-KEGSY18-LC[40-110/1]
SH-KESSY8-[15-80/5]
SH-KESSY8-LC[15-80/1]
SH-KESSY10-[15-80/5]
SH-KESSY10-LC[15-80/1]
SH-KESSY12-[20-80/5]
SH-KESSY12-LC[20-80/1]
SH-KESSY14-[30-90/5]
SH-KESSY14-LC[30-90/1]
SH-KESSY15-[30-90/5]
SH-KESSY15-LC[30-90/1]
SH-KESSY16-[40-100/5]
SH-KESSY16-LC[40-100/1]
SH-KESSY18-[40-110/5]
SH-KESSY18-LC[40-110/1]
Part NumberMinimum order quantityVolume Discount
Standard
Shipping Days
?
Shape Width
(mm) 		Overall Length
(mm) 		Cleaning Method End Shape Overall Length Change LC
(mm)
1 10 Days Parallel Keys (Straight)815 ～ 80Precision CleaningBoth Sides Square-
1 10 Days Parallel Keys (Straight)8-Precision CleaningBoth Sides Square15 ～ 80
1 10 Days Parallel Keys (Straight)1015 ～ 80Precision CleaningBoth Sides Square-
1 10 Days Parallel Keys (Straight)10-Precision CleaningBoth Sides Square15 ～ 80
1 10 Days Parallel Keys (Straight)1220 ～ 80Precision CleaningBoth Sides Square-
1 10 Days Parallel Keys (Straight)12-Precision CleaningBoth Sides Square20 ～ 80
1 10 Days Parallel Keys (Straight)1430 ～ 90Precision CleaningBoth Sides Square-
1 10 Days Parallel Keys (Straight)14-Precision CleaningBoth Sides Square30 ～ 90
1 10 Days Parallel Keys (Straight)1530 ～ 90Precision CleaningBoth Sides Square-
1 10 Days Parallel Keys (Straight)15-Precision CleaningBoth Sides Square30 ～ 90
1 10 Days Parallel Keys (Straight)1640 ～ 100Precision CleaningBoth Sides Square-
1 10 Days Parallel Keys (Straight)16-Precision CleaningBoth Sides Square40 ～ 100
1 10 Days Parallel Keys (Straight)1840 ～ 110Precision CleaningBoth Sides Square-
1 10 Days Parallel Keys (Straight)18-Precision CleaningBoth Sides Square40 ～ 110
1 10 Days Parallel Keys (Round at One End)815 ～ 80Precision CleaningOne Side Square, One Side Round-
1 10 Days Parallel Keys (Round at One End)8-Precision CleaningOne Side Square, One Side Round15 ～ 80
1 10 Days Parallel Keys (Round at One End)1015 ～ 80Precision CleaningOne Side Square, One Side Round-
1 10 Days Parallel Keys (Round at One End)10-Precision CleaningOne Side Square, One Side Round15 ～ 80
1 10 Days Parallel Keys (Round at One End)1220 ～ 80Precision CleaningOne Side Square, One Side Round-
1 10 Days Parallel Keys (Round at One End)12-Precision CleaningOne Side Square, One Side Round20 ～ 80
1 10 Days Parallel Keys (Round at One End)1430 ～ 90Precision CleaningOne Side Square, One Side Round-
1 10 Days Parallel Keys (Round at One End)14-Precision CleaningOne Side Square, One Side Round30 ～ 90
1 10 Days Parallel Keys (Round at One End)1530 ～ 90Precision CleaningOne Side Square, One Side Round-
1 10 Days Parallel Keys (Round at One End)15-Precision CleaningOne Side Square, One Side Round30 ～ 90
1 10 Days Parallel Keys (Round at One End)1640 ～ 100Precision CleaningOne Side Square, One Side Round-
1 10 Days Parallel Keys (Round at One End)16-Precision CleaningOne Side Square, One Side Round40 ～ 100
1 10 Days Parallel Keys (Round at One End)1840 ～ 110Precision CleaningOne Side Square, One Side Round-
1 10 Days Parallel Keys (Round at One End)18-Precision CleaningOne Side Square, One Side Round40 ～ 110
1 10 Days Parallel Keys (Round at Both Ends)815 ～ 80Precision CleaningBoth Sides Round-
1 10 Days Parallel Keys (Round at Both Ends)8-Precision CleaningBoth Sides Round15 ～ 80
1 10 Days Parallel Keys (Round at Both Ends)1015 ～ 80Precision CleaningBoth Sides Round-
1 10 Days Parallel Keys (Round at Both Ends)10-Precision CleaningBoth Sides Round15 ～ 80
1 10 Days Parallel Keys (Round at Both Ends)1220 ～ 80Precision CleaningBoth Sides Round-
1 10 Days Parallel Keys (Round at Both Ends)12-Precision CleaningBoth Sides Round20 ～ 80
1 10 Days Parallel Keys (Round at Both Ends)1430 ～ 90Precision CleaningBoth Sides Round-
1 10 Days Parallel Keys (Round at Both Ends)14-Precision CleaningBoth Sides Round30 ～ 90
1 10 Days Parallel Keys (Round at Both Ends)1530 ～ 90Precision CleaningBoth Sides Round-
1 10 Days Parallel Keys (Round at Both Ends)15-Precision CleaningBoth Sides Round30 ～ 90
1 10 Days Parallel Keys (Round at Both Ends)1640 ～ 100Precision CleaningBoth Sides Round-
1 10 Days Parallel Keys (Round at Both Ends)16-Precision CleaningBoth Sides Round40 ～ 100
1 10 Days Parallel Keys (Round at Both Ends)1840 ～ 110Precision CleaningBoth Sides Round-
1 10 Days Parallel Keys (Round at Both Ends)18-Precision CleaningBoth Sides Round40 ～ 110
